DS564F2 19
CS5341
Confidential Draft
3/11/08
4.8 Capacitor Size on the Reference Pin (FILT+)
The CS5341 requires an external capacitance on the internal reference voltage pin, FILT+. The size of this
decoupling capacitor will affect the low frequency distortion performance as shown in
Figure 22 , with larger
capacitor values used to optimize low frequency distortion performance. This plot was taken using the
CDB5341 evaluation platform, with the device running in Single-Speed Mode and VA=VD=VL=5 V.

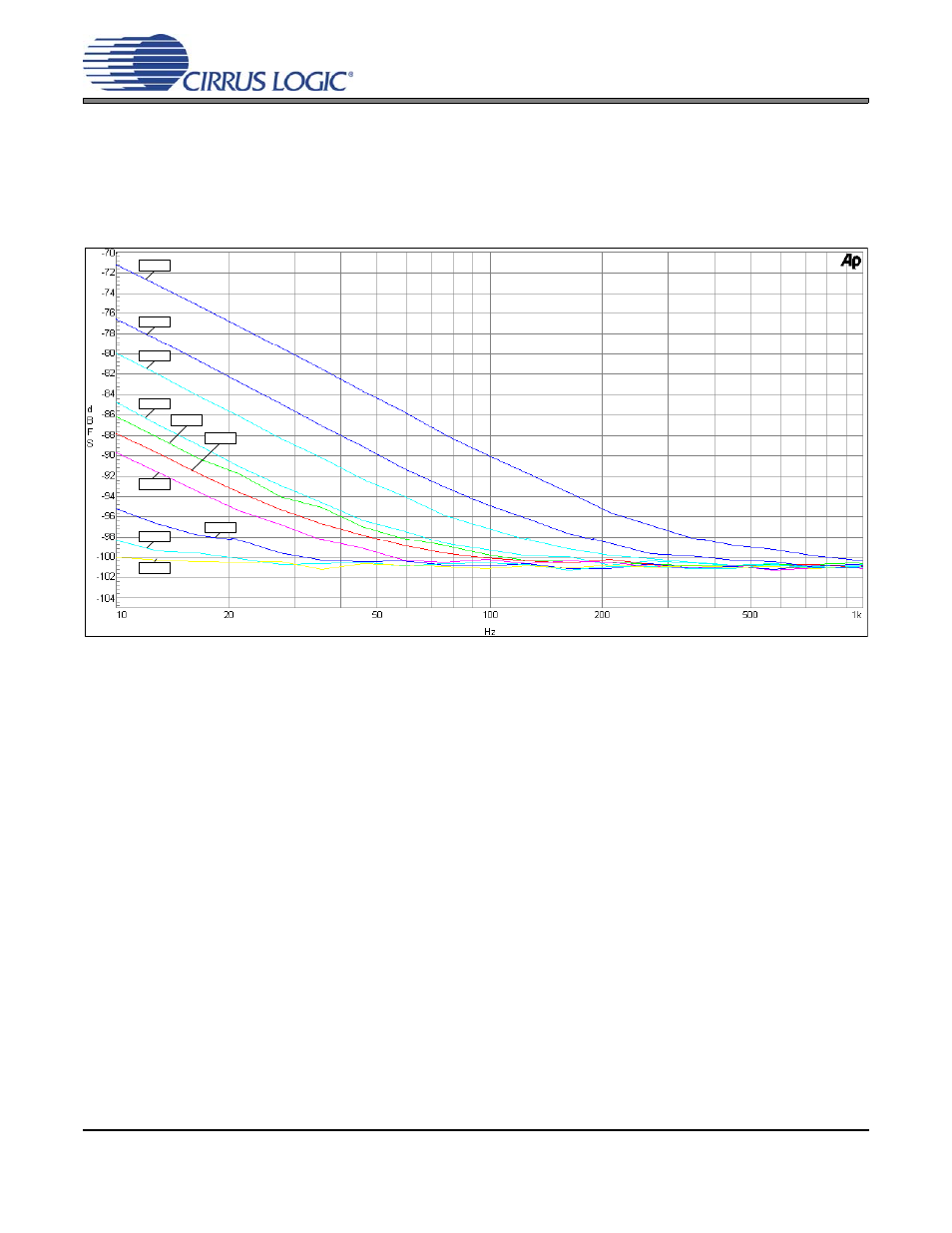

Figure 22. CS5341 THD+N versus Frequency
47 uF
100 uF
22 uF
10 uF
6.8 uF
4.7 uF
3.3 uF
2.2 uF
1 uF
5.6 uF
