Copyright

© Cirrus Logic, Inc. 2008

(All Rights Reserved)

http://www.cirrus.com

105 dB, 192 kHz, Multi-Bit Audio A/D Converter

Features



Advanced Multi-bit Delta-Sigma Architecture



24-bit Conversion



Supports All Audio Sample Rates Including
192 kHz



105 dB Dynamic Range at 5 V



-98 dB THD+N



90 mW Power Consumption



High-Pass Filter to Remove DC Offsets



Analog/Digital Core Supplies from 3.3 V to 5 V



Supports Logic Levels between 1.8 V and 5 V



Auto-Detect Mode Selection in Slave Mode



Auto-Detect MCLK Divider

General Description

The CS5341 is a complete analog-to-digital converter
for digital audio systems. It performs sampling, analog-
to-digital conversion, and anti-alias filtering, generating
24-bit values for both left and right inputs in serial form
at sample rates up to 200 kHz per channel.

The CS5341 uses a 5th-order, multi-bit Delta-Sigma
modulator followed by digital filtering and decimation,
which removes the need for an external anti-alias filter.

The CS5341 is available in a 16-pin TSSOP package
for Commercial (-10° to +70° C) and Automotive grades
(-40° to +85° C). The CDB5341 Customer Demonstra-
tion Board is also available for device evaluation and
implementation suggestions. Please refer to

“Ordering

Information” on page 22

for complete ordering

information.

The CS5341 is ideal for audio systems requiring wide
dynamic range, negligible distortion and low noise, such
as set-top boxes, DVD-karaoke players, DVD record-
ers, A/V receivers, and automotive applications.

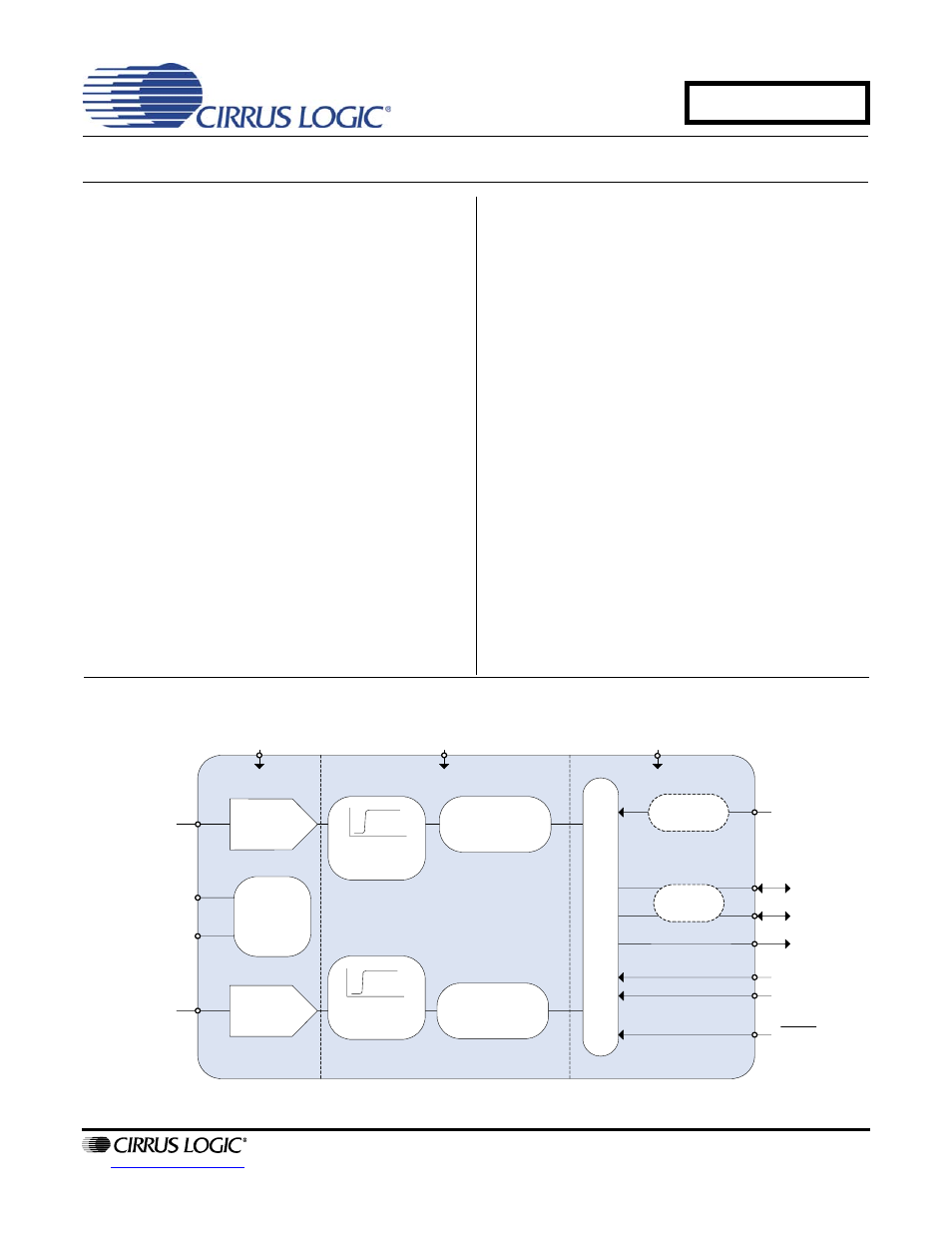

High-Pass

Filter

Low-Latency

Digital Filters

High-Pass

Filter

Se

ri

al

P

o

rt

VA

3.3 V to 5 V

Internal

Reference

Voltages

Switch-Cap
ADC

VD

3.3 V to 5 V

VL

1.8 V to 5 V

Auto-detect

MCLK Divider

Slave Mode

Auto-detect

Master Clock

Reset

Single-Ended

Analog Input

Low-Latency

Digital Filters

Switch-Cap
ADC

Mode
Configuration

Single-Ended

Analog Input

SCLK

LRCK

SDOUT

M0

M1

FILT+

VQ

AINR

AINL

March '08

DS564F2

Confidential Draft

3/11/08

CS5341
