Chapter 5
Using DSP Composer
™
with CRD48L10-4in4out
The CRD48L10-4in4out can be controlled using the DSP Composer
™
application through the CDB-MCU-DEBUG board.
A detailed description of how to connect to the PC and configure the CDB-MCU-DEBUG for use with DSP Composer can
be found in the CDB-MCU-DEBUG Controller User's Manual.
The CDB-MCU-DEBUG must be connected to JP2 as shown in
.

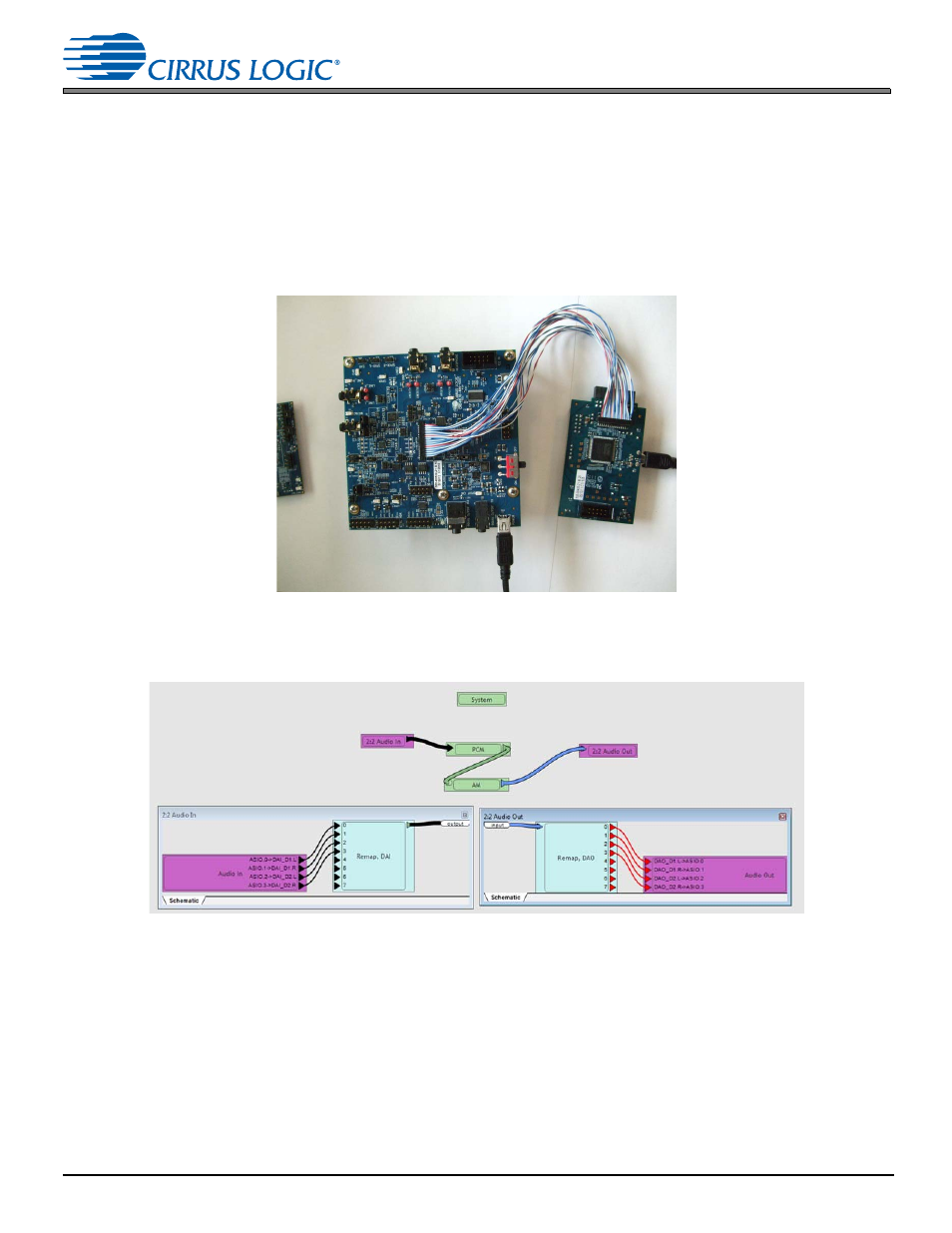

Figure 5-1. CDB-MCU-DEBUG Connected to JP2 of CRD48L10-4in4out
The CRD48L10-4in4out has three .cpa starter projects:
•
An analog pass-thru project is shown in
Figure 5-2. Analog Pass-thru
•
An S/PDIF-only pass-thru project is shown in
