3.1 Cirrus Logic 32-bit DSP Core

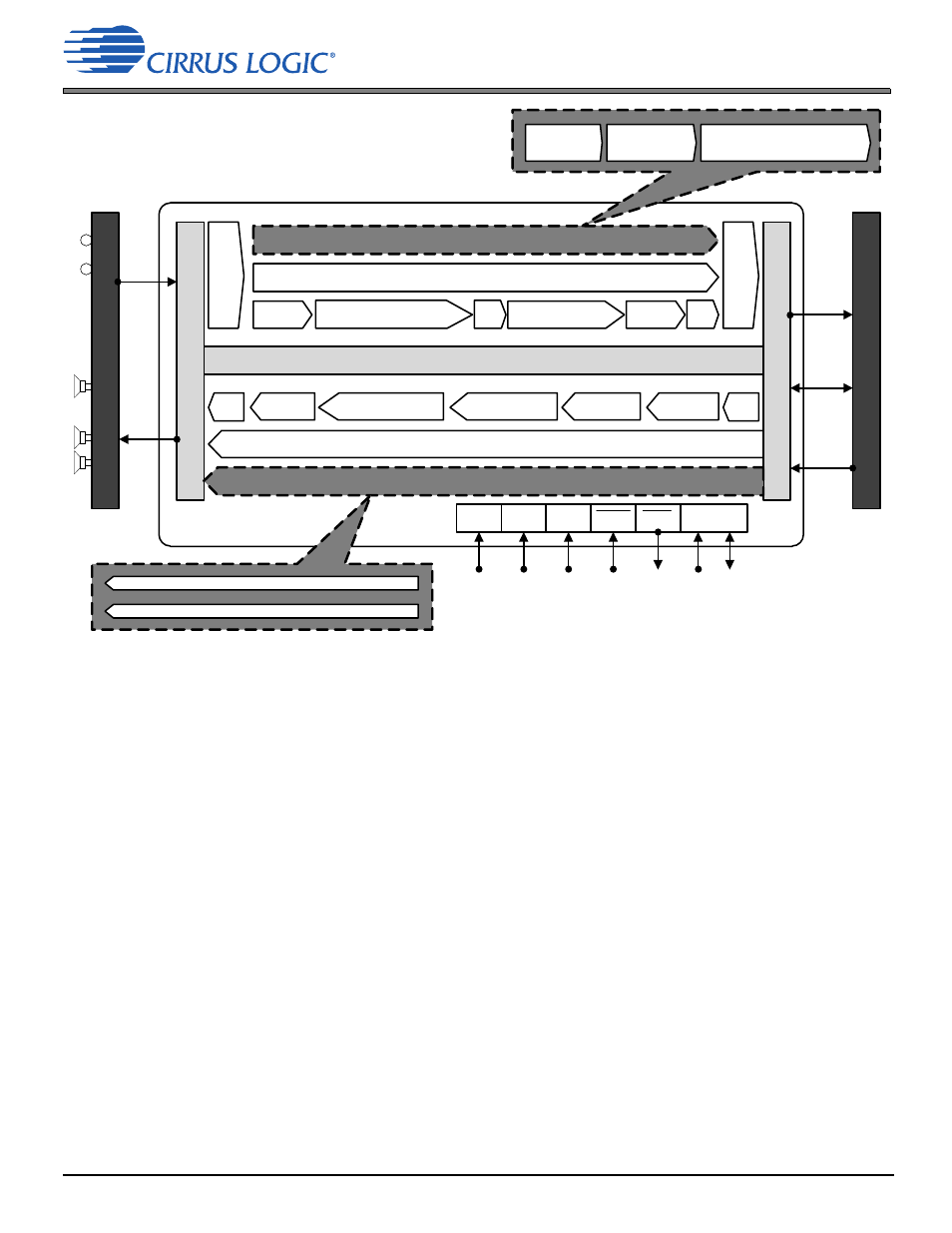

Figure 3-2. CS48LV13 Block Diagram
3.1 Cirrus Logic 32-bit DSP Core
The core is a high-performance, 32-bit, fixed-point DSP that is capable of performing two multiply-and-accumulate (MAC)
operations per clock cycle. The core has eight 72-bit accumulators, four X- and four Y-data registers, and 12 index
registers. It can operate up to 130 MHz, depending on mode and concurrency requirements, but it may also operate at low
speed to support specialized low-power modes, such as always-on voice wake.
The DSP core is coupled to a flexible DMA engine. The DMA engine can move data between peripherals such as the
multi-channel serial audio port, or any DSP core memory, without the intervention of the DSP. The DMA engine off-loads
data move instructions from the DSP core, leaving more MIPS available for signal-processing instructions.
3.2 Processing Groups
Providing consistent high-quality Tx and Rx voice streams in constantly changing environments requires a complex data
flow with constant interaction between various functional modules. While the actual data flow is more complex and not
linear, the architecture can be approximated as a set of in-line processing groups or chains that operate in different modes
depending on the current use model as follows.
CS48LV12:
1. Tx Voice DSP Chain
2. Rx Voice DSP Chain
3. Voice DSP Control and Detection
4. Audio Playback DSP Chain
