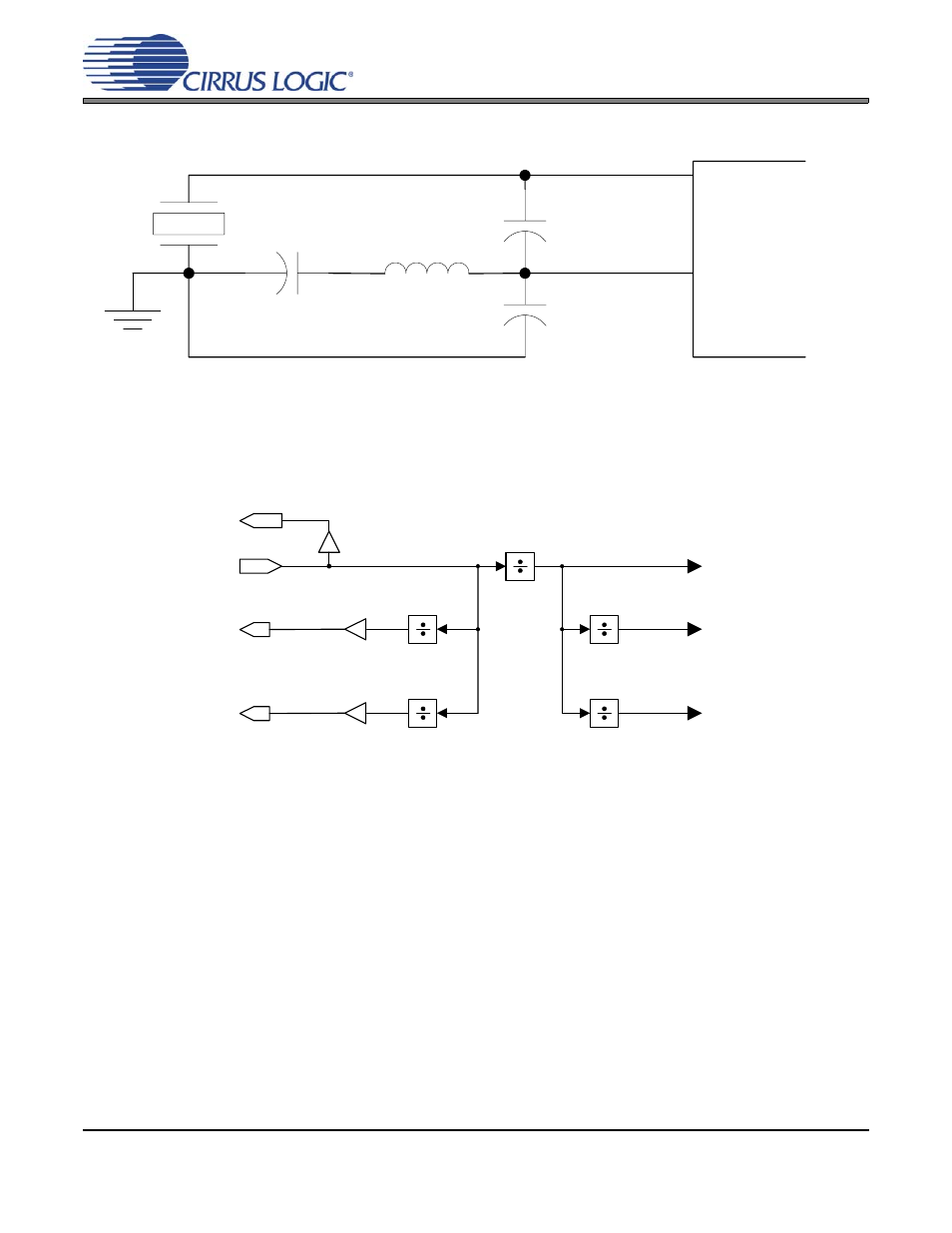

Figure 15. 3rd overtone crystal configuration, Figure 16. cs44600 internal clock generation – Cirrus Logic CS44600 User Manual
Page 25
DS633F1
25
CS44600
Appropriate clock dividers for each functional block and a programmable divider to support an output for
switched-mode power supply synchronization are provided. The clock generation for the CS44600 is
shown in the
Figure 16
.
Y1
L1
C3
C1
C2
XTI
XTO
Figure 15. 3
rd
Overtone Crystal Configuration
PWM_MCLK
SRC_MCLK
XTO
XTI
MOD_MCLK
SYS_CLK
PS_SYNC
PWM Master
Clock Divider
System Clock
Divider
Power Supply
Sync. Divider
PWM Modulator
Clock Divider
Sample Rate Converter
Clock Divider
Figure 16. CS44600 Internal Clock Generation
