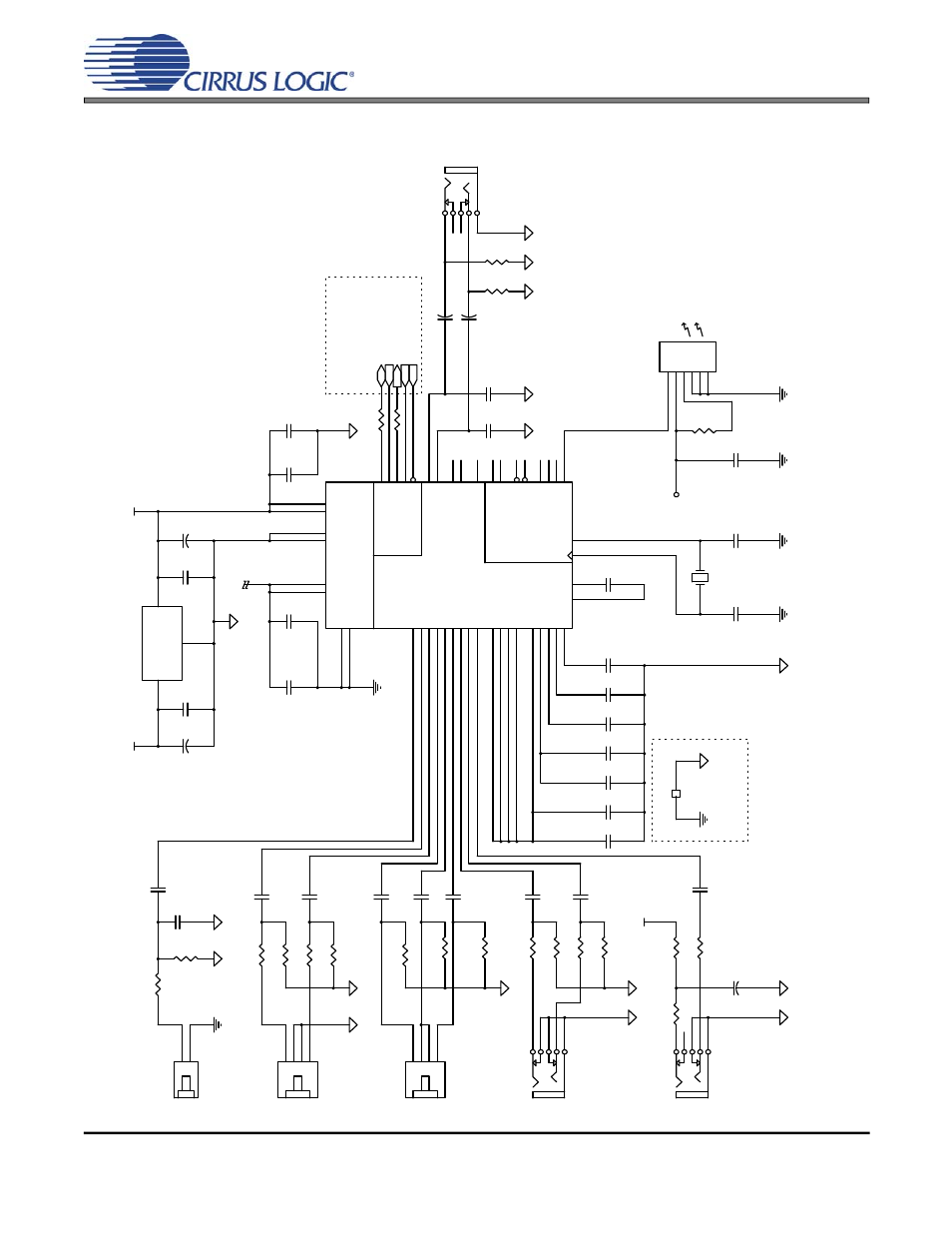

11. REFERENCE DESIGN
R21 6.8K
R16
6.8K
C33 22pF NPO
C34 22pF NPO
C7
1uF Y5V
C10 0.1uF X7R
J1 2X1HDR-SN/PB
1 2
C20
1uF Y5V
R14
6.8K
C11 0.1uF X7R
C4
0.1uF X7R
R1
47K
R6
6.8K
C8 0.1uF X7R
J4
PHONO-1/8
4 3 5 2 1
C5 0.1uF X7R
C23 0.1uF X7R
C22 1uF Y5V
R4
6.8K
J5 PHONO-1/8
4 3 5 2 1
C9 0.1uF X7R
C24 1uF Y5V
C3
10uF ELEC
+
R8
47
R3
6.8K
C18
1000pF
NPO
Y1
24.576 MHz
J3 4X1HDR-AU
1 2 3 4
R10
100K
C21
1uF Y5V
C6
10uF ELEC
+
C12
1uF Y5V
J2 4X1HDR-AU
1 2 3 4
R9
100K
C31 0.1uF X7R
C19
1000pF
NPO
U3
CS4299
LINE_OUT_R
36
MONO_OUT
37
AVdd2
38
ALT_LINE_OUT_L
39
nc7
44
ALT_LINE_OUT_R
41
AVss2
42
nc6
43
nc5
40
FLTO
34
FLTI 33
FLT3D
32
BCFG
31
DVdd1
1
XTL_IN 2
XTL_OUT
3
DVss1
4
SDATA_OUT
5
BIT_CLK
6
DVss2
7
SDATA_IN
8
SYNC
10
DVdd2
9
RESET#
11
PC_BEEP
12
PHONE
13
AUX_L
14
AUX_R
15
VIDEO_L
16
VIDEO_R
17
CD_L
18
CD_GND
19
CD_R
20
MIC1
21
MIC2
22
LINE_IN_L
23
LINE_IN_R
24
AVdd1
25
AVss1
26
REFFLT
27
Vrefout
28
AFLT1
29
AFLT2
30
S/PDIF_OUT
48
EAPD
47
ID1#
46
ID0#
45
LINE_OUT_L
35
R5
6.8K
J6
TOTX-173
1 2 3 4 5 6
R15
6.8K
C30
1uF Y5V
C13
1uF Y5V
R7
47
C2 2700pF X7R
60 mil trace GND_TIE
C29
1000pF
NPO
R11
100K
C1
0.1uF X7R
C28 0.01uF X7R
U1
MC78M05ACDT
OUT
3
GND
2
IN
1
J7 PHONO-1/8
4 3 5 2 1
C27
1000pF
NPO
C14
1uF Y5V
R17
6.8K
C26
1000pF
NPO
R20
100
R19
1.5K
C25 0.1uF X7R
R18
2.2K
C15
10uF ELEC
+
C17
10uF ELEC
+
C32 10uF ELEC
+
R2 6.8K
R12 220K
C16
1uF Y5V
R13 220K
AGND
AGND
AGND
AGND
DGND
AGND
AGND
DGND
AGND
AGND
DGND
+5VA
+12V
AGND
AGND
+3.3VD
AGND
AGND
DGND
AGND
AGND
AGND
AGND
AGND
AGND
+5VA
+5VD
DGND
DGND
DGND
ABITCLK ASDIN ASYNC ASDOUT ARST#
PC SPEAKER IN CD IN MIC IN AUX IN LINE IN
LINE OUT
Tie at one point only under the codec
