CS4299-BQ
13
3. AC LINK FRAME DEFINITION
The AC-link is a bidirectional serial port with data
organized into frames consisting of one 16-bit and
twelve 20-bit time-division multiplexed slots. The
first slot, called the tag slot, contains bits indicating
if the CS4299-BQ is ready to receive data (input
frame) and which, if any, other slots contain valid
data. Slots 1 through 12 contain audio or con-
trol/status data. Both the serial data output and in-
put frames are defined from the controller
perspective, not from the CS4299-BQ perspective.
The controller synchronizes the beginning of a
frame with the assertion of the SYNC signal.
Figure 9 shows the position of each bit location
within the frame. The first bit position in a new se-
rial data frame is F0 and the last bit position in the
serial data frame is F255. When SYNC goes active
(high) and is sampled active by the CS4299-BQ (on
the falling edge of BIT_CLK), both devices are
synchronized to a new serial data frame. The data
on the SDATA_OUT pin at this clock edge is the
final bit of the previous frame’s serial data. On the
next rising edge of BIT_CLK, the first bit of Slot 0
is driven by the controller on the SDATA_OUT
pin. On the next falling edge of BIT_CLK, the
CS4299-BQ latches this data in, as the first bit of
the frame.
20.8
µs
(48 kHz)
Tag Phase Data Phase
12.288 MHz
81.4 ns
SYNC
BIT_CLK
SDATA_OUT
SDATA_IN
F0 F1 F2 F16 F15 F14 F13 F12 F35 F56 F76
D19
F255
Valid
Frame
Slot 1
Valid
0 R/W 0 WD15
F36 F57
D19 D18 D19
D19 D18 D19 RD15 0 0 0 0
F0 F1 F2 F16 F15 F14 F13 F12 F35 F56 F76 F255 F36 F57
F255
F255
0 0
GPIO
INT
F96
F96
D19
Slot 0 Slot 1 Slot 2 Slot 3 Slot 4 Slots 5-12
Slot 2
Valid
Slot 1
Valid
Slot 2
Valid
Codec
Ready
0
Slot 12
Valid
Codec
ID1
Codec
ID0
Slot 12
Valid
GPIO
INT
Bit Frame Position:
Bit Frame Position:

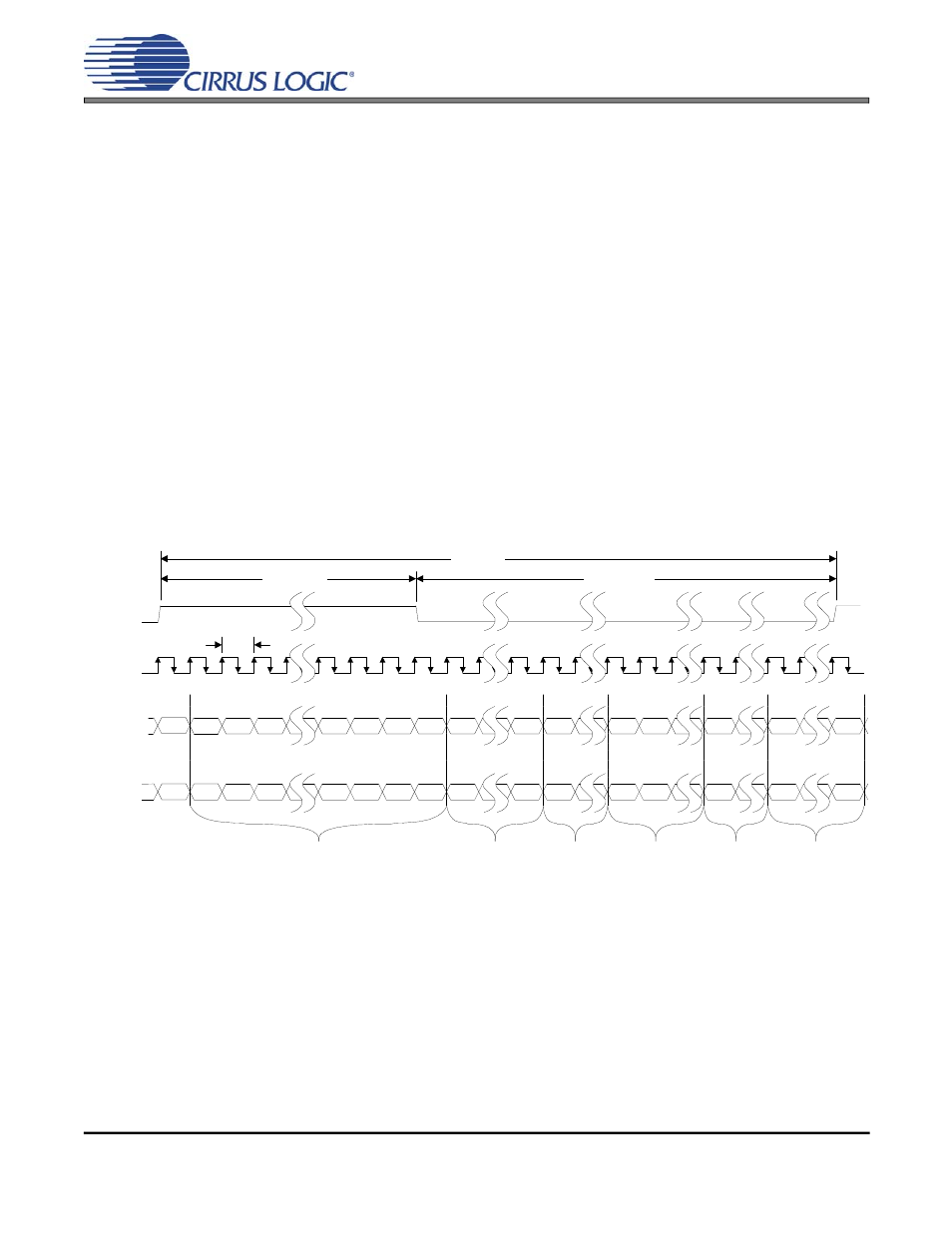

Figure 9. AC-link Input and Output Framing
DS319-BQPP2 13
