CS4299-BQ

Features

l

AC ’97 2.1 Compatible

l

Industry Leading Mixed Signal Technology

l

20-bit Stereo Digital-to-Analog Converters

l

18-bit Stereo Analog-to-Digital Converters

l

Sample Rate Converters

l

Four Analog Line-level Stereo Inputs for
LINE_IN, CD, VIDEO, and AUX

l

Two Analog Line-level Mono Inputs for
Modem and Internal PC Beep

l

Dual Stereo Line-level Outputs for
LINE_OUT and ALT_LINE_OUT

l

Dual Microphone Inputs

l

High Quality Pseudo-Differential CD Input

l

Extensive Power Management Support

l

Meets or Exceeds the Microsoft

®

PC 99

Audio Performance Requirements

l

S/PDIF Digital Audio Output

l

CrystalClear

®

3D Stereo Enhancement

l

Industrial Temperature Range

Description

The CS4299-BQ is an AC ’97 2.1 compatible stereo au-
dio codec designed for PC multimedia systems. Using
the industry leading CrystalClear

®

delta-sigma and

mixed signal technology, the CS4299-BQ enables the
design of PC 99-compliant desktop, portable, and enter-
tainment PCs.

Coupling the CS4299-BQ with a PCI audio accelerator
or core logic supporting the AC ’97 interface, implements
a cost effective, superior quality, audio solution. The
CS4299-BQ surpasses PC 99 and AC ’97 2.1 audio
quality standards.

ORDERING INFO

CS4299-BQZ lead-free

48-pin LQFP 9x9x1.4 mm

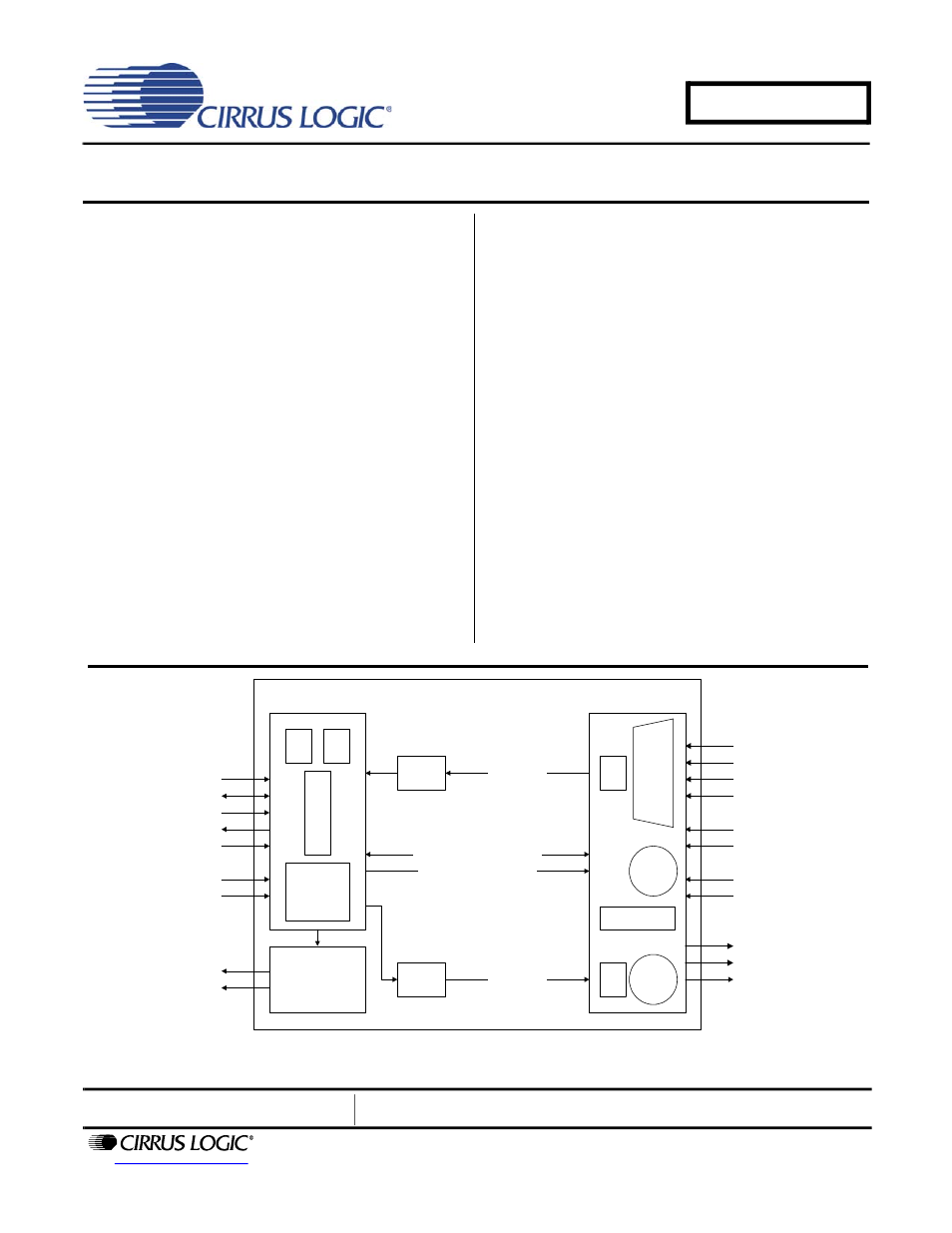

AC '97

REGISTERS

LINE

CD

AUX

VIDEO

MIC1

MIC2

PHONE

PC_BEEP

LINE_OUT

ALT_LINE_OUT

MONO_OUT

ANALOG INPUT MUX

AND OUTPUT MIXER

AC-LINK AND AC '97

REGISTERS

PCM_DATA

GAIN / MUTE CONTROLS

INPUT

MUX

Σ

OUTPUT

MIXER

MIXER / MUX SELECTS

AC-

LINK

PWR
MGT

TEST

SYNC

BIT_CLK

SDATA_OUT

SDATA_IN

RESET#

PCM_DATA

SRC

SRC

ID0#

ID1#

EAPD, S/PDIF

EAPD

SPDIF_OUT

18 bit

ADC

20 bit

DAC

3D Stereo

Enhancement

Σ

INPUT

MIXER

CrystalClear

®

SoundFusion

Audio Codec ’97
