12 WIKA operating instructions calibration system, model BCS10
14051046.01 10/2012 GB/D/F/E
GB
4. Design and function

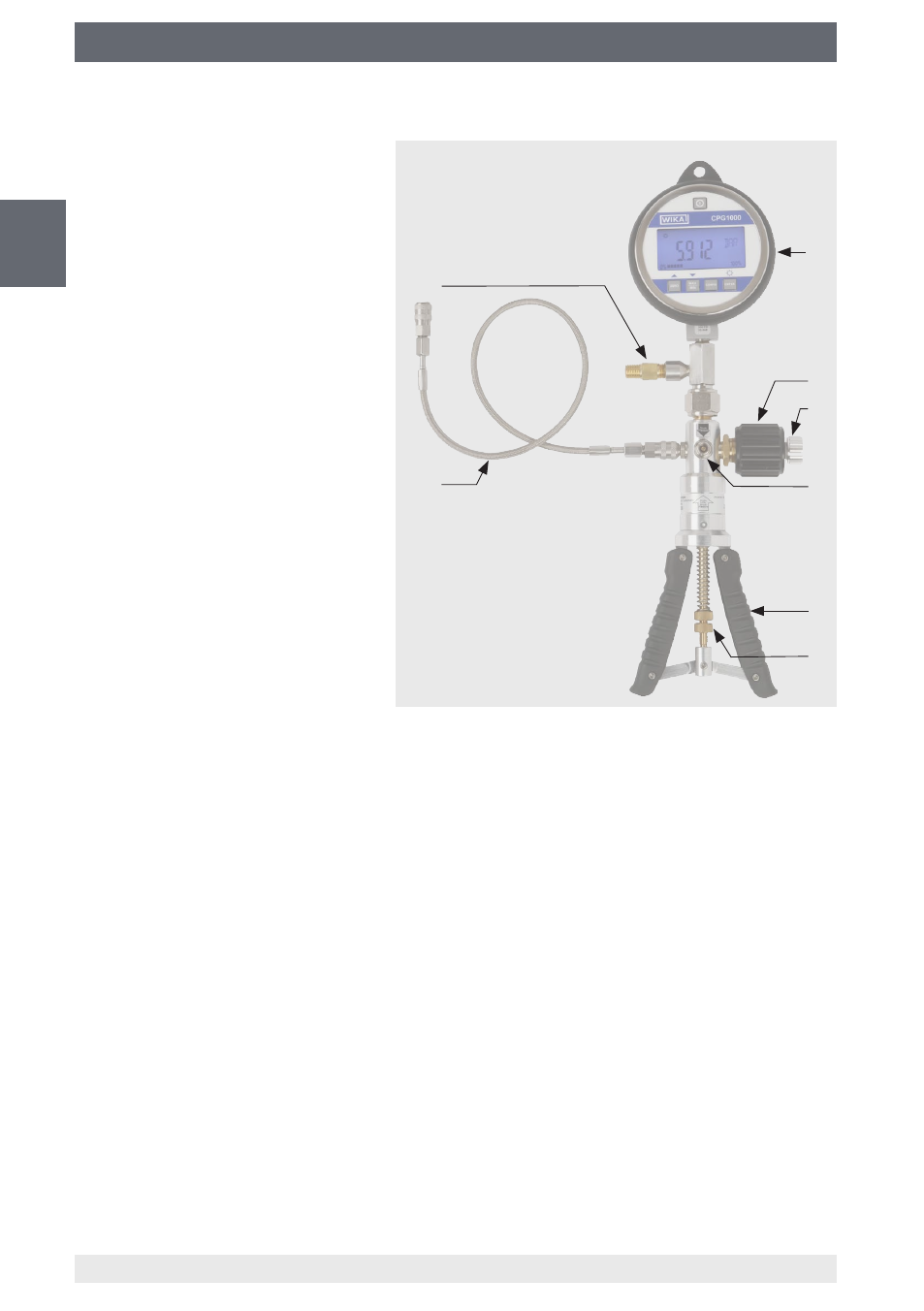

4.3 Design of the calibration system
1) Digital pressure gauge
2) Fine-adjustment valve
3) Pressure relief valve
4) Switching between pressure or
vacuum generation
5) Pump handles
6) Adjustable knurled nut for
setting the pump performance
(overpressure protection)
7) Metal protection hose for
connecting the test item, with
quick-acting coupling on both
sides, length 2 m
8) Adjustable overpressure valve
4.4 Battery life time
The battery life time amounts to approx. 1.500 hours of operation (without backlighting).
In the upper left corner of the digital indicator you will find a symbol of the battery capac-
ity. This symbol appears when the battery voltage is too low.
For instructions on batteries see chapter 3 "Specifications".
For battery replacement see chapter 6.8 "Battery replacement".
4.5 Serial interface
The digital pressure gauge has as standard a serial interface. The serial data transmis-
sion can be used for configuration, calibration and transmission of measured values of
the measuring instrument.
1
8
2
3
4
5
6
7
