3 Product description
3 .1 Structure
The scope of delivery encompasses:
l External indicating and adjustment unit
l Cable entry M20x1 for the sensor
l Documentation
-
this operating instructions manual
-
Operating instructions manual "Indicating and adjustment
module"
-
Ex-specific "Safety instructions" (with Ex versions)
-
if necessary, further certificates
The external indicating and adjustment unit consists of the following
components:
l Housing cover with integrated indicating and adjustment module
l Housing with electronics
l Mounting element, depending on the order specification: mounting
plate for wall mounting, clip for carrier rail mounting or strap for
tube mounting
The components are available in different versions.
3
2
1

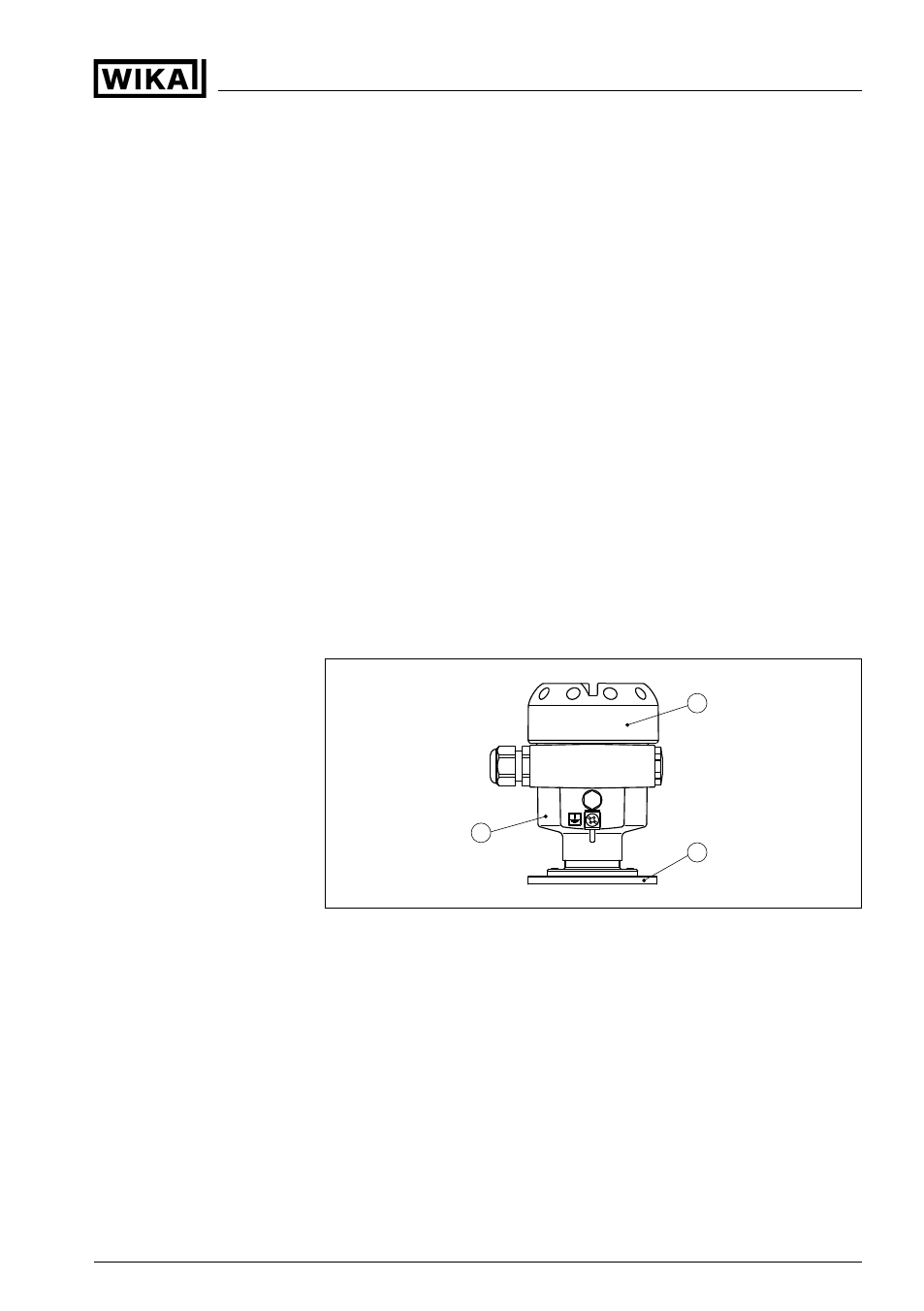

Fig. 1: External indicating and adjustment unit with Alu housing and mounting
plate for wall mounting
1 Housing cover with integrated indicating and adjustment module
2 Housing with electronics
3 Mounting plate
The type label contains the most important data for identification and
use of the instrument:
l Article number
l Serial number
l Technical data
l Article numbers, documentation
Scope of delivery
Constituent parts
Type label
External indicating and adjustment unit 7
