4 Mounting
4 .1 General instructions
The external indicating and adjustment unit functions in any installation
position. The housing can be rotated by 330° without the use of any
tools.
Use the recommended cables (see chapter "Connecting to power
supply") and tighten the cable gland.
You can give your instrument additional protection against moisture
penetration by leading the connection cable downward in front of the
cable entry. Rain and condensation water can thus drain off. This
applies mainly to outdoor mounting as well as installation in areas
where high humidity is expected (e.g. through cleaning processes) or
on cooled or heated vessels.

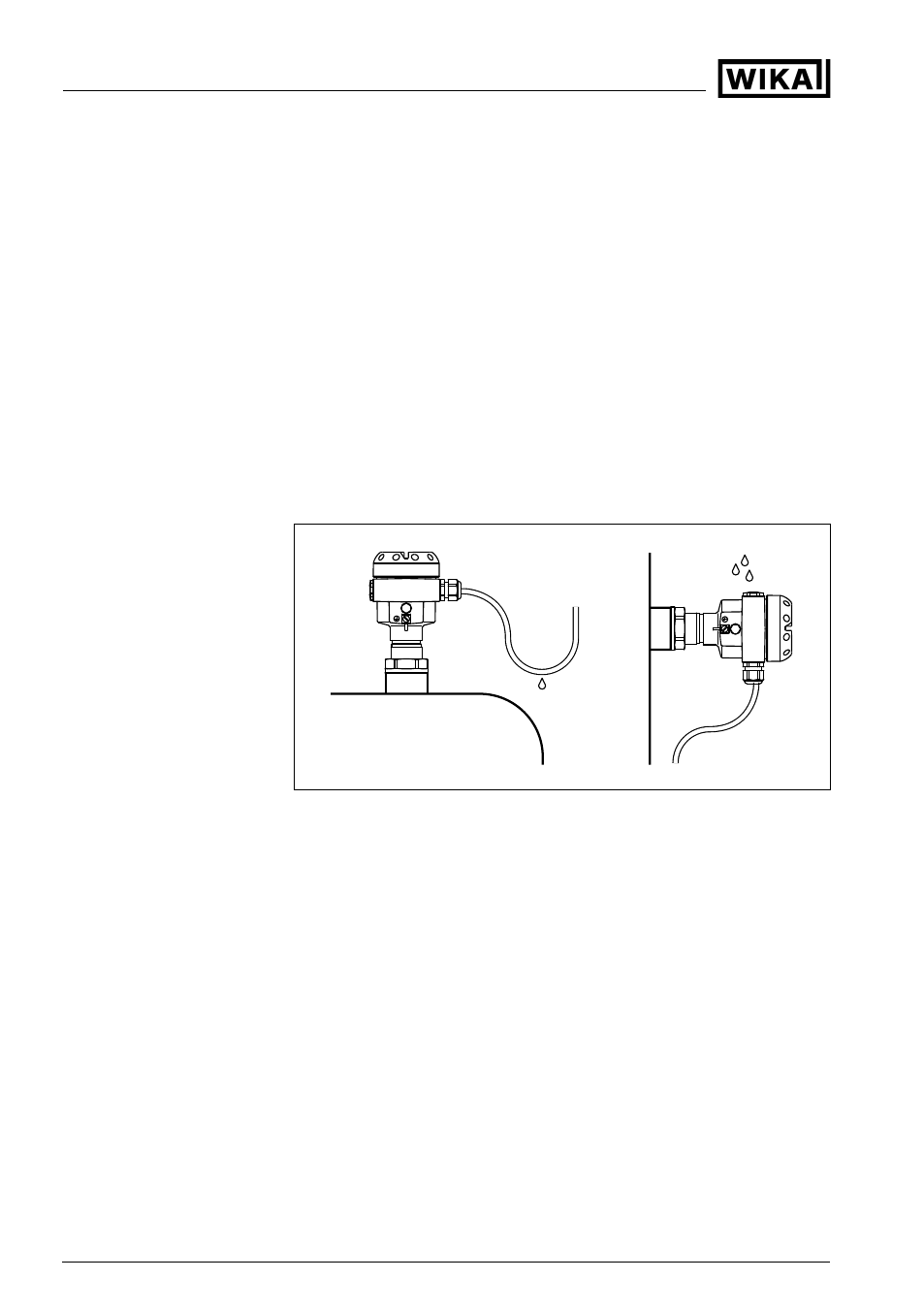

Fig. 3: Measures against moisture penetration
4 .2 Mounting instructions
The external indicating and adjustment module for wall mounting is
supplied with a mounting socket.
Mounting position
Moisture
Wall mounting
