Page 15
12 Screw the housing cover on
The electrical connection is finished.
5
.3 Wiring plan
Display
I2C
5
6
7
8
1
2
3

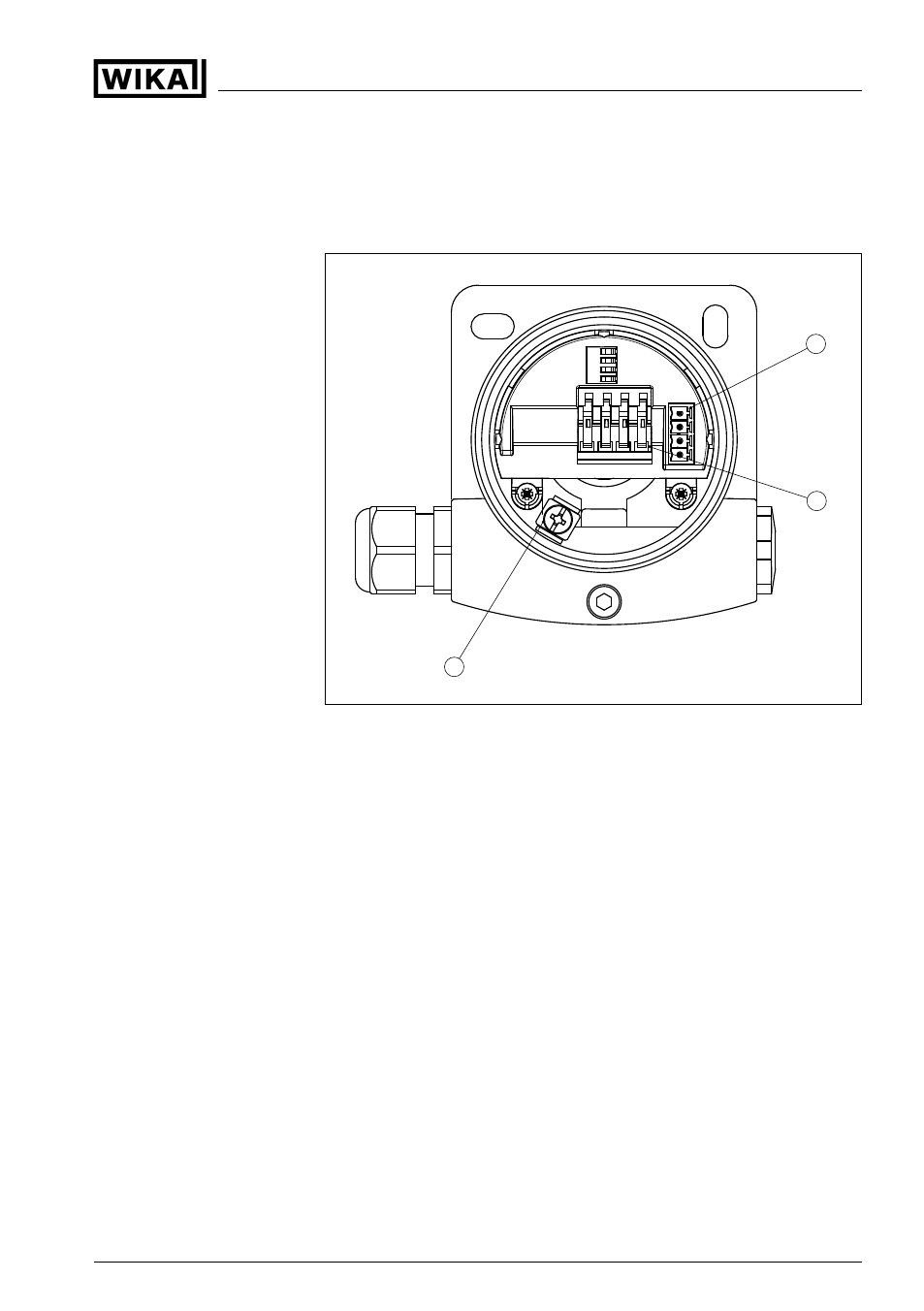

Fig. 8: Electronics and connection compartment
1
Spring-loaded terminals for connection to the sensor
2
Plug connector for service interface
3
Ground terminal for connection of the cable screen
1
)
1)
Connect screen here. Connect ground terminal on the outside of the
housing as prescribed. The two terminals are galvanically connected.
Electronics and connec-
tion compartment
External indicating and adjustment unit
15
5 Connecting to power supply
31550
-
EN
-100726
