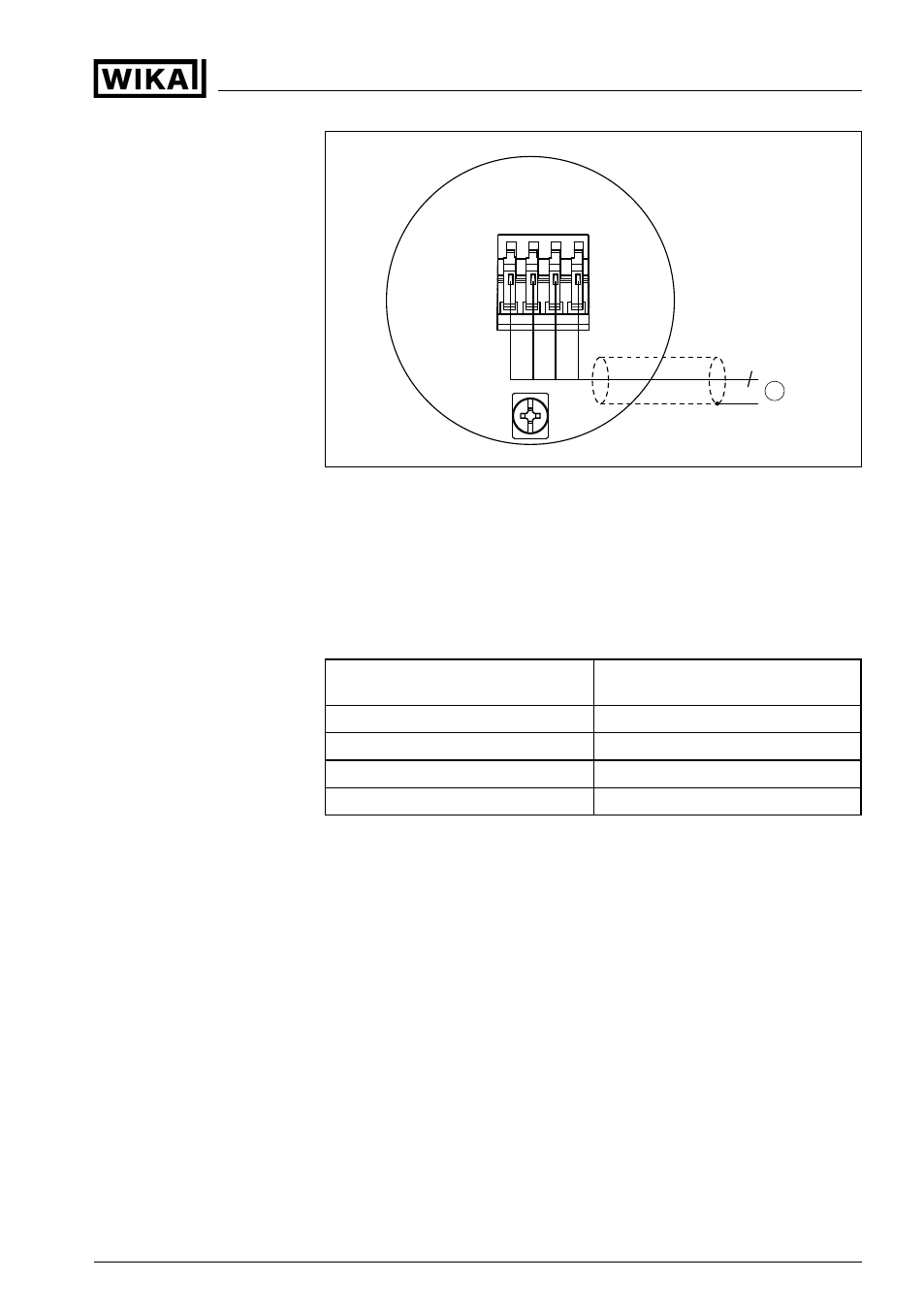

Fig. 10: Wiring plan external indicating and adjustment unit for PA/FF sensors
1
To the sensor
Connection via confectioned cable with 5-pole socket M12 x 1
The connection between the external indicating and adjustment unit
and sensor with 5-pole plug M12 x 1 is carried out according to the
following chart. The specification of the wire colours refers to the
confectioned special cable supplied with this sensor version.
3)
Wire colour
External indicating and adjustment
unit
Black
Terminal 5
White
Terminal 6
Blue
Terminal 7
Brown
Terminal 8
3)
Plug M12 x 1, optional with single and double chamber housing.
Wiring plan (PA/FF sen-
sors)
External indicating and adjustment unit
17
