62mm (2 7 /
16
")
12mm
( 15 /
32
")
7mm (
9
/ 32
")
85mm (3 11 /
32
")

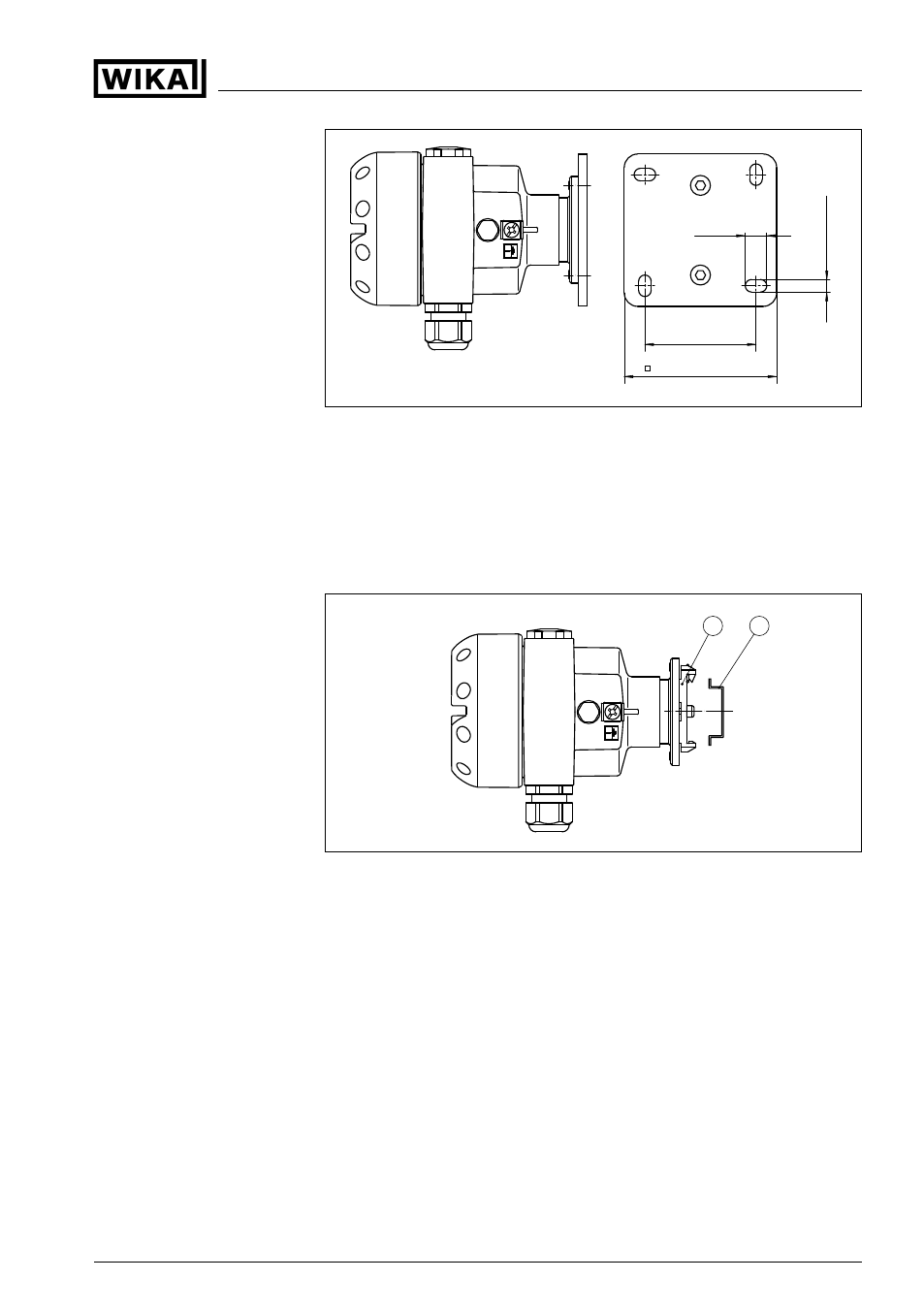

Fig. 4: External indication and adjustment unit for wall mounting. Bottom view of
the mounting plate.
1 Drilling dimensions
The external indicating and adjustment module for mounting on carrier
rail is supplied with a mounting adapter.
1 2
Fig. 5: External indicating and adjustment unit for carrier rail mounting
1 Adapter plate with screw M4 x 6
2 Carrier rail
The external indicating and adjustment module for pipe mounting is
supplied with an measuring instrument holder as unassembled
mounting accessory.
Carrier rail mounting
Tube mounting
External indicating and adjustment unit 11
