Setting the DIP-switches on the TP-185

Setting the DIP-switches on the TP-185

The DIP-switches on the TP-185 perform the following functions:

• RS-485 termination
• Reply enable/disable
• Reply machine number
• Baud rate
• Hardware/software mode

Moving a DIP-switch down turns the switch on, moving it up turns the switch off.

Note: Changing any DIP-switch requires that you cycle power on the TP-185

7.1.1

Setting the RS-485 Bus Termination

The DIP-switch sets the RS-485 bus termination. Only the first and last physical
device on the RS-485 bus must be terminated, all other devices must be
un-terminated.

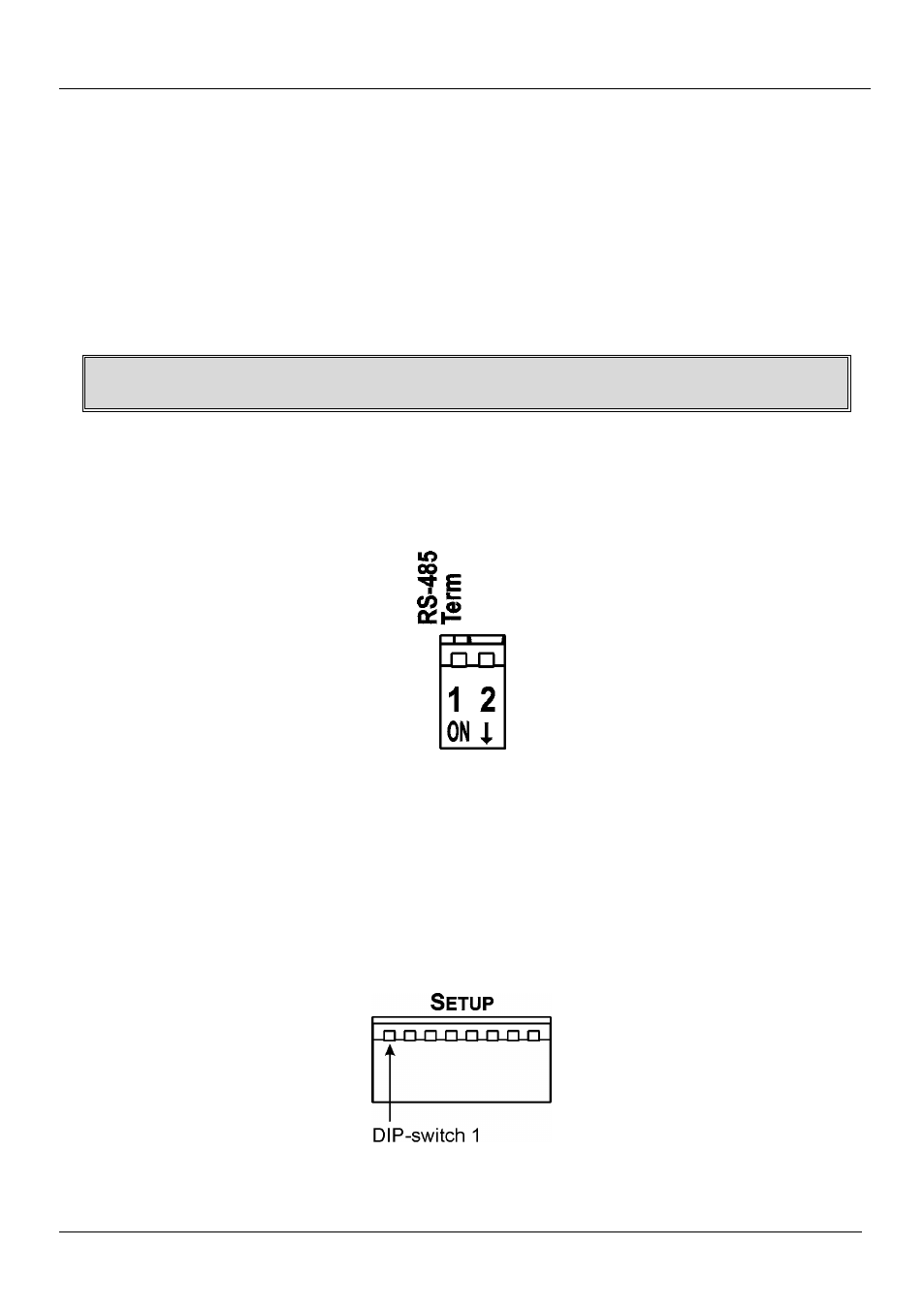

Figure 4: TP-185 DIP-switch RS-485 Termination

When DIP-switch 1 is:

• OFF, the unit is un-terminated (default)
• ON, the unit is terminated

Note: DIP-switch 2 is not used.

7.1.2

Enabling and Disabling the Reply Feature

DIP-switch 1 enables and disables the Reply feature.

Figure 5: TP-185 Reply Enable and Disable DIP-switch
