4 TP-133/TP-134 - Defining the TP-133/TP-134 Line Transmitter and Receiver
4 Defining the TP-133/TP-134 Line Transmitter
and Receiver
This section defines the:
• TP-133 Automatic PC/Audio/Data Line Transmitter (see Section 4.1
• TP-134 Automatic PC/Audio/Data Line Receiver (see
)
Section 4.2
4.1 Defining the TP-133 Automatic PC/Audio/Data Line
Transmitter
)
The TP-133 is a high-performance transmitter that accepts the following signals:
• Computer graphics video
• Balanced and unbalanced stereo audio
• RS-232 data
The TP-133 encodes the signals and transmits them over TP cable to a TP-134
receiver. RS-232 commands and data flow bidirectionally, allowing status requests
and control of a destination unit.
Figure 1 defines the front and rear panels of the TP-133.

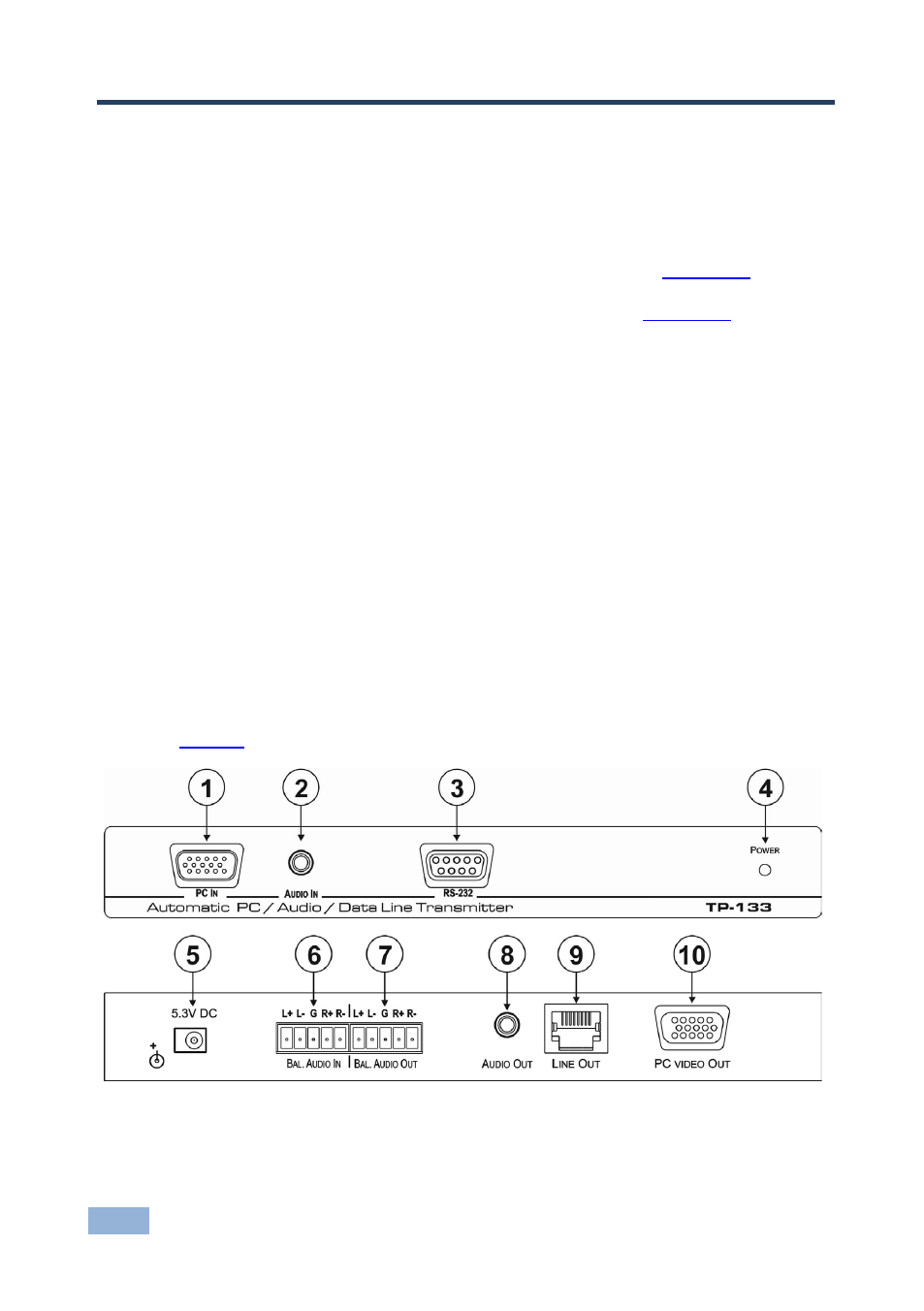

Figure 1: TP-133 Automatic PC/Audio/Data Line Transmitter Front and Rear Panels
