Your XGA Line Transmitter(s) / Receiver
5
4 Your XGA Line Transmitter(s) / Receiver
This section defines the XGA Line Transmitter(s) / Receiver:
• PT-110 XGA Line Transmitter (see section
4.1 )
• WP-110 XGA Line Transmitter (see section
4.2 )
• PT-120 XGA Line Receiver (see section
4.3 )
• TP-120 XGA Line Receiver (see section
4.4 )
4.1 Your PT-110 XGA Line Transmitter
Figure 1 and Table 1 define the PT-110:

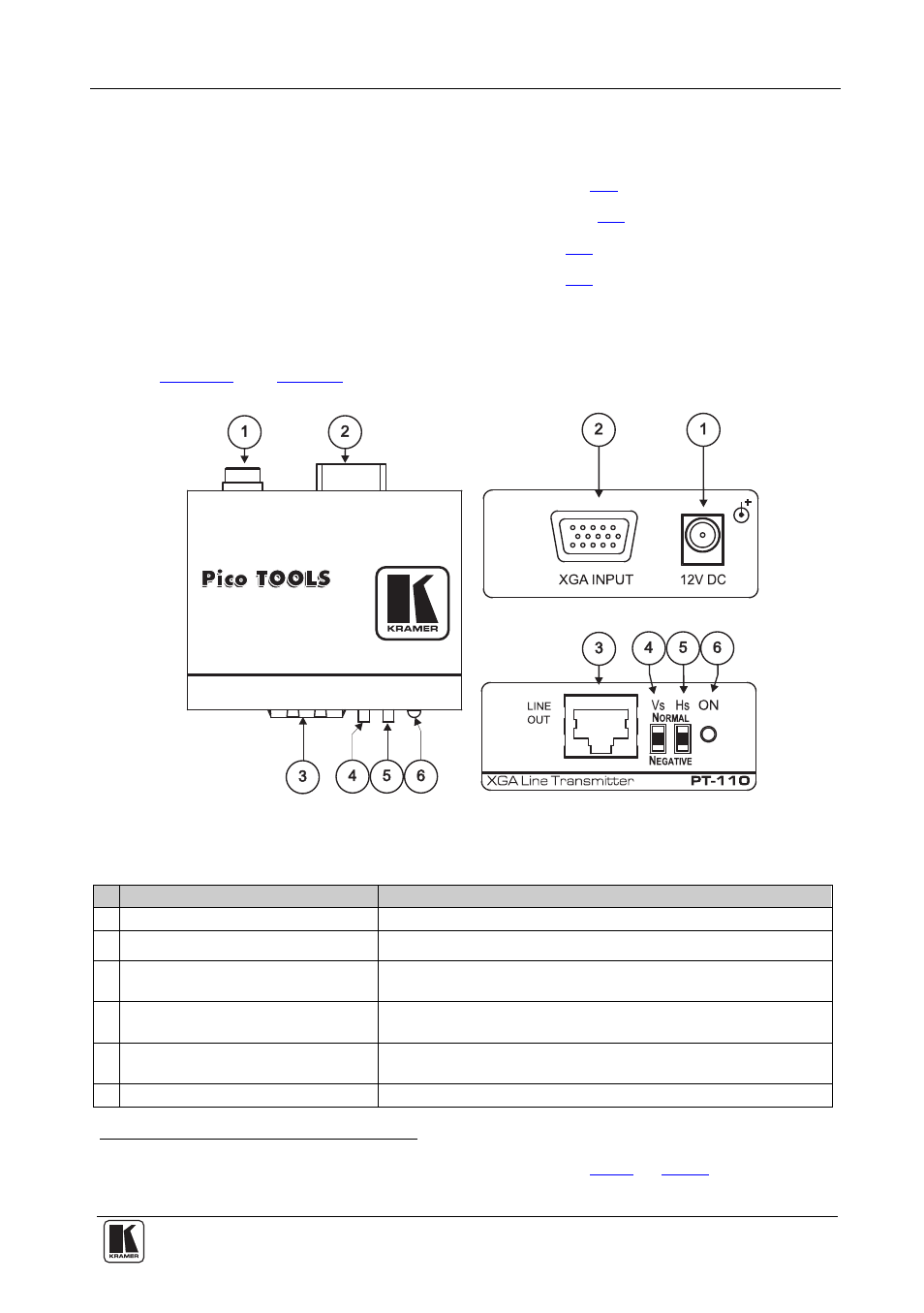

Figure 1: PT-110 XGA Line Transmitter
Table 1: PT-110 Features
# Feature Function
1 12V DC +12V DC connector for powering the unit
2 XGA INPUT 15-pin HD F Connector Connect to the XGA source
3 LINE OUT RJ-45 Connector Connects to the LINE IN RJ-45 connector on the PT-120 or
TP-120 XGA Line Receiver
1
4 VS Switch Slide down to set the V SYNC to negative polarity (NEGATIVE);
slide up
2
to set the V SYNC to positive polarity (NORM)
5 HS Switch Slide down to set the H SYNC to negative polarity (NEGATIVE);
slide up
2
to set the H SYNC to positive polarity (NORM)
6 ON LED Illuminates when receiving power
1 Using a UTP cable with CAT 5 connectors at both ends (the PINOUT is defined in Table 5 and Figure 6 )
2 By default, both switches are set down (for a negative V SYNC and H SYNC polarity)
