Your XGA Line Transmitter(s) / Receiver
8
Table 3: PT-120 XGA Line Receiver Features
#
Feature
Function
1
12V DC
+12V DC connector for powering the unit
2
XGA OUTPUT 15-pin HD (F) Connector
Connect to the XGA acceptor
3
ON LED
Illuminates when receiving power
4
LEVEL Trimmer
Adjusts
the output signal level
5
EQ.
Trimmer
Adjusts
the cable compensation equalization level
6
LINE IN RJ-45 Connector Connects
to
the
LINE OUT RJ-45 connector on the
PT-110 or WP-110 XGA Line Receiver
4.4
Your TP-120 XGA Line Receiver
This section describes the TP-120 XGA Line Receiver and its underside.
and
define the topside of the TP-120 XGA Line Receiver:

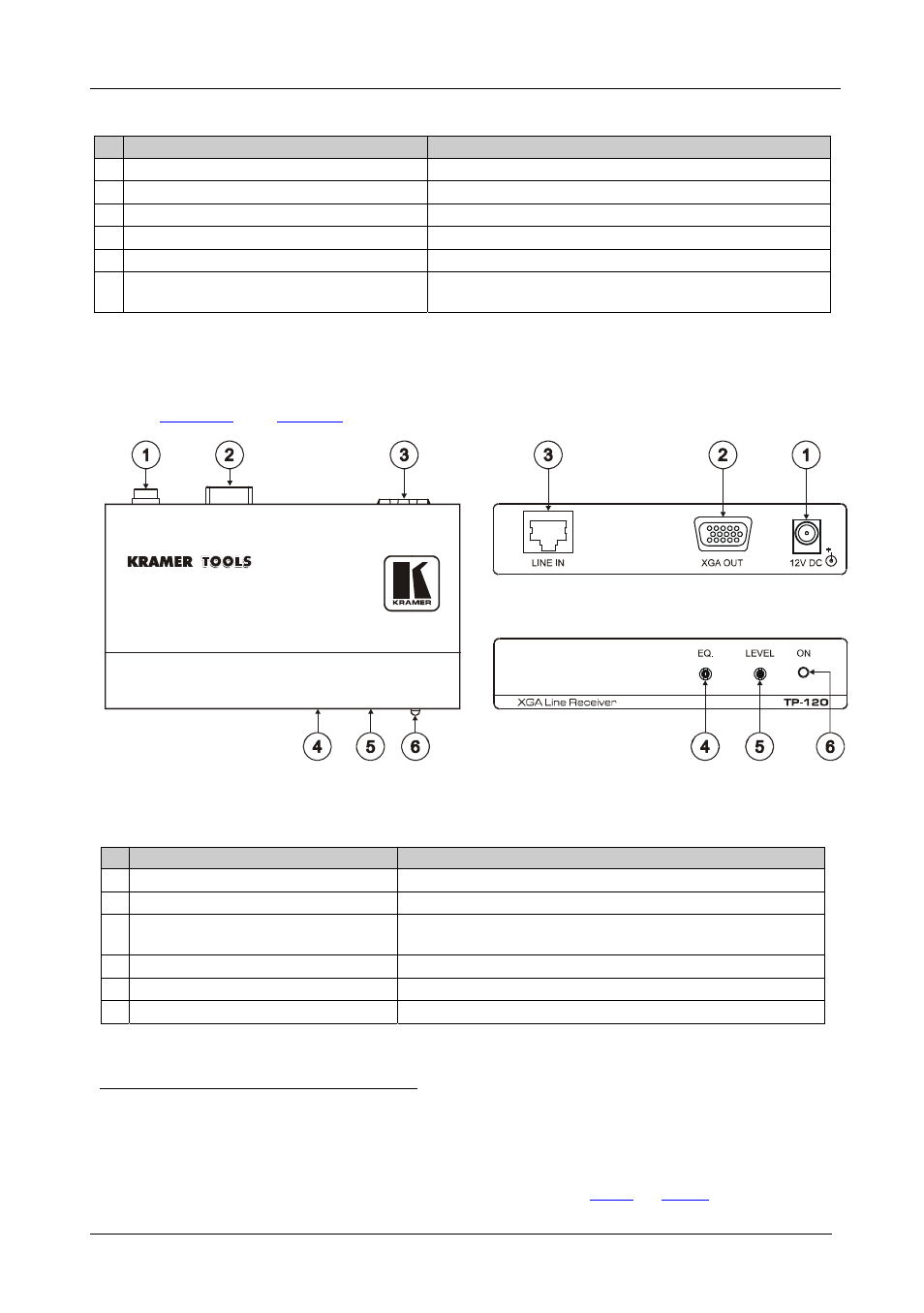

Figure 4: TP-120 XGA Line Receiver
Table 4: TP-120 XGA Line Receiver Features
#
Feature
Function
1
12V DC
+12V DC connector for powering the unit
2
XGA OUT 15-pin HD (F) Connector
Connect to the XGA acceptor
3
LINE IN RJ-45 Connector Connects
to
the
LINE OUT RJ-45 connector on the PT-110 or
WP-110 XGA Line Receiver
4
EQ.
Trimmer Adjusts
the cable compensation equalization level
5
LEVEL Trimmer
Adjusts
the output signal level
6
ON LED
Illuminates when receiving power
1 Use a screwdriver to carefully rotate the trimmer, adjusting the appropriate level
2 Degradation and VGA/XGA signal loss can result from using long cables (due to stray capacitance), sometimes leading to a
total loss of sharpness in high-resolution signals
3 Using a UTP cable with CAT 5 connectors at both ends (the PINOUT is defined in
Table 5
and
Figure 6
)
