4 SWM-1 - Defining the SWM-1 Loudspeaker Wall Mount Device
4 Defining the SWM-1 Loudspeaker Wall
Mount Device
Each SWM-1 package includes a pair of loudspeaker wall mounts. The following
sections define the parts of one (of two) wall mount kit.
4.1 Wall Mount Parts
You need to disassemble the SWM-1 before installing it.

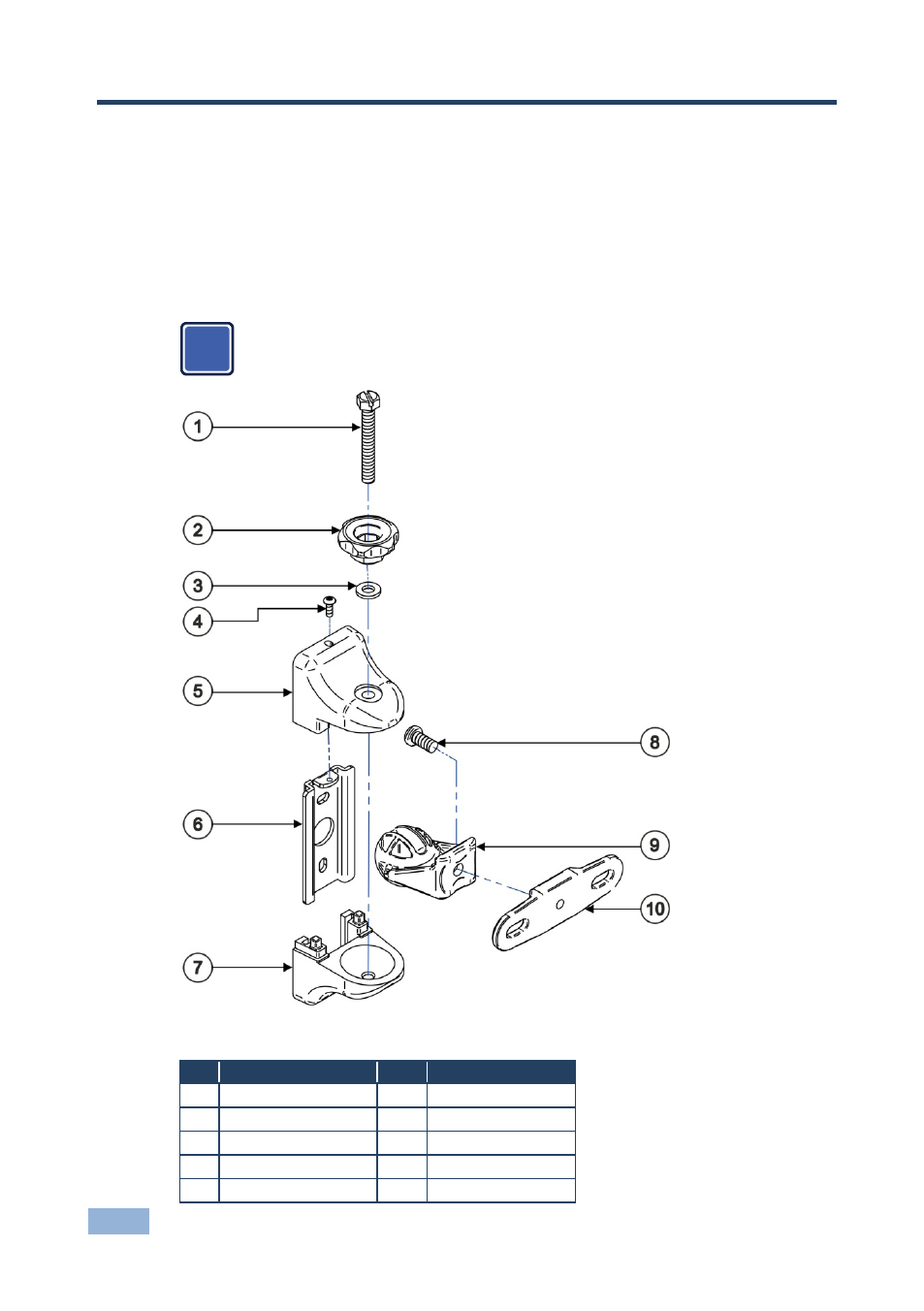

Figure 1: SWM-1 Parts per Unit
# Part per Unit # Part per Unit
1 M6x45 Hex Screw 6 Wall Plate
2 M6 Thumbwheel 7 Lower Ball Clamp
3 M6 Metal Washer 8 M6x12mm Screw
4 M3x8 Screw 9 Ball Interface
5 Top Ball Clamp 10 Adapter Interface
