SWM-1 - Installing the SWM-1 9

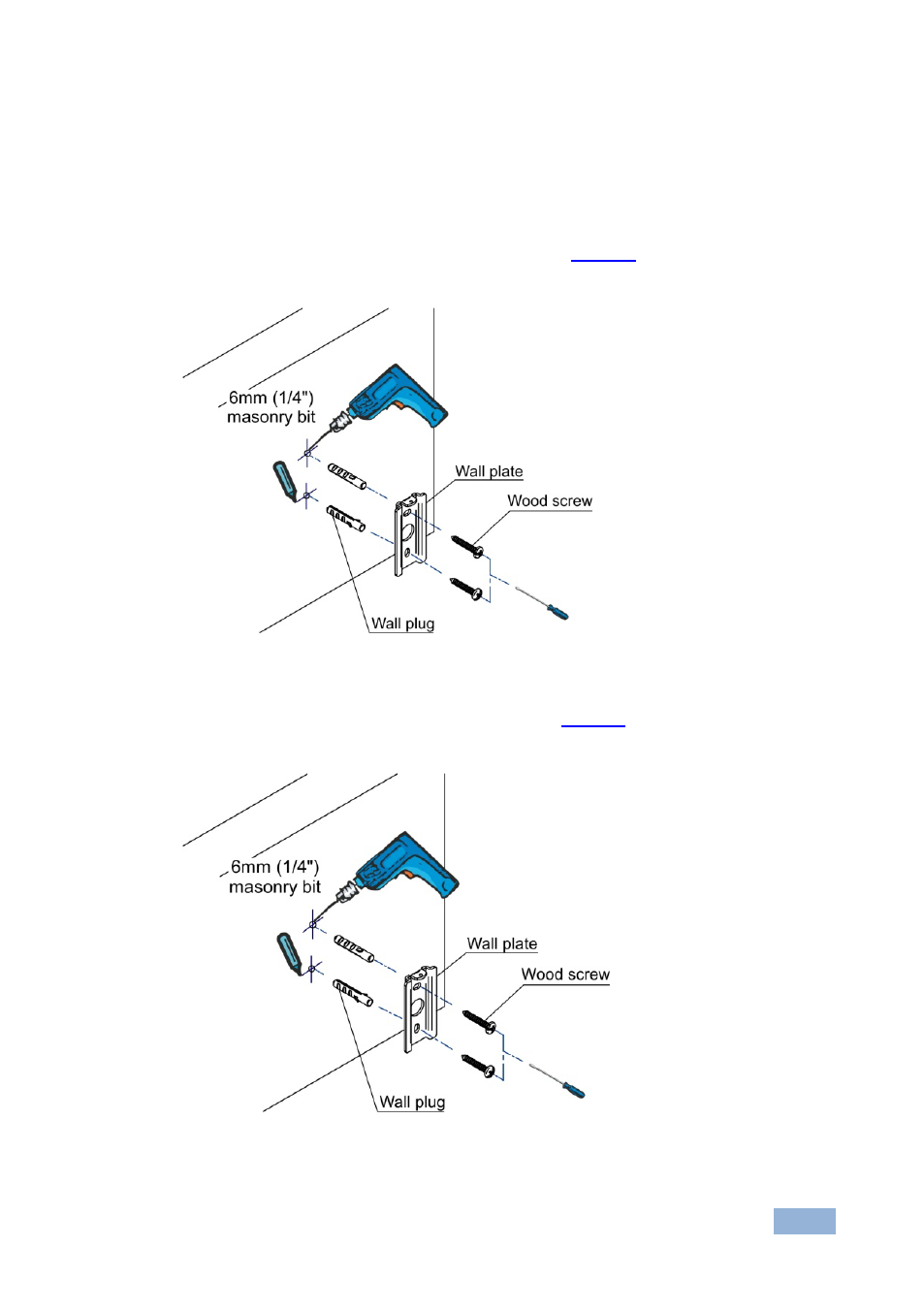

5.4 Wall Mounting the SWM-1
You can mount the SWM-1 either on a brick or concrete wall or wood/wood stud
walls.
To mount on a concrete or brick wall, as shown in Figure 4 , use a 6mm (1/4”)
masonry bit with your drill:
Figure 4: Mounting the Wall Plate on a Concrete Wall
To mount on a wooden wall or stud, as shown in Figure 5 , use a 3mm (1/8”) wood
bit with your drill (you can use a stud finder to find the wooden stud):
Figure 5: Mounting the Wall Plate on a Wooden Wall
