Wiring the CAT 5 LINE IN/LINE OUT RJ-45 Connectors
31
7.2 Button Labels Sheet

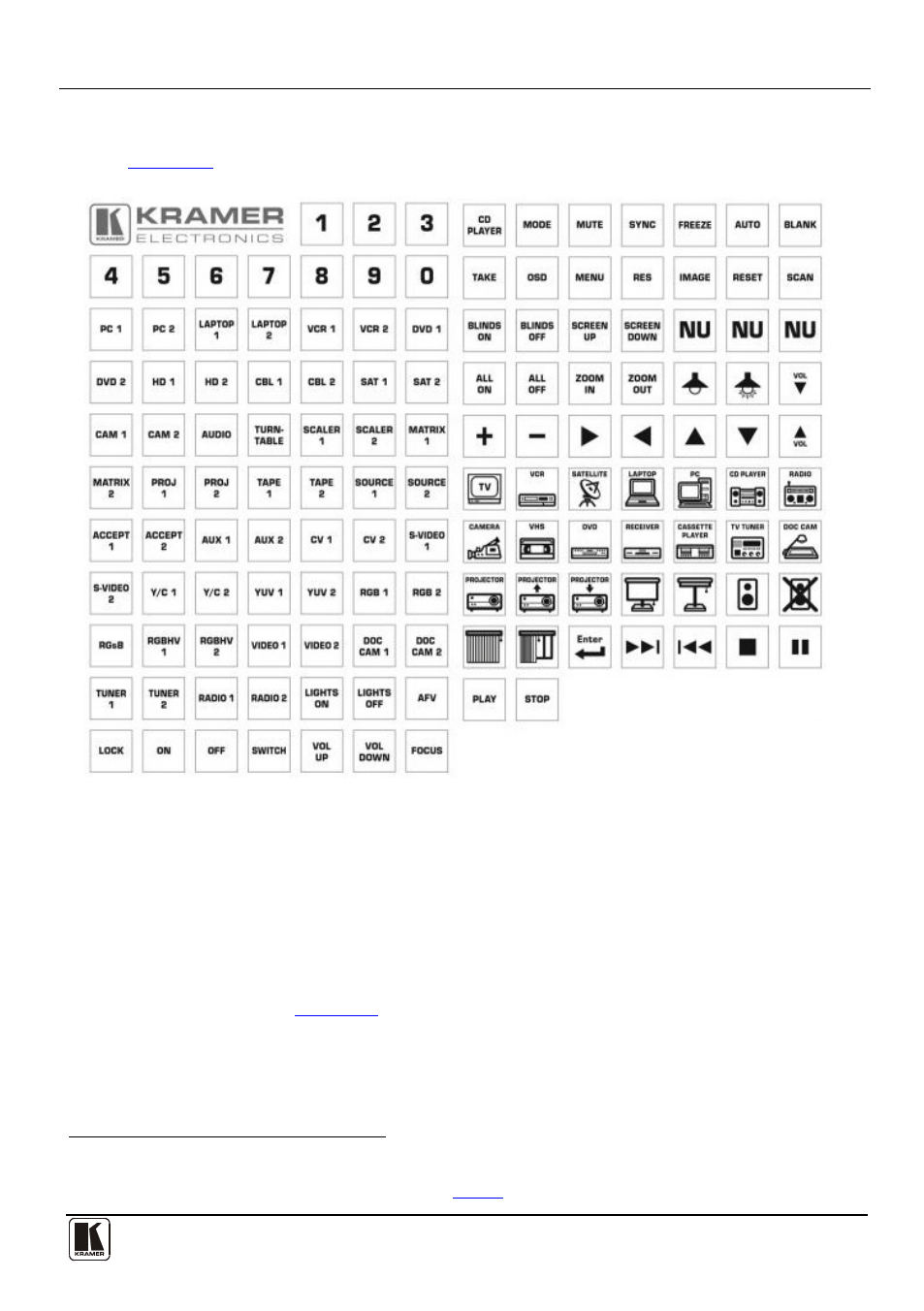

Figure 17 illustrates the sample "Button Labels" sheet:
Figure 17: Sample "Button Labels" Sheet
8 Wiring the CAT 5 LINE IN/LINE OUT RJ-45 Connectors
STP cabling 50' (15.24m) 1 long is provided with the Kramer A/V SummitView™
Essentials Kit 2
9
. When required, longer STP cabling can be used when purchased
for standalone wall plates but we recommend a maximum transmission range of up
to 100' (30.48m). Exceeding the recommended distance may result in reduced
image quality (see Section ).
1 Plenum-rated for the SummitView™ US version; non-plenum for the SummitView™ Europe
2 Or should be purchased separately for a standalone machine, see
Table 10 for reference
