KRAMER: SIMPLE CREATIVE TECHNOLOGY

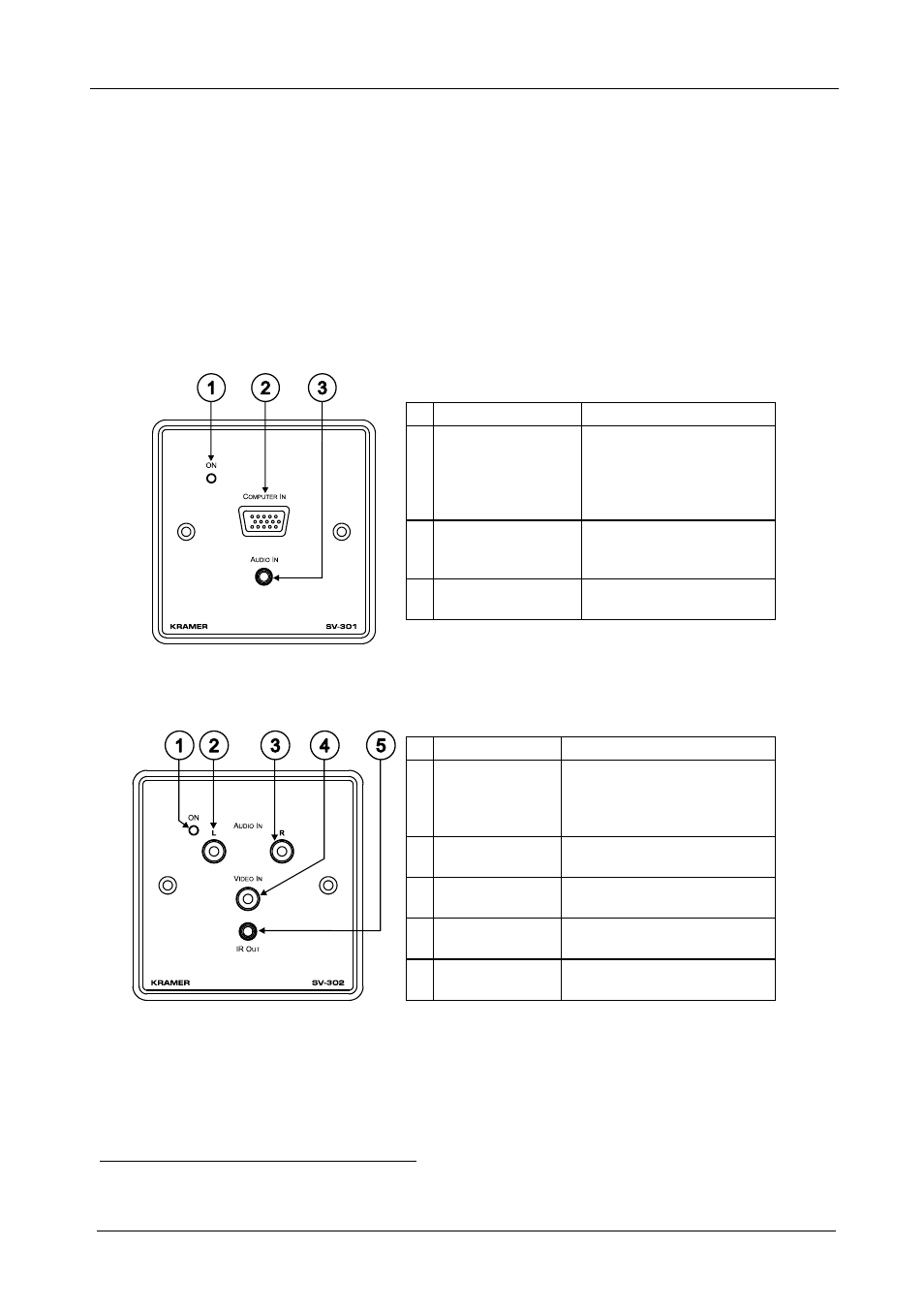

Defining the Wall Plates (for Europe)

6

5 Defining the Wall Plates (for Europe)

Section 5.1 defines the

SV-301 and SV-302, and section 5.2 defines the

SV-303, SV-304 and SV-305.

5.1 SV-301 and SV-302 (for Europe)

The

SV-301 and SV-302 are 1 Gang wall plate inserts. The SV-301 has two

terminal block connectors at the rear and the

SV-302 has one.

Table 5: Defining the SV-301 (for England and Europe)

1

# Feature

Function

1 ON LED

Lights in RED when

receiving power (when no

signal is detected); lights

in GREEN when receiving

a signal

2 COMPUTER IN

15-pin HD

Connector

Connect to the computer

graphics source

3 AUDIO IN 3.5mm

Mini Plug

Connects to the audio

source

Table 6: Defining the SV-302 (for England and Europe)

1

# Feature

Function

1 ON LED

Lights in RED when receiving

power (when no signal is

detected); lights in GREEN

when receiving a signal

2 L AUDIO IN

RCA Connector

Connect to the left analog

audio source

3 R AUDIO IN

RCA Connector

Connect to the right analog

audio source

4 VIDEO IN RCA

Connector

Connect to the composite video

source

5 IR OUT 3.5mm

Mini Plug

Connect to a machine via an

IR Emitter


1 When mounting in Belgium and Germany, use the standard WP Adapter
