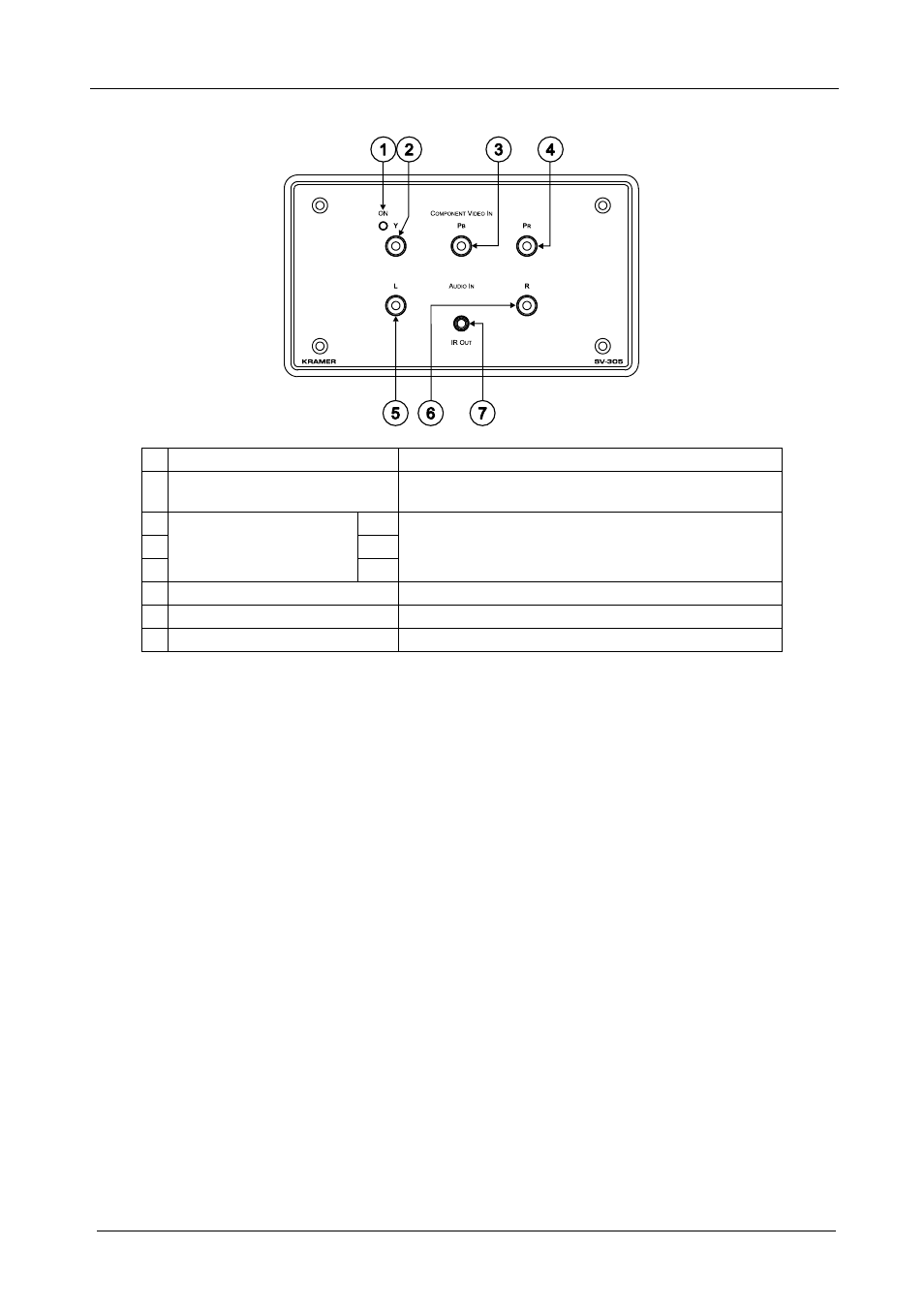

Defining the Wall Plates (for Europe)
8
Table 9: Defining the SV-305 (for Europe)
# Feature Function
1 ON LED Lights in RED when receiving power (when no signal
is detected); lights in GREEN when receiving a signal
2 Y
3 PB
4
COMPONENT VIDEO IN
RCA Connectors
PR
Connect to the component video source
5 L AUDIO IN RCA Connector Connect to the left analog audio source
6 R AUDIO IN RCA Connector Connect to the right analog audio source
7 IR OUT 3.5mm Mini Plug Connect to a machine via an IR Emitter
