Wiring the Rear Panel Connectors

9

6 Wiring the Rear Panel Connectors

STP cabling of 50'

(15.24m)

1

in length is provided with the Kramer A/V

SummitView™ Standard Kit and the SummitView™ Essentials Kit

2

. When

required, longer STP cabling can be used when purchased for stand alone wall

plates but we recommend a maximum transmission range of up to 100'

(30.48m). Exceeding the recommended distance may result in reduced image

quality.
This section describes how to connect the rear panel for the:

US wall plate versions (see section 6.1)
European wall plate versions (see section 6.2)

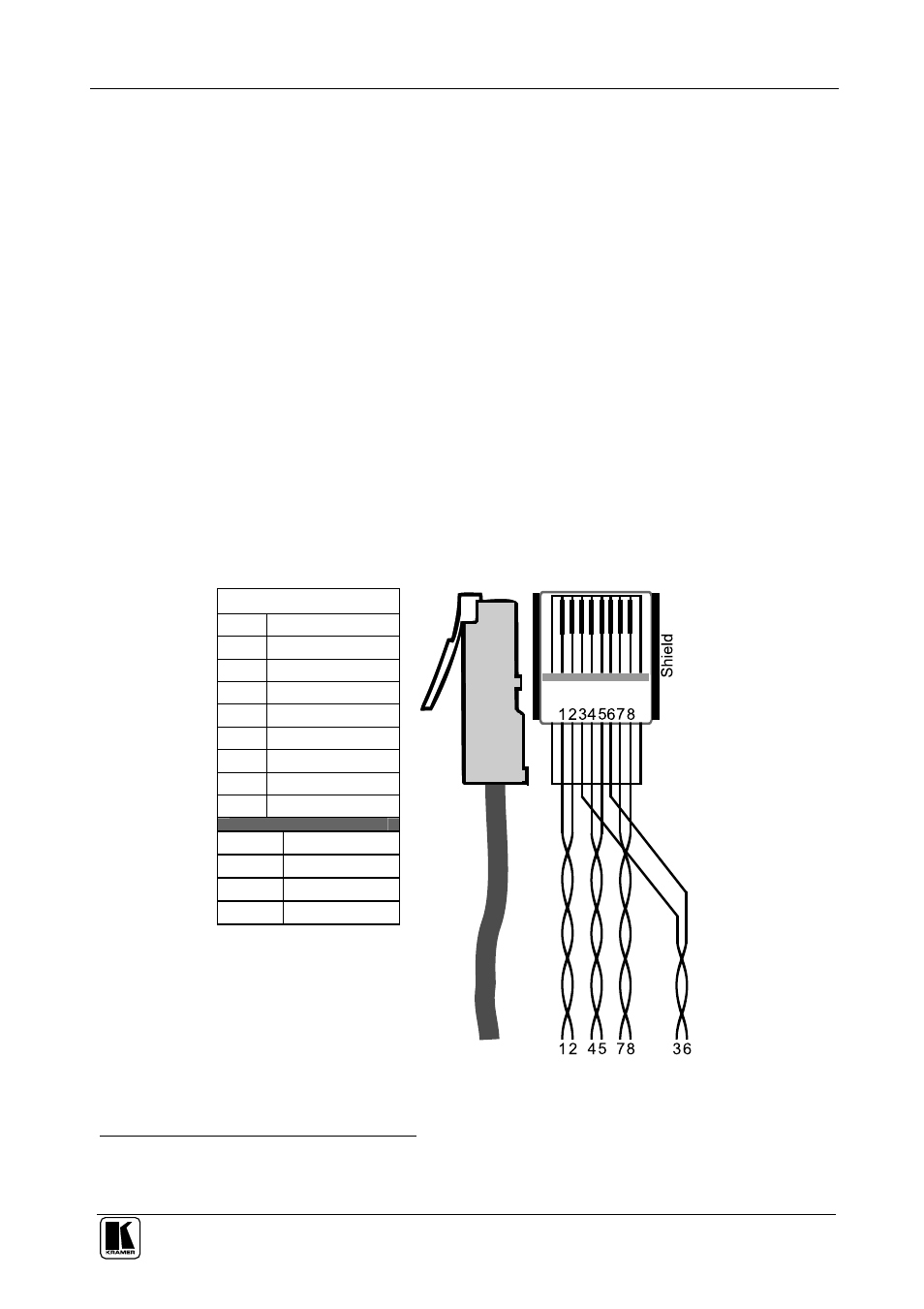

6.1 Wiring the CAT 5 LINE IN / LINE OUT RJ-45 Connectors

The US versions of the SV wall plates are equipped with RJ-45 terminals.

Table 10 defines the STP CAT 5 PINOUT, using a straight pin to pin

cable

with RJ-45 connectors:

Table 10: CAT 5 PINOUT (for the USA)

EIA /TIA 568B
PIN

Wire Color

1

Orange / White

2

Orange

3

Green / White

4

Blue

5

Blue / White

6

Green

7

Brown / White

8

Brown

Pair 1

4 and 5

Pair 2

1 and 2

Pair 3

3 and 6

Pair 4

7 and 8

1 Plenum-rated for the SummitView™ US version; non-plenum for the SummitView™ Europe
2 Or should be purchased separately for a stand alone machine, see Table 12 for reference
