Defining the Wall Plates (for Europe)
7
5.2 SV-303, SV-304, and SV-305 (for Europe)
The SV-303 is a 1 Gang wall plate insert with one RJ-45 CAT5 connector at
the rear. The SV-304 and SV-305 are 2 Gang wall plate inserts with two RJ-45
CAT 5 connectors at the rear (available in a single version for Europe).

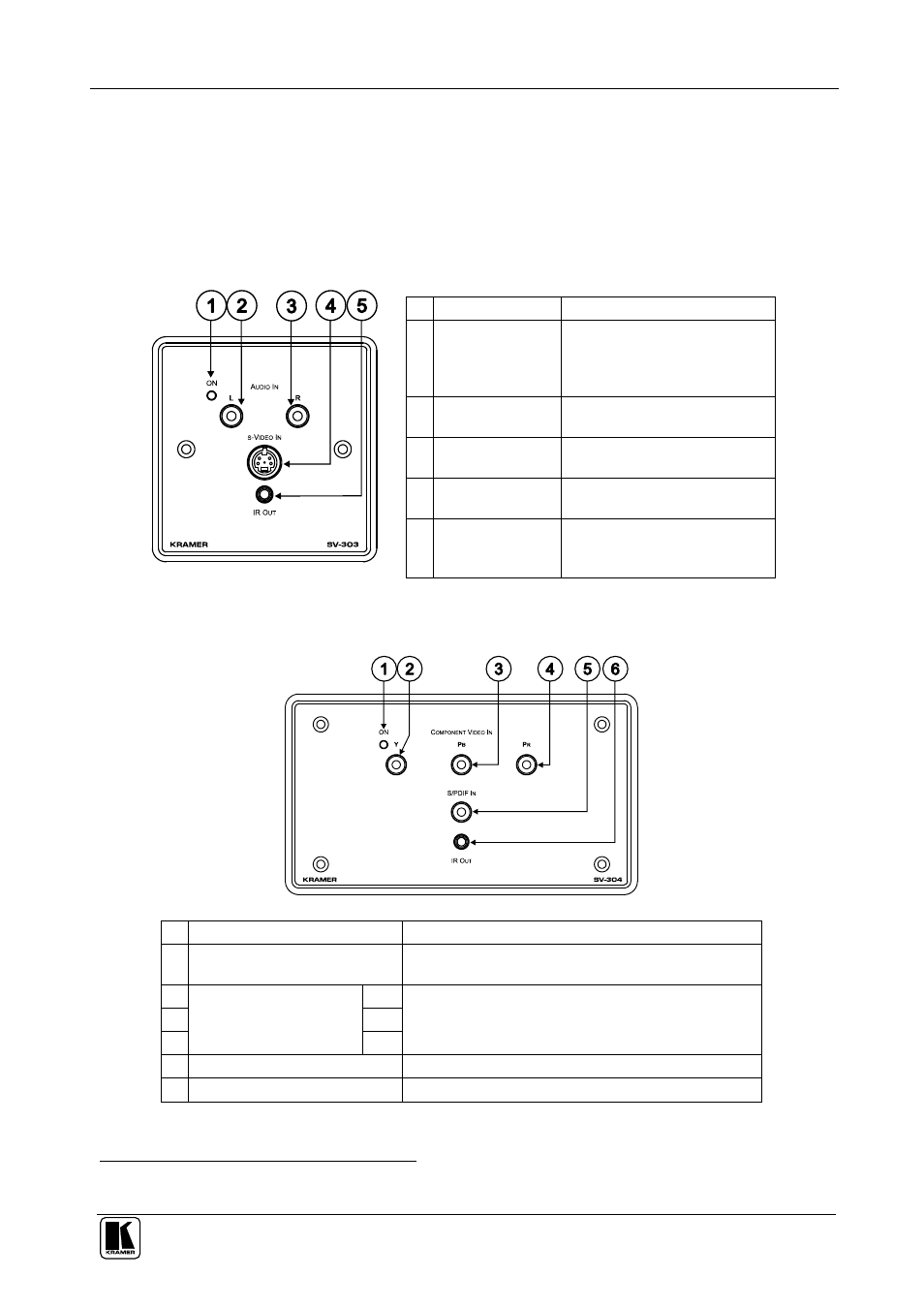

Table 7: Defining the SV-303 (for England and Europe) 1
# Feature Function
1 ON LED Lights in RED when receiving
power (when no signal is
detected); lights in GREEN
when receiving a signal
2 L AUDIO IN
RCA Connector
Connect to the left analog
audio source
3 R AUDIO IN
RCA Connector
Connect to the right analog
audio source
4 s-VIDEO IN 4p
Connector
Connect to the s-Video source
5 IR OUT 3.5mm
Mini Plug
Connector
Connect to a machine via an
IR Emitter
Table 8: Defining the SV-304 (for Europe)
# Feature Function
1 ON LED Lights in RED when receiving power (when no signal
is detected); lights in GREEN when receiving a signal
2 Y
3 PB
4
COMPONENT VIDEO
IN RCA Connectors
PR
Connect to the component video source
5 S/PDIF IN RCA Connector Connect to the digital audio source
6 IR OUT 3.5mm Mini Plug Connect to a machine via an IR Emitter
1 When mounting in Belgium and Germany, use the standard WP Adapter
