Kramer Electronics VS-88FO User Manual
Page 9
VS
-8
8
F
O
–
O
v
e
rv
ie
w
6

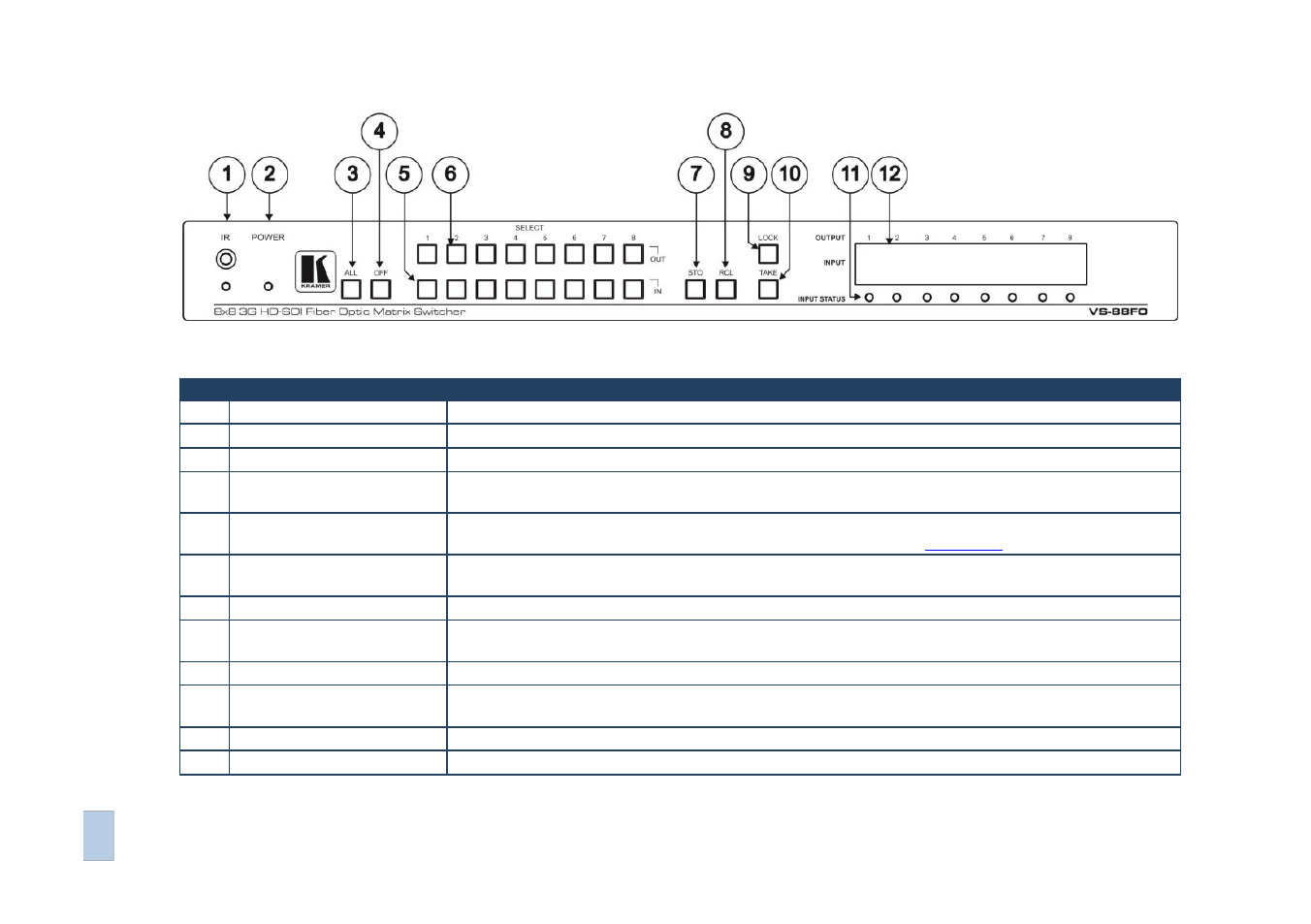

Figure 1: VS-88FO 8x8 3G HD-SDI Fiber Optic Matrix Switcher Front Panel
#
Feature
Function
1
IR Receiver
The yellow LED illuminates when receiving signals from the infrared remote control transmitter
2
POWER LED
Illuminates when the unit is ON
3
ALL Button
Pressing ALL followed by an INPUT button, connects that input to all outputs
4
OFF Button
Pressing OFF+OUT disconnects that output from the inputs;
pressing OFF+ALL disconnects all the outputs
5
IN SELECT Buttons
Select the input to switch to the output;
long presses on buttons IN 1 to IN 5 change the genlock timing (see
6
OUT SELECT Buttons
Select the output to which the input is switched; pressing OUT 1+OUT 2 selects Protocol 2000; pressing
OUT 1+OUT 3 selects Protocol 3000
7
STO (STORE) Button
Pressing STO followed by an IN/OUT button stores the current setting
8
RCL (RECALL) Button
Pressing the RCL button and the corresponding IN/OUT key under the selected button recalls a setup
from the non-volatile memory
9
LOCK Button
A long press toggles activation/inactivation of the front panel buttons
10
TAKE Button
Pressing TAKE toggles the mode between the CONFIRM mode and the AT ONCE mode (user
confirmation per action is unnecessary)
11
INPUT STATUS LEDs
Illuminate green when an active input is detected
12
7-segment Display
Displays the selected input switched to the output (marked above each input)
