VS-88FO - Connecting the VS-88FO 11
5.1 Installing the SFP Modules
To install an SFP module:
1. Make sure the bail (removal handle) is closed in an upward position as
shown in #1.
2. Insert the SFP module in an open slot and push it inward until it clicks.
3. Remove the protective SFP cap from the end of the SFP (#2).
To remove an SFP module:
1. Pull the bail downward to release the SFP (#3).
2. Pull the SFP module out by the bail (#4).
3. If needed, replace the protective cap over the fiber connectors.
Note: When transporting or storing an unconnected device, replace the SFP caps
to protect against dust.

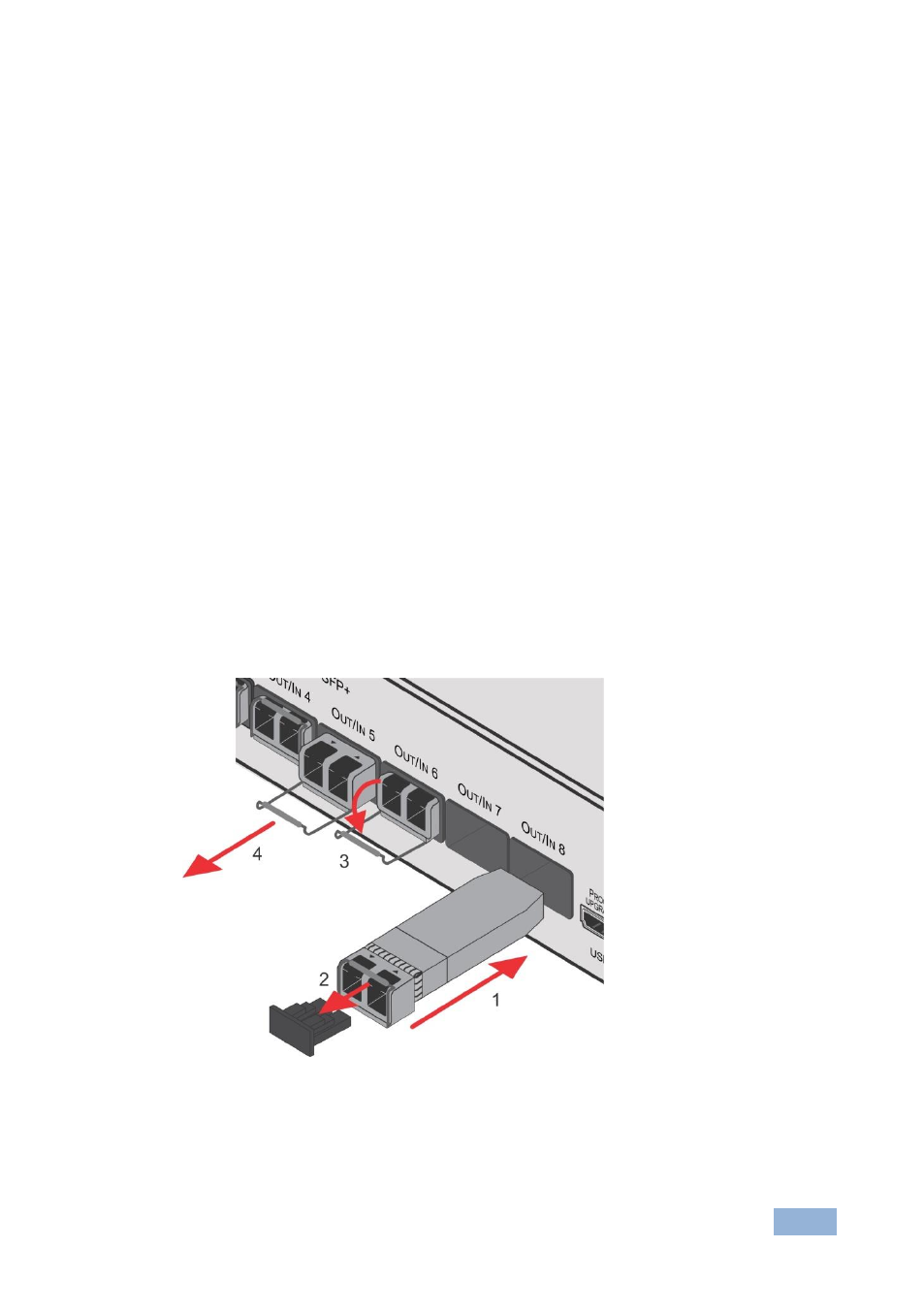

Figure 4: Installing the SFP Modules
