Operating Your Audio-Video Matrix Switcher
20
7 Operating Your Audio-Video Matrix Switcher
Operate your unit via:
• The front panel buttons (as this section describes)
• RS-232 or RS-485 serial commands transmitted by a touch screen
system, PC 1
• Kramer RC-IR1 Infra-Red Remote Control Transmitter
, or other serial controller
2
• Dry contact-closure switches connected to the Keyboard Extension
7.1 Startup Display
After switching on the power, the MATRIX and STATUS 3 displays show the
following screen:

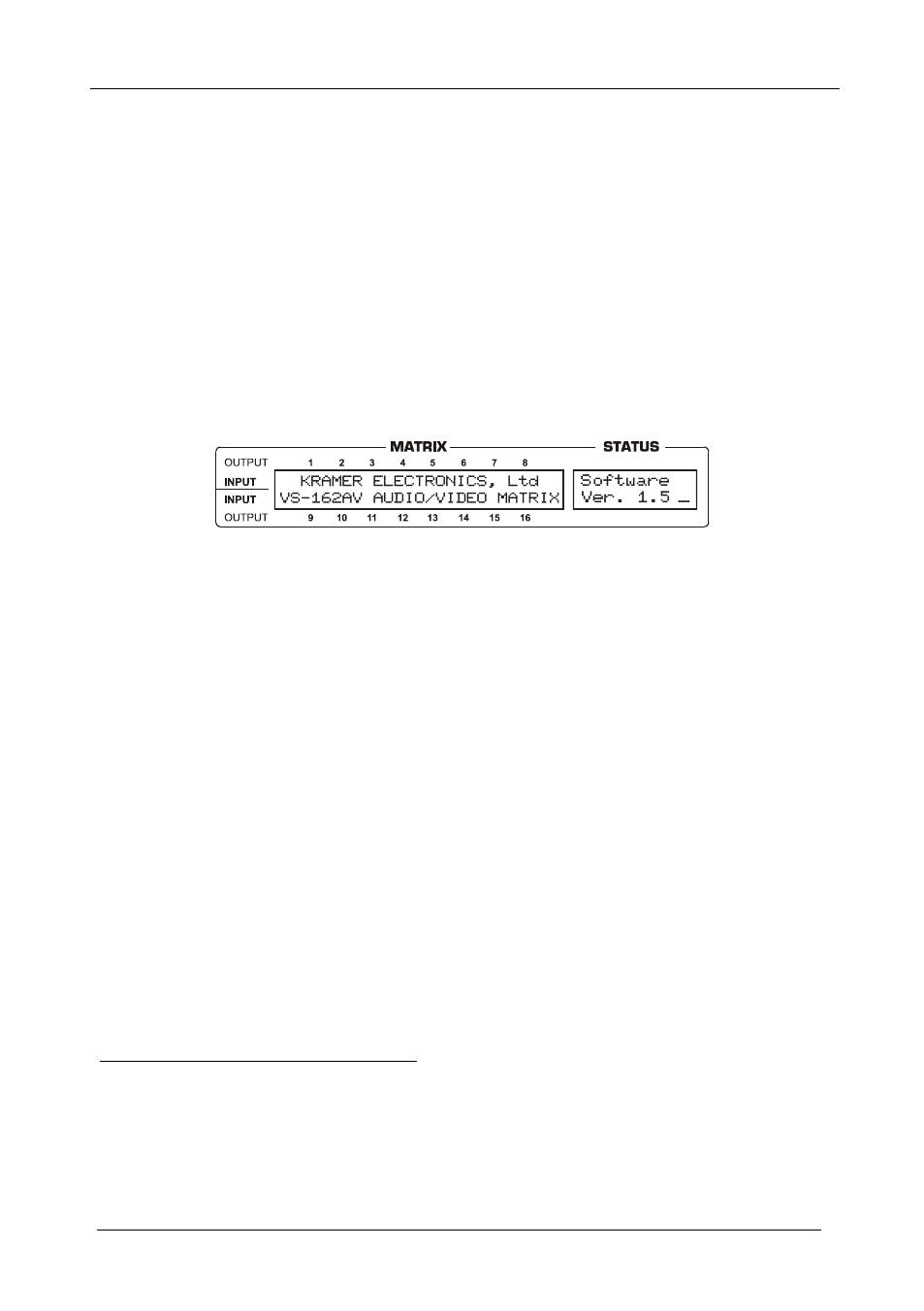

Figure 15: Default Startup Status Display Sequence
7.2 Using the Front Panel Buttons
You can switch video/audio signals in the BREAKAWAY or
AUDIO-FOLLOW-VIDEO modes (see section 7.2.1), and you can work in the
AT ONCE or CONFIRM modes (see section 7.2.2).
You can switch (see section 7.2.3) and clear (see section 7.2.4):
• One input to one output
• Several inputs to several outputs
• One input to all outputs
1 For instructions on using Kramer Windows®-based Control Software, refer to the separate user manual (included on the
CD-ROM in .pdf format), Kramer Control Software
2 Previously known as the IR-1 / IR-1-01
3 Version 1.5 is shown in the Status Display as an example; text in the Matrix Display may vary (according to machine
settings)
