Installing the Audio-Video Matrix Switcher
18
MACHINE ADDRESS # 1
MACHINE ADDRESS # 7
MACHINE ADDRESS # 2
DIP 8 OFF
DIP 8 OFF
DIP 8 ON
+ - G
RS-485
+ - G
RS-485
+ - G
RS-485
VS-1616SDI
VS-162AV / VS-162AVRCA
VS-1616AD

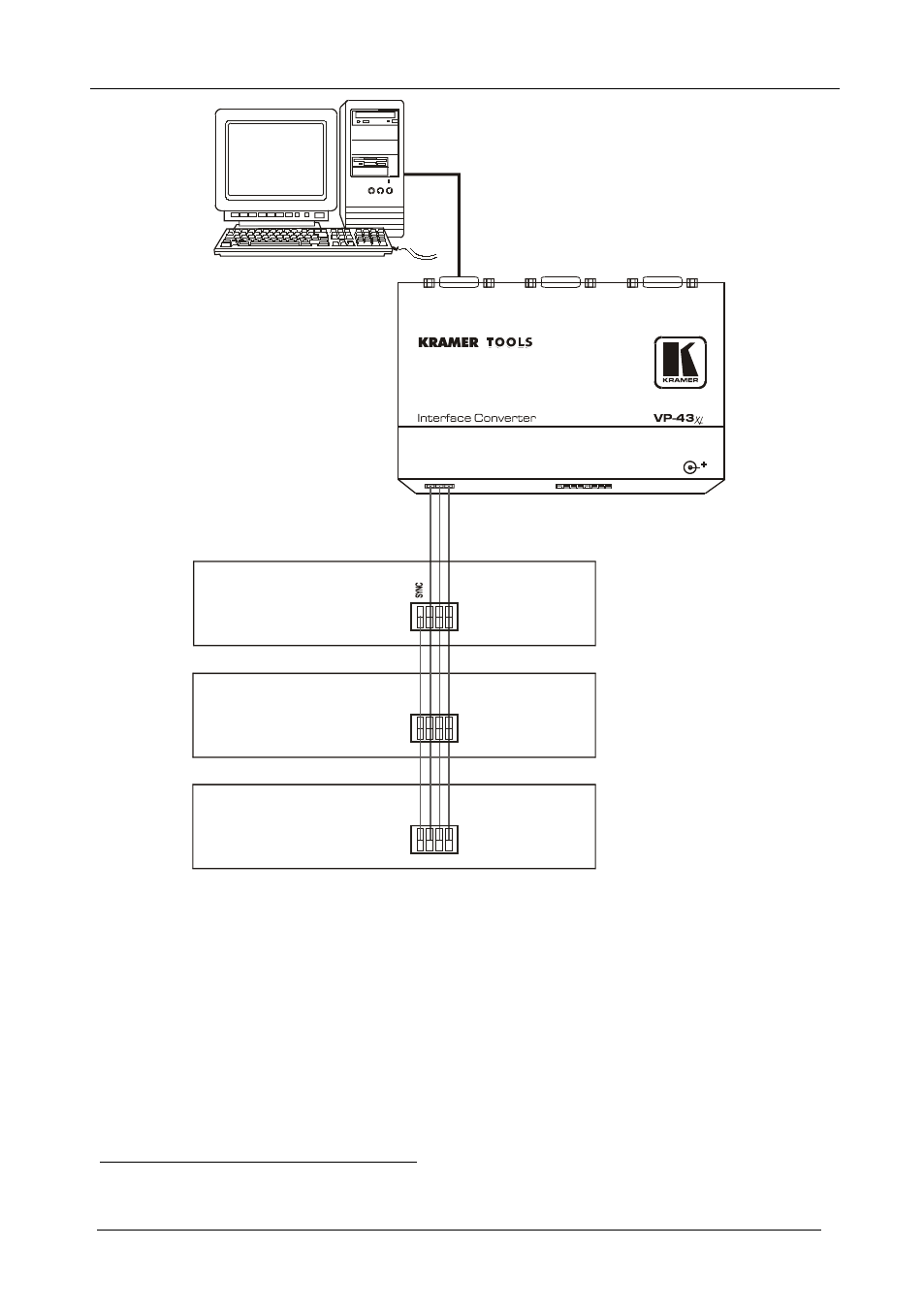

Figure 13: An RS-485 Control Interface Setup
6.5 Configuring the Sync
On the unit, you can select one of the following, as the sync input:
• EXTERNAL (“sync in” BNC connector)
• INPUT # 1 BNC connector
• MTX (Sync from Matrix) RS-485 Terminal Block connector, when
using multiple machines 1
1 Refer to section 8.3.1
