5 pc db25 com port connection to a unit, 2 connecting the rs485 control interface, Pc db25 com port connection to a unit – Kramer Electronics VS-162AVRCA User Manual

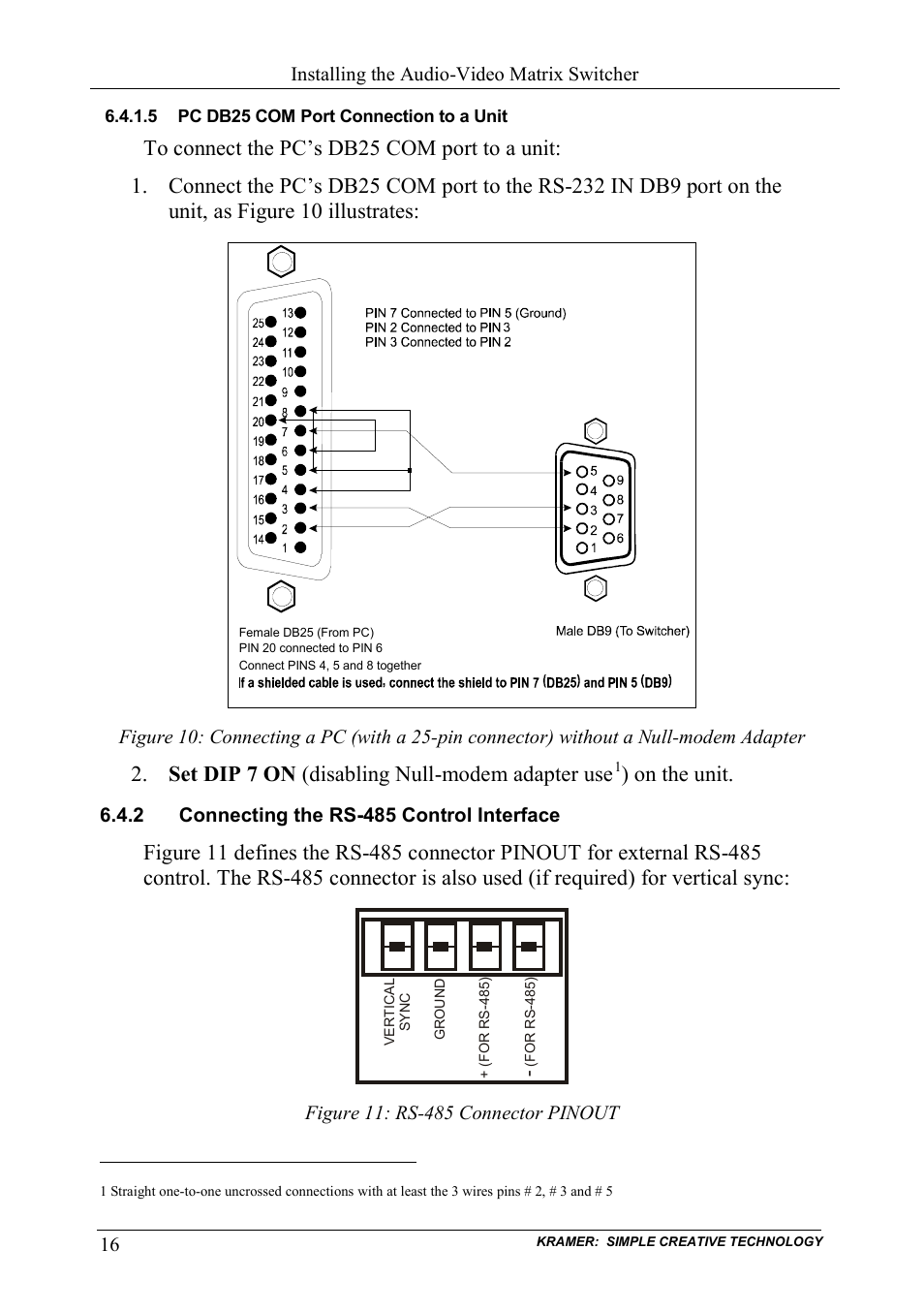

Page 20: Connecting the rs-485 control interface, Figure 11: rs-485 connector pinout, Set dip 7 on (disabling null-modem adapter use
5 pc db25 com port connection to a unit, 2 connecting the rs485 control interface, Pc db25 com port connection to a unit | Connecting the rs-485 control interface, Figure 11: rs-485 connector pinout, Set dip 7 on (disabling null-modem adapter use | Kramer Electronics VS-162AVRCA User Manual | Page 20 / 53 This manual is related to the following products:
