K-Router Plus Online User Guide - Using the Menu Utilities 21
5.6 Using K-Link Data
K-Link Data allows the user to route K-Link data connections in a manner similar to
the video matrix view. Point and click the intersection square between elements
(input, output, network, or device) to make the data connection.
To route a K-Link data connection:

Click any non-grey intersecting square.
The square turns green to indicate the connection is made.
In this example:
 In 4 is connected to Out 1
 In 5 is connected to Out 2
 Local 2 is connected to RS-232

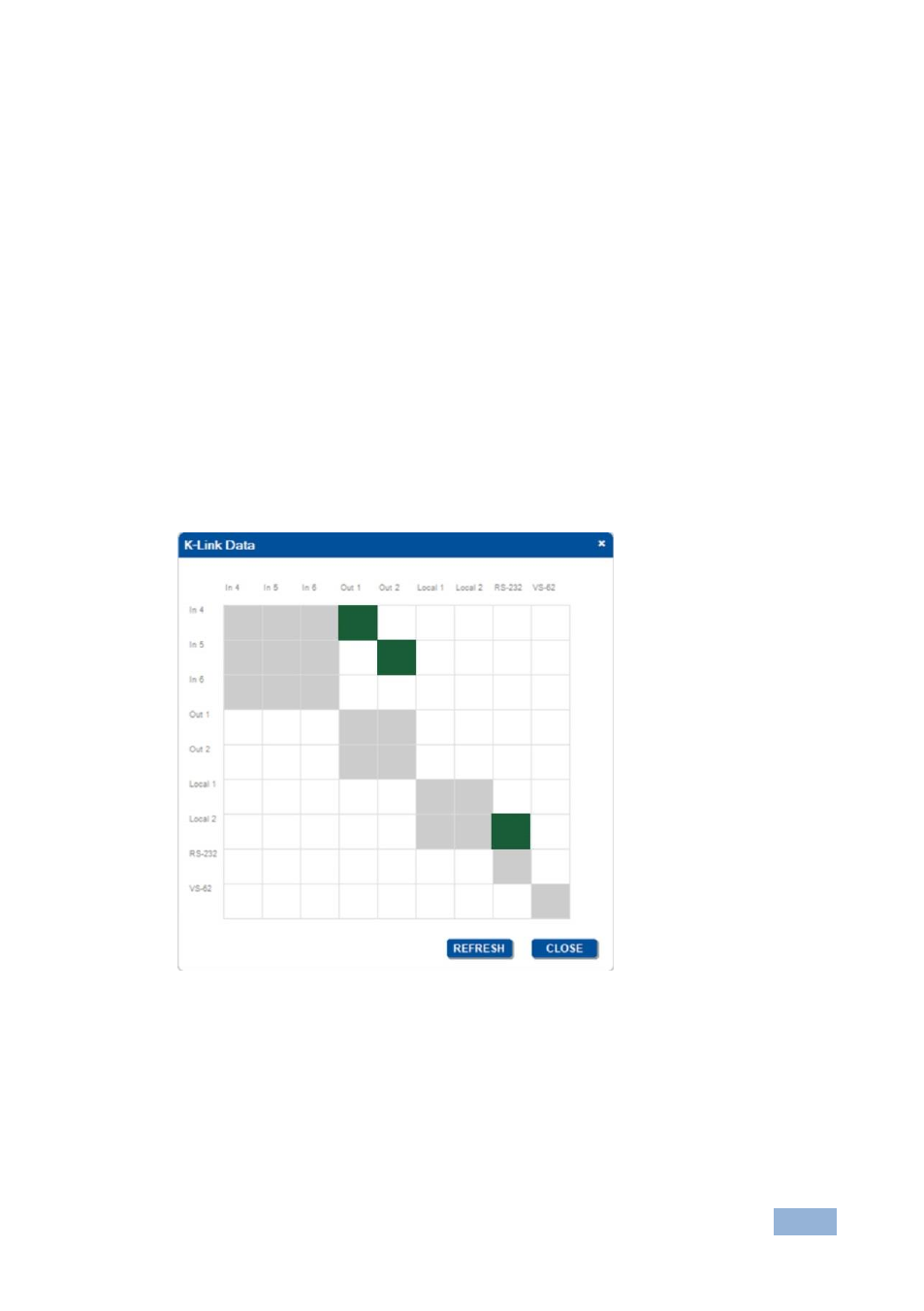

Figure 12: K-Link Data Window
Note: Grey squares are forbidden connections. Only one connection is allowed per
device. Making a second connection to a device breaks the previous connection.
