6 VS-41AV, VS101AV, VS-4X - Overview
3.3 Defining the VS-4X 4x1 Balanced Audio Switcher
The VS
−4X is a high−performance switcher for balanced stereo audio signals on
XLR connectors. It switches any one of four stereo signals to a single stereo
output.
•
Mechanical (passive) switching that requires no power
•
Compact desktop size. Two units can be rack mounted side-by-side in a 1U
rack space with the optional RK-4X adapter

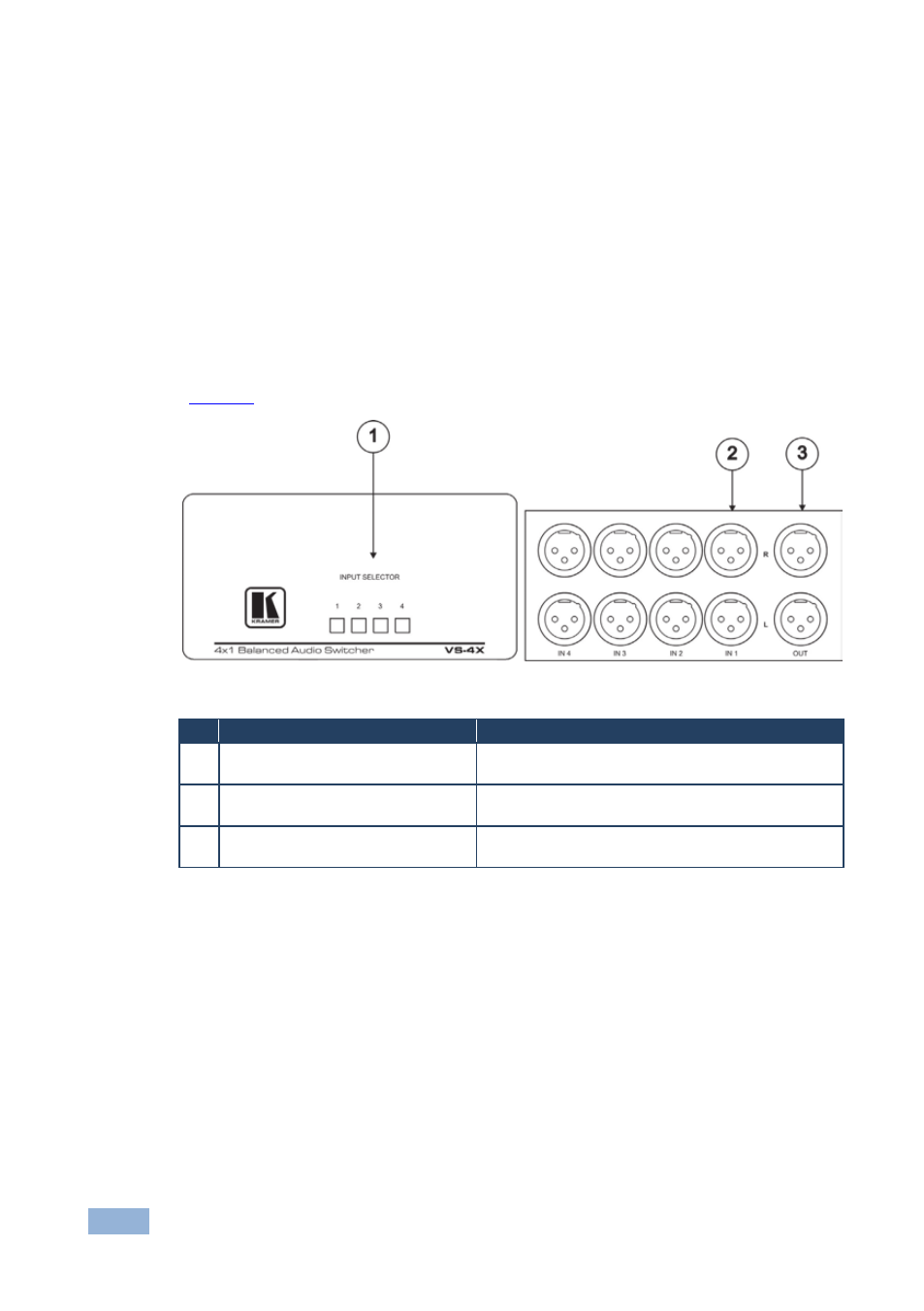

Figure 3 defines the VS-4X.
Figure 3: VS-4X 4x1 Balanced Audio Switcher
# Feature Function
1 INPUT SELECTOR Buttons (1-4) Press to choose which input to switch to the
output
2 IN (1-4) XLR Connectors Connect the right and left channels to up to 4
balanced stereo audio sources
3 OUT XLR Connectors Connect the right and left channels to a balanced
stereo audio acceptor
