8 VS-41AV, VS101AV, VS-4X - Connecting and Operating the Switchers
4.1 Connecting the VS-41AV 4x1 Audio-Video Switcher
To connect the VS-41AV as illustrated in the example in Figure 4 :
1. Connect up to 4 CV sources (for example, composite video players 1-4) to
the VIDEO IN BNC connectors.
2. Connect up to 4 unbalanced stereo audio sources (for example, the audio
output from composite video players 1-4) to the right and left channels of the
AUDIO IN RCA connectors.
3. Connect the VIDEO OUT BNC connector to a CV acceptor (for example, a
composite video recorder).
4. Connect the right and left channels of the AUDIO OUT RCA connectors to
an audio acceptor (for example, the audio input to the composite video
recorder).

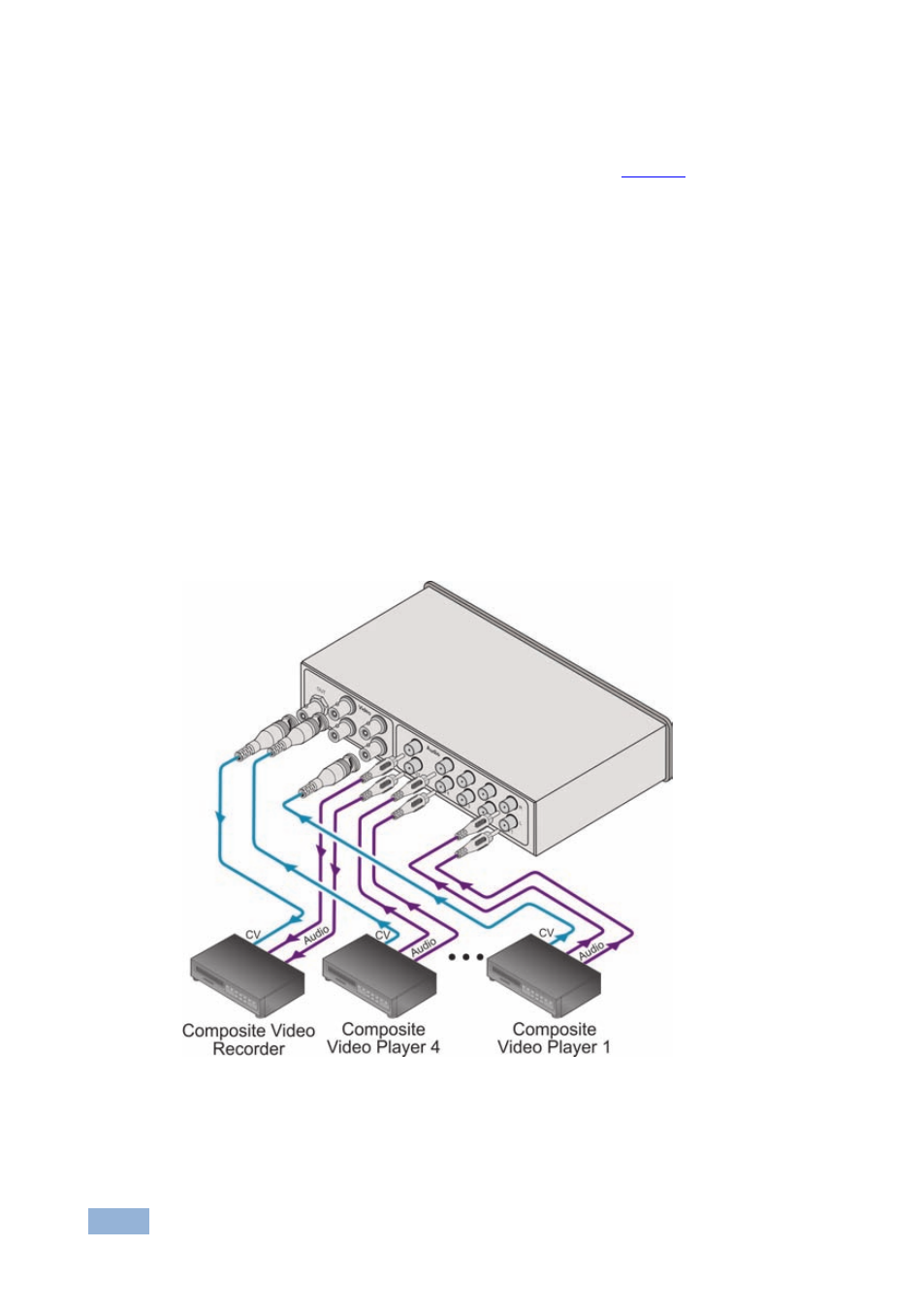

Figure 4: Connecting the VS-41AV
