VS-41AV, VS101AV, VS-4X - Connecting and Operating the Switchers
9
4.2
Connecting the VS-101AV 10x1 Video/Audio-Stereo
Switcher
To connect the VS-101AV as illustrated in the example in
1. Connect up to 10 CV sources (for example, composite video players 1-10) to
the VIDEO IN BNC connectors.
2. Connect up to 10 unbalanced stereo audio sources (for example, the audio
output from composite video players 1-10) to the right and left channels of
the AUDIO IN RCA connectors.
3. Connect the VIDEO OUT BNC connector to a CV acceptor (for example, a
composite video recorder).
4. Connect the right and left channels of the AUDIO OUT RCA connectors to
an audio acceptor (for example, the audio input to the composite video
recorder).

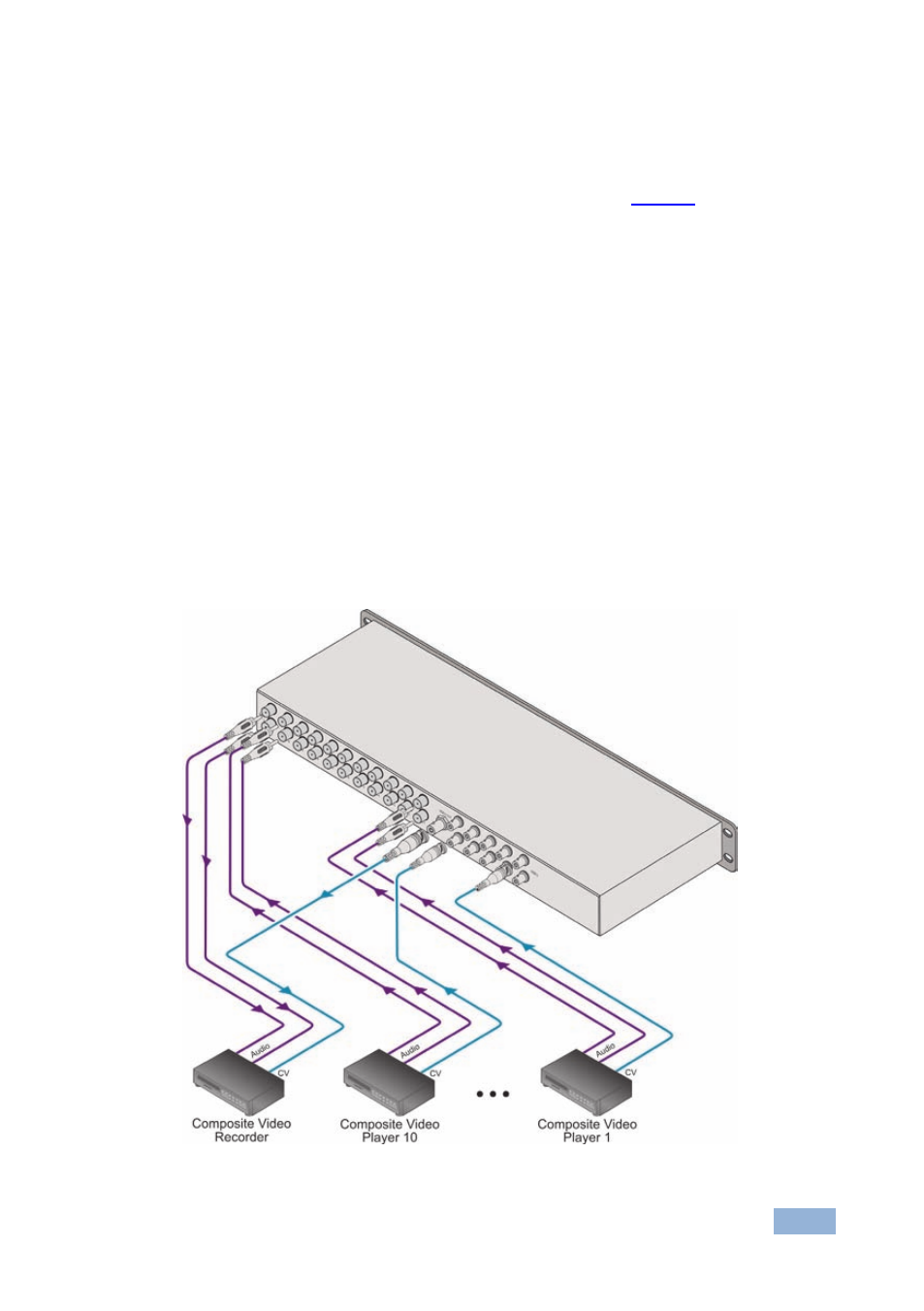

Figure 5: Connecting the VS-101AV
