4 VS-41AV, VS101AV, VS-4X - Overview
3.1 Defining the VS-41AV 4x1 Audio-Video Switcher
The VS-41AV is a high-performance mechanical switcher for composite video and
unbalanced stereo audio signals. It switches any one of four inputs to a single
output.
The VS-41AV features:
•
High bandwidth of 520MHz (-3dB)
•
Mechanical (passive) switching that requires no power
•
Compact desktop size. Two units can be rack mounted side-by-side in a 1U
rack space with the optional RK-81 adapter
Figure 1 defines the VS-41AV.

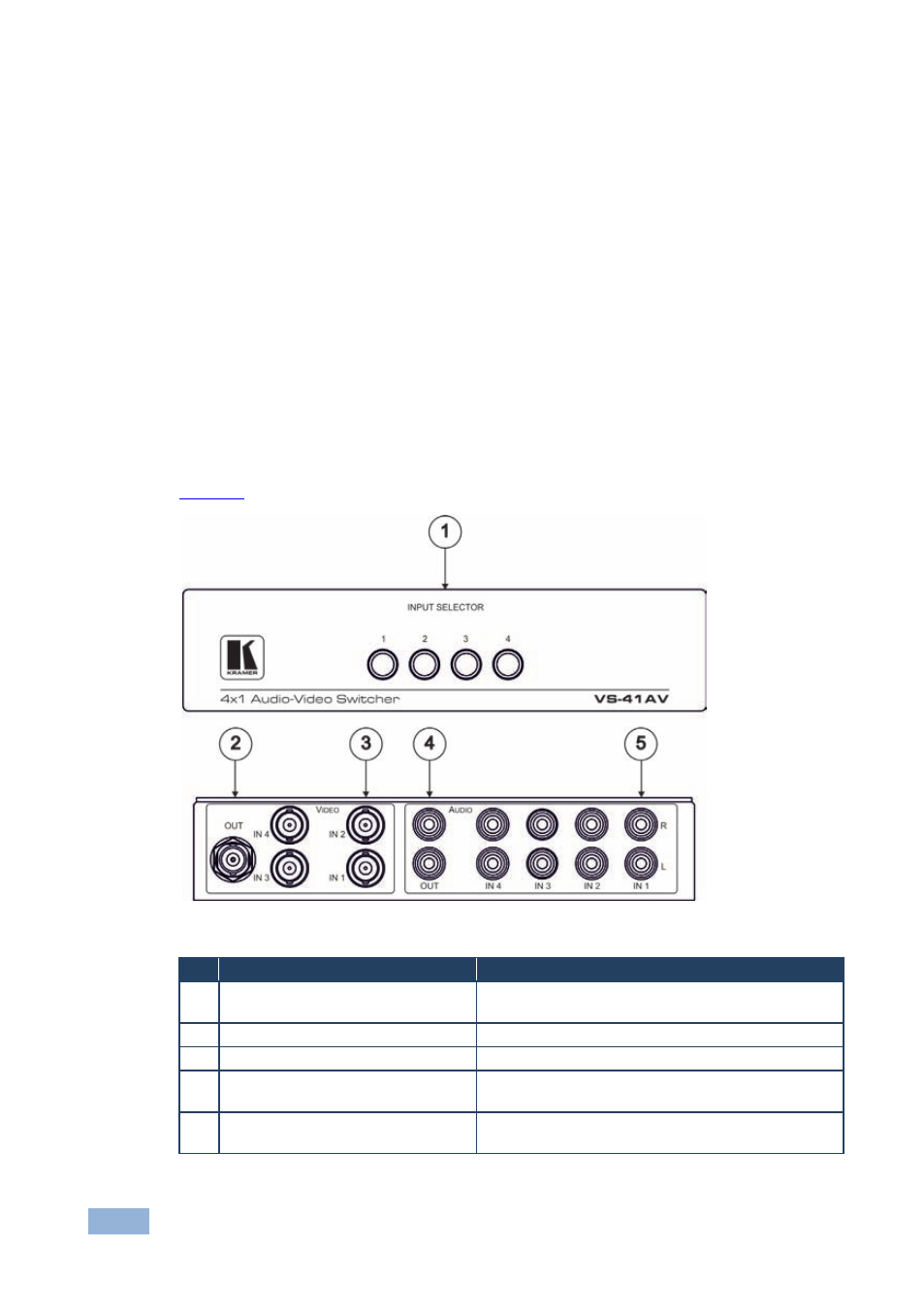

Figure 1: VS-41AV 4x1 Audio-Video Switcher
# Feature Function
1 INPUT SELECTOR Buttons (1-4) Press to choose which input to switch to the
output
2 VIDEO OUT BNC Connector Connect to a composite video acceptor
3 VIDEO IN (1-4) RCA Connectors Connect to up to 4 composite video sources
4 AUDIO OUT RCA Connectors Connect the right and left channels to an
unbalanced stereo audio acceptor
5 AUDIO IN (1-4) RCA Connectors Connect the right and left channels to up to 4
unbalanced stereo audio sources
