KRAMER ELECTRONICS LTD. 7
4.1 Getting to Know Your VP-61xl Switcher
The Kramer VP-61xl is a 6x1 switcher for VGA/XGA and Balanced Stereo
Audio signals. It is designed to route one of up to six inputs to one output using
15pin HD female connectors for the VGA/XGA signals, and detachable terminal
block connectors for audio. Bandwidth exceeding 400MHz ensures transparent
VGA/XGA performance. The inputs and output are directly coupled, and
conform to the highest standards. The VP-61xl can be controlled by front panel
switches, or remotely by RS-232 serial commands transmitted by a touch screen
system, personal computer, or other serial control device. It is housed in a
rugged, professional rack mountable enclosure.

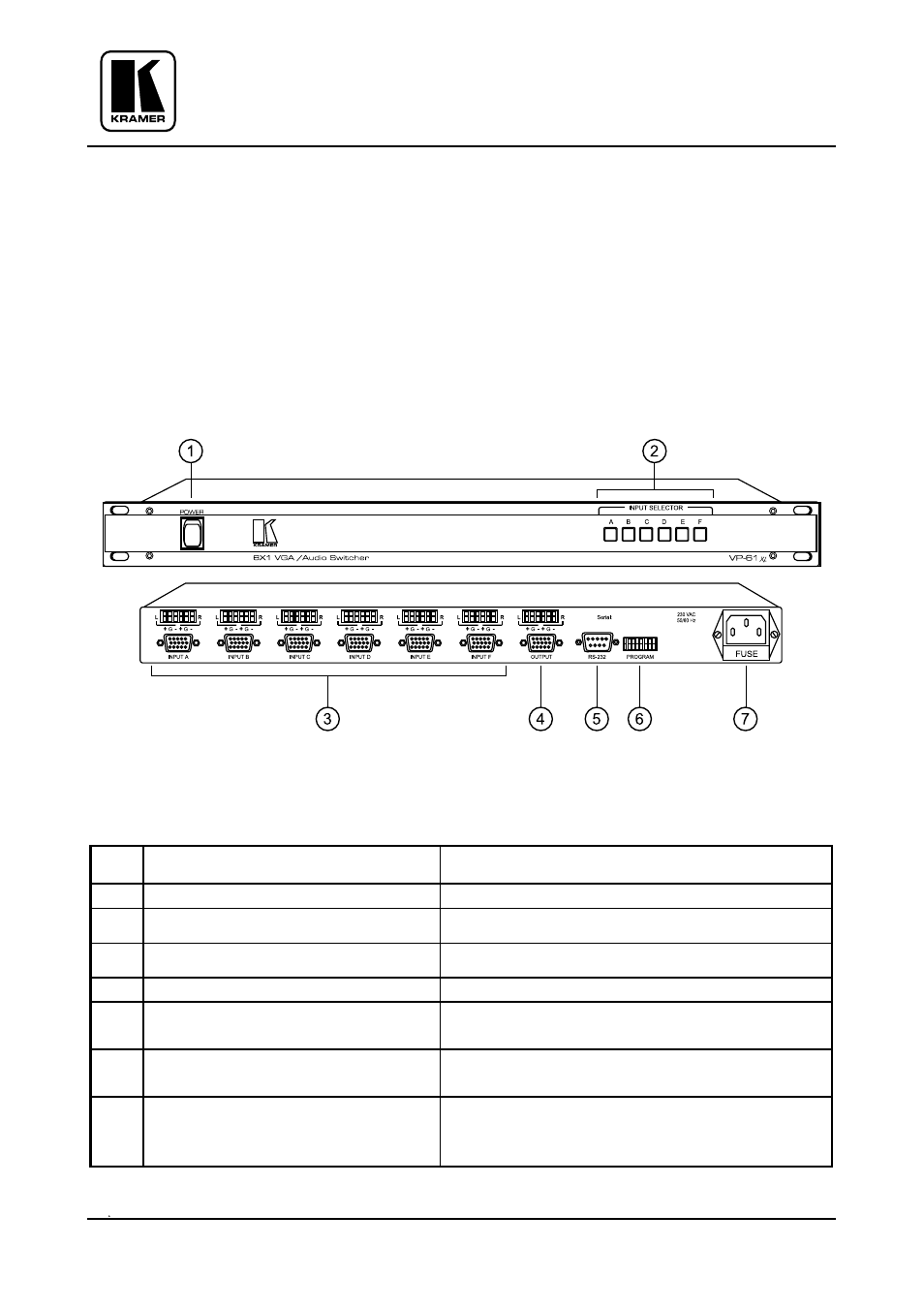

Figure 1: VP-61xl Front/Rear Panel Features
Table 1: VP-61xl Front/Rear Panel Features
No. Feature Function
1 Illuminated power switch Supplies power to the unit.
2 INPUT SELECTOR switches Select the desired input to be switched.
3 INPUT A-F connectors 6 VGA/XGA/Balanced Audio inputs.
4 OUTPUT Connectors VGA/XGA/Balanced Audio output.
5 RS-232 (DB-9 female connector) Used for control of the switcher from a PC
through an RS-232 interface.
6 PROGRAM Dip Switches Allow proper configuration of the RS-232
control signals.
7 Power connector A 3-prong AC connector allows power to be
supplied to the unit. The fuse is located in the
connector.
