Page 11

KRAMER ELECTRONICS LTD.

Note:

The Slave "Reply" settings are all ON or all OFF, depending on the requirements

of the system. The Master "Reply" setting is always ON.

9 CONNECTING TO A PC

To connect directly to a PC use the KRAMER Null-Modem Adapter

(recommended) plug one end into the PC's serial port, then connect a 9-pin flat-

cable from the other end to the switcher. To connect without using the KRAMER

Adapter, make connections as in Figure 2, When multi-machines are to be

connected together, make the connections as in Figure 3, or extend pins "5" and

"9" only.

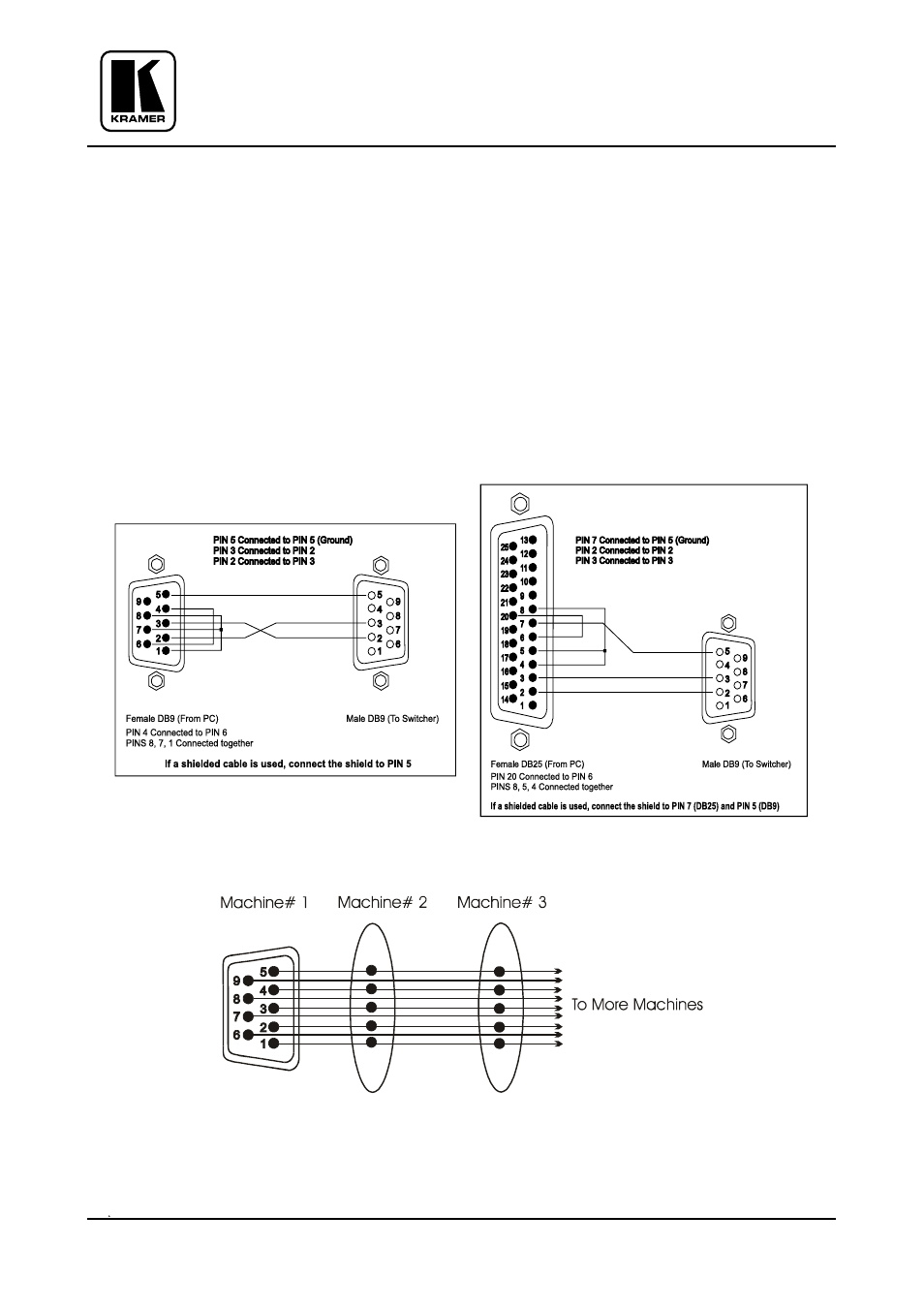

Figure 2: RS-232 Control Connector Wiring

Figure 3: Connecting Multi-Machines
