Connecting the VP-411DS 4x1 Automatic UXGA / Audio Switcher

11

5.4 Connecting a PC

You can connect a PC (or other controller) to the VP-411DS via the RS-232 port for
remote control, and for upgrading the firmware.

To connect a PC to a VP-411DS unit, using the Null-modem adapter provided with the
machine (recommended):

• Connect the RS-232 9-pin D-sub rear panel port on the VP-411DS unit to the

Null-modem adapter and connect the Null-modem adapter with a 9-wire flat cable
to the RS-232 9-pin D-sub port on your PC

To connect a PC to a VP-411DS unit, without using a Null-modem adapter:

• Connect the RS-232 9-pin D-sub port on your PC to the RS-232 9-pin D-sub rear

panel port on the VP-411DS unit, forming a cross-connection

1

Figure 6

, as

illustrates

9-pin D-sub

(From PC)

9-pin D-sub

(To Switcher)

If a shielded cable is used, connect the shield to PIN 5

PIN 5 Connected to PIN 5 (Ground)
PIN 3 Connected to PIN 2
PIN 2 Connected to PIN 3

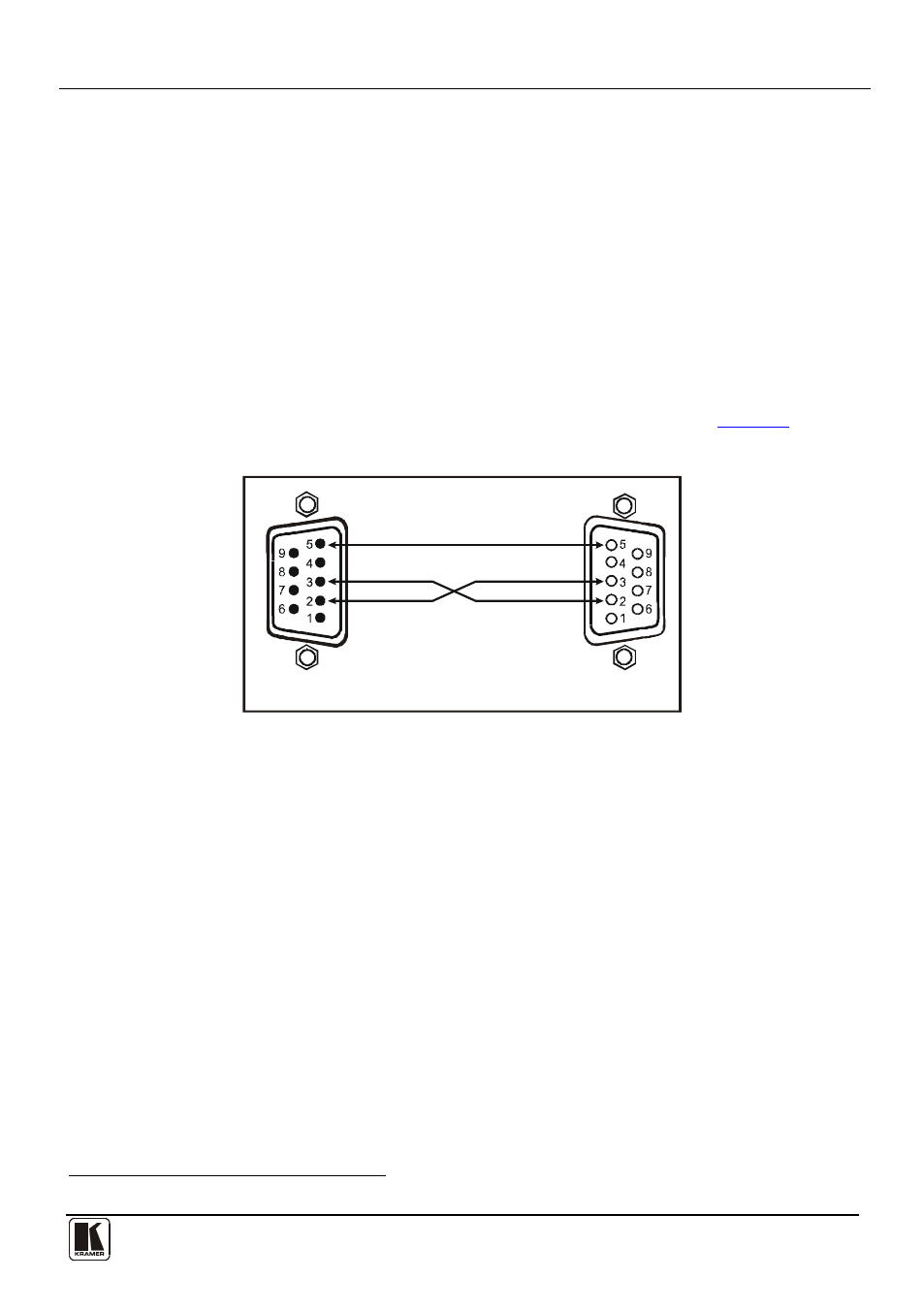

Figure 6: Connecting a PC













1 Also known as a Null-modem connection
