Page 12

KRAMER: SIMPLE CREATIVE TECHNOLOGY
Connecting the VP-411DS 4x1 Automatic UXGA / Audio Switcher
10
5.3 Connecting the REMOTE Terminal Block
The contact closure remote control pins operate in a similar way to the INPUT selector
button. Using the contact closure remote control you can select the UXGA input or cut
off the inputs. To do so, temporarily connect the required input
pin on the REMOTE
terminal block to the GND (Ground) pin, as
illustrates.
DO NOT connect more than one pin to the GND pin at the same time

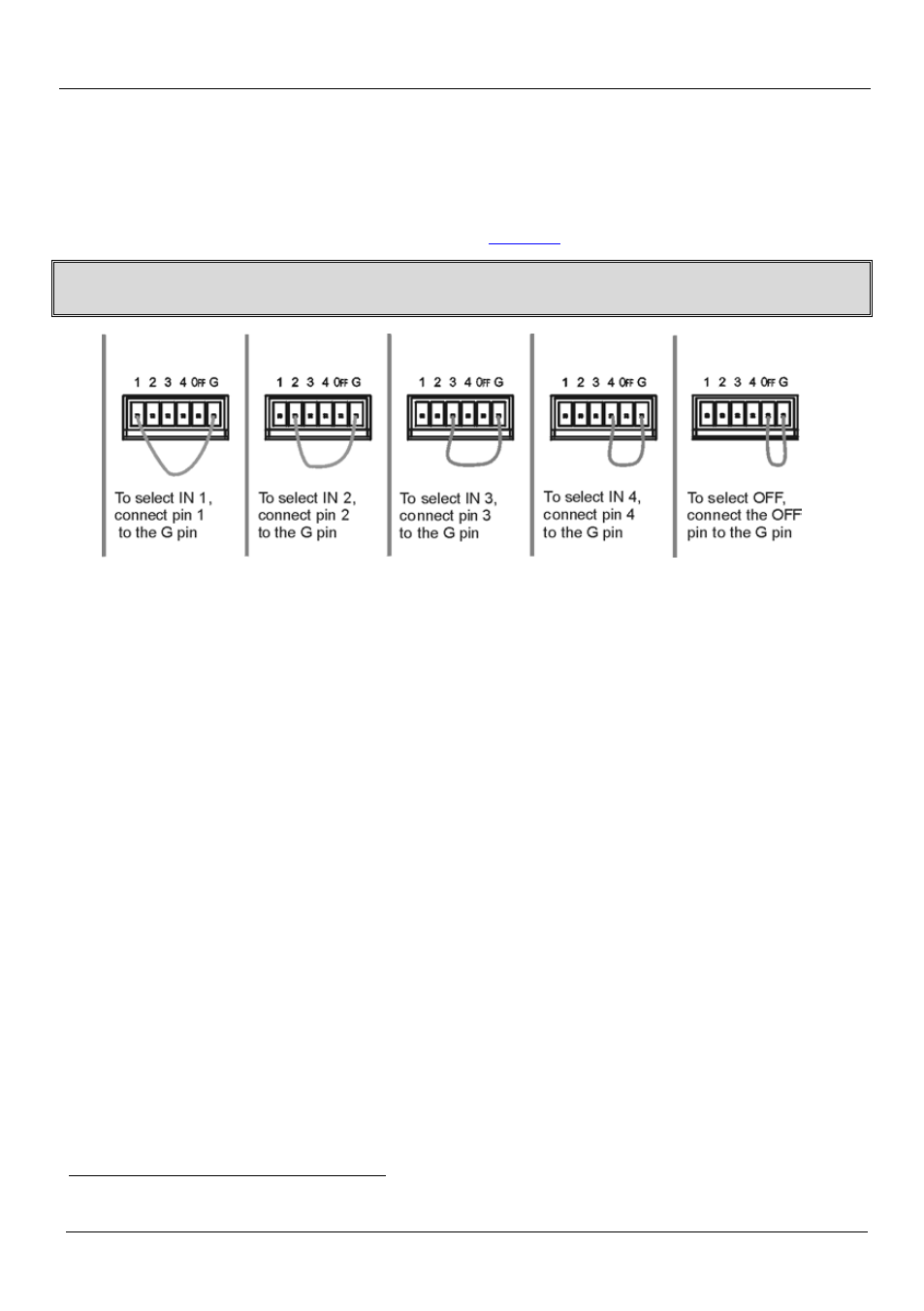

Figure 5: Connecting the Contact Closure Remote Control Pins
1 IN1, IN 2, IN 3 IN 4, or OFF
