When mounting on a desktop stand
30r
45r
60r
■ Connections
LAN/PoE
A
A
AUDIO
OUTPUT
DC24V
P
CAT5e/6
NP
*1: A power supply unit is not needed when using a switch or injector that has a PoE (Power over Ethernet) function. The unit is supplied with power
along with data signal via a LAN cable.
NOTES:
Do not use the unoccupied terminals and ports for other purposes. •
In order to prevent miswiring, label both ends of each cable with the unit and terminal names to which they are to be connected. •
For connecting other manufacturer’s products, refer to the instruction manuals for those products. •
The illustration of the unit’s rear panel differs from the actual one. This is for simplifying the connection diagram. •
NOTES:
Attach the screws to the screw holes for 3-gang box on the mounting bracket to make both •
sides of the mounting bracket contact the desktop stand.
If necessary, secure the CAT5e/6 cable with the tie-wrap (included). •
The unit
Screw (for desktop stand) × 4
(included)
Desktop stand
(included)

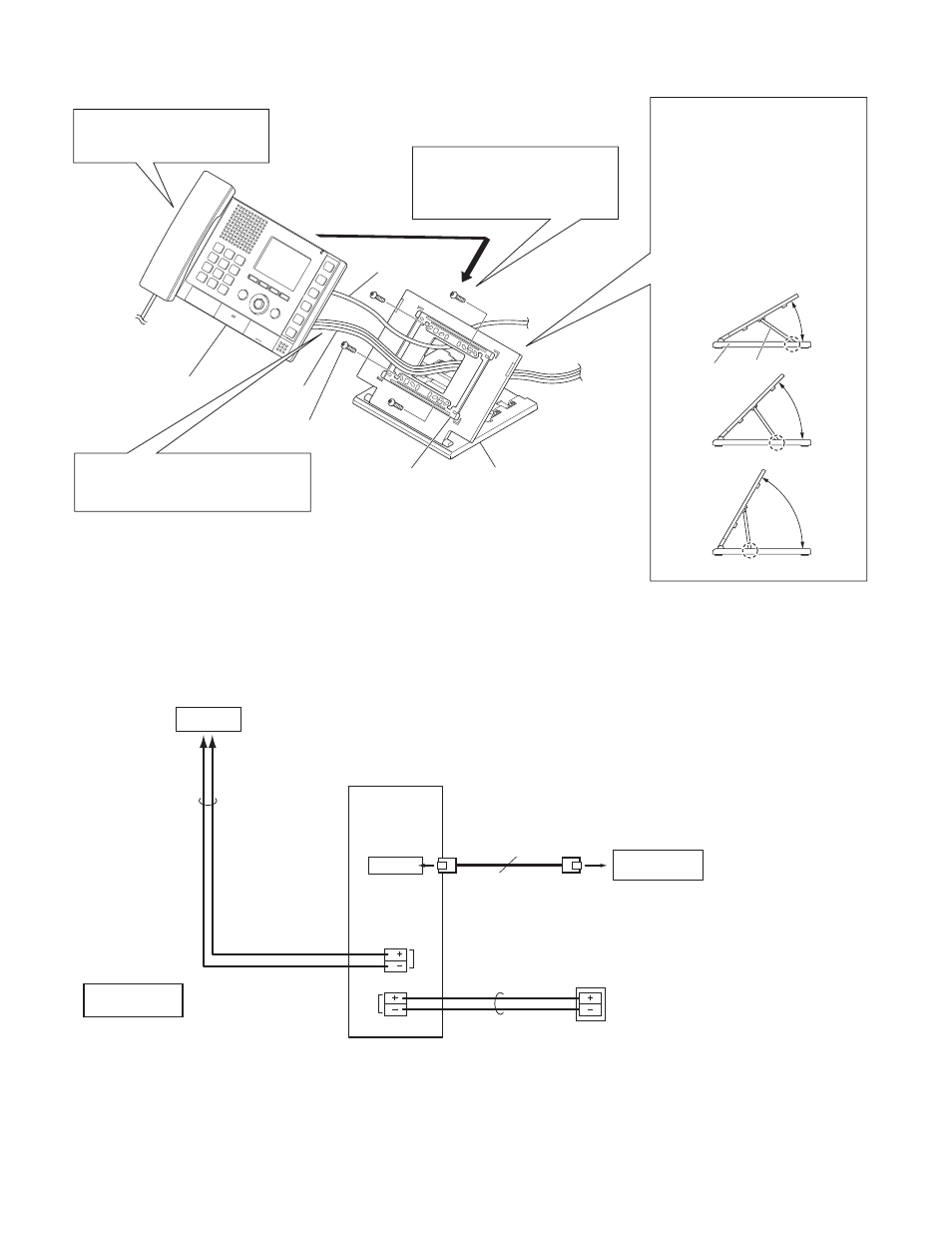

Set up the desktop 1
stand.
Set up the desktop stand on *
a level surface etc. so that it
is stabilized. Fix the desktop
stand in place if needed.
The desktop stand allows you
*
to adjust it in 3 setup angles.
Put the leg in a groove on the
base that corresponds to the
desired angle.
Fasten the mounting 2
bracket to the desktop
stand.
Connect the CAT5e/6 cable 3
and option wires to the unit.
Mount the unit on the 4
mounting bracket.
Leg Base
Audio output
(50mVrms, 600Ω)
Audio
recorder, etc.
(non-shielded)
Switch (Hub)
Power supply unit *1
(PS-2420/D/UL/S)
Mounting bracket
(attached to the unit
with shipment)
Option wires
(and power wires)
CAT5e/6 cable
15m (50')
100m (330')
15m (50')
φ0.65-1.2 (22-16AWG)-2C
10BASE-T/100BASE-TX
φ0.65-1.2 (22-16AWG)-2C
NP: Non-polarized
P: Polarized
