Wiring the Twisted Pair RJ-45 Connectors

14

6

Wiring the Twisted Pair RJ-45 Connectors

This section defines the TP pinout, using a straight pin-to-pin cable with RJ-45 connectors.

i

Note, that the cable Ground shielding must be connected/soldered to
the connector shield.

EIA /TIA 568B

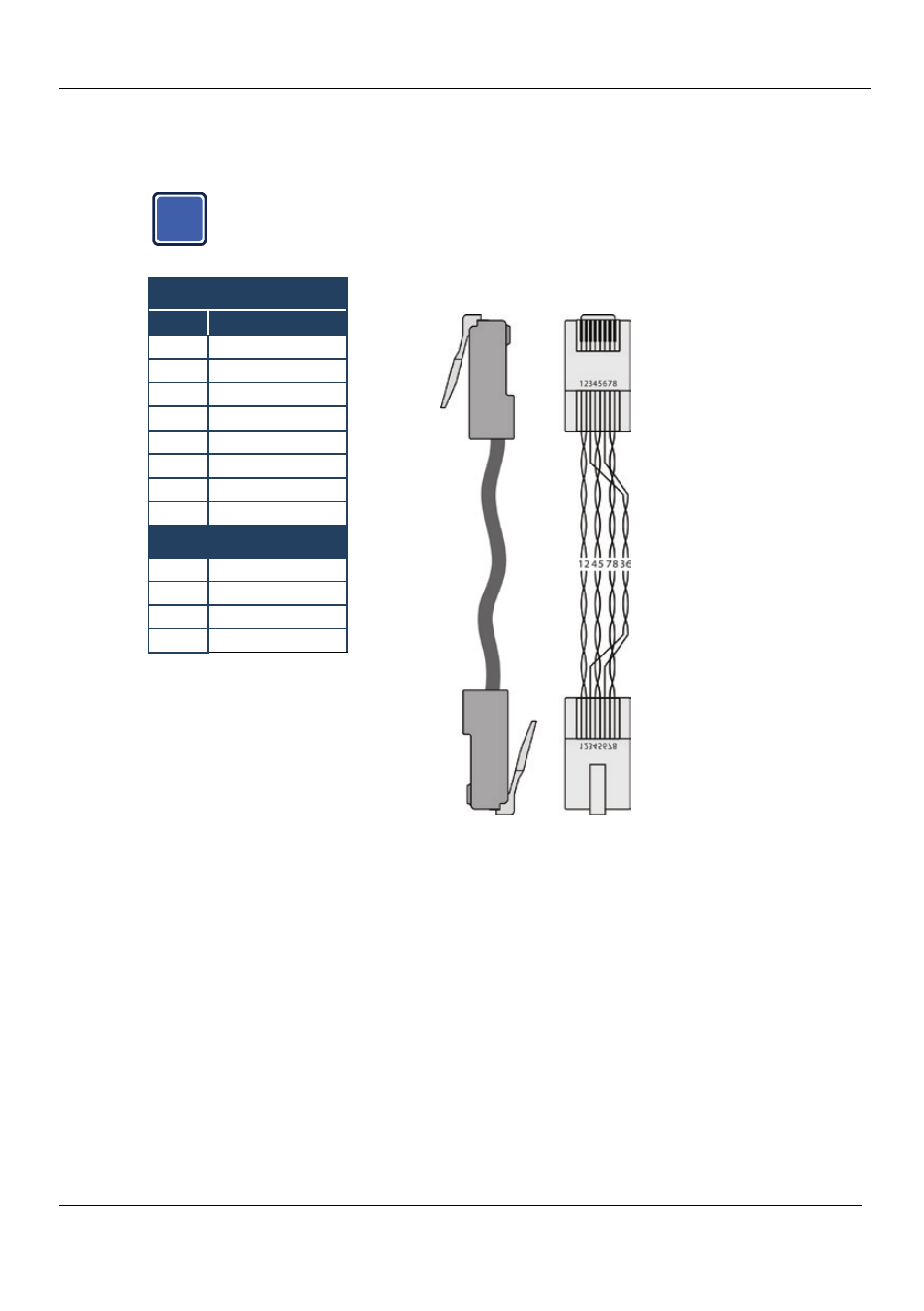

Figure 8: TP Pinout Wiring

PIN

Wire Color

1

Orange / White

2

Orange

3

Green / White

4

Blue

5

Blue / White

6

Green

7

Brown / White

8

Brown

Pair 1

4 and 5

Pair 2

1 and 2

Pair 3

3 and 6

Pair 4

7 and 8
