6 Commissioning
Commissioning ć preparation
Rough adjustment of an end position
Please note

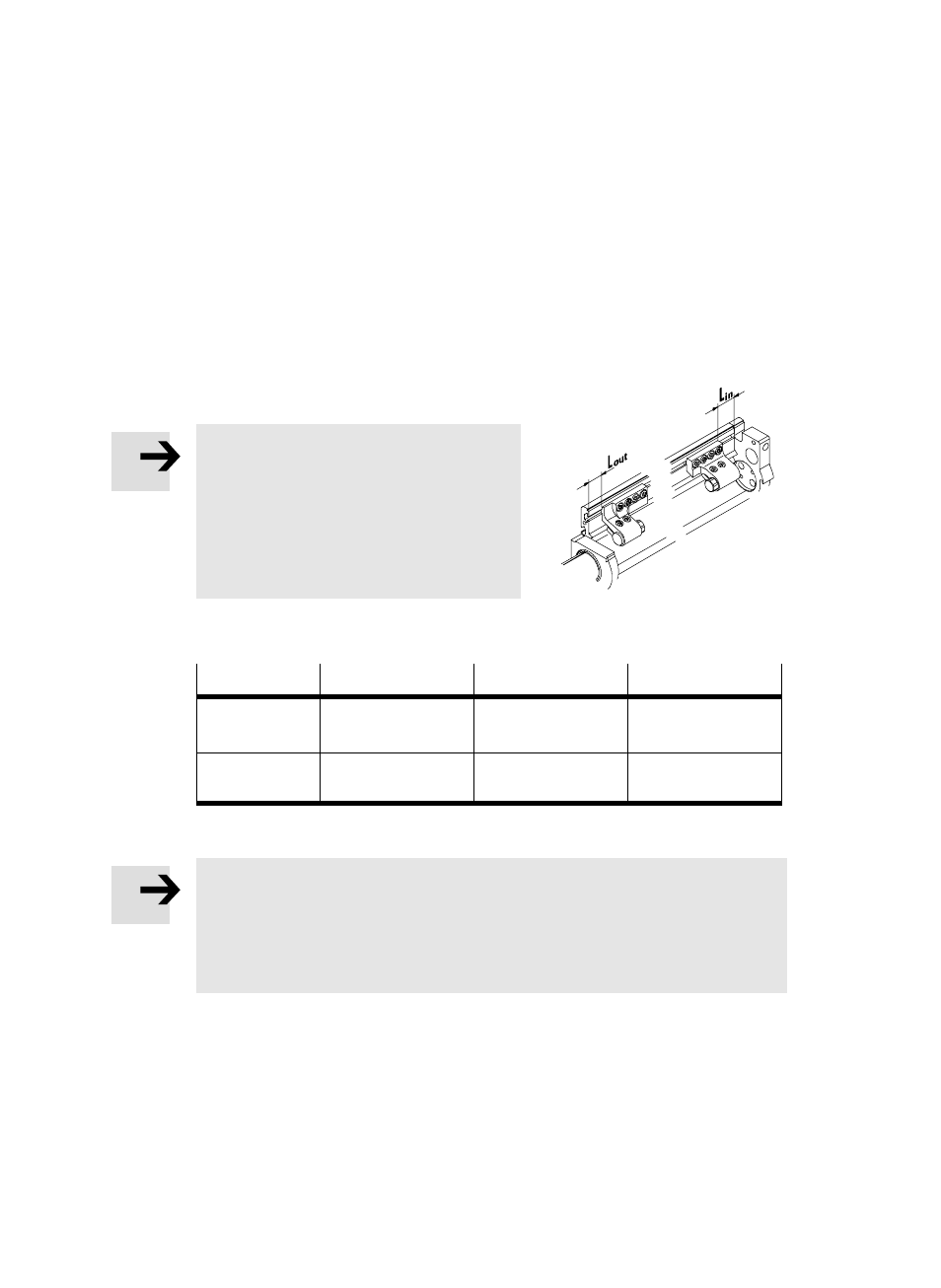

S Make sure that the minimum distance L
of the stop on the extended and reĆ
tracted end positions is not exceeded.
Otherwise the piston will strike
unbraked against the mechanical end
position.
The minimum distances L are listed in the following table:
HMP−... 16 20 25/32
Dimension L
out
(extending)
19.5 mm 27 mm 0.5 mm
Dimension L
in
(retracting)
0.5 mm 0.5 mm 0.5 mm
Fig. 26
Please note
S Make sure that the stop is screwed in completely.
Otherwise the accurate adjustment of this end position can only be made to a
limited extent. If necessary, loosen the locking screw aG and screw the stop
in again completely.
Fig. 25
