DGO−...−A−B
Festo DGO−...−A−B 0410b English
21
Fitting the work load:
S Place the work load so that the tilting torque of force F
ax
parallel to the
movement axis and lever arm a" remains low (see Fig. 8).
S Observe the maximum values for radial force F
rad
(see Fig. 8).
150
200
500
1000
100
50
30
20
10
F
ax
a [mm]
F
ax [N]
H [mm]
H
F
rad
a
F
rad [N]
DGO−12
DGO−16
DGO−20
DGO−25
DGO−32
DGO−40

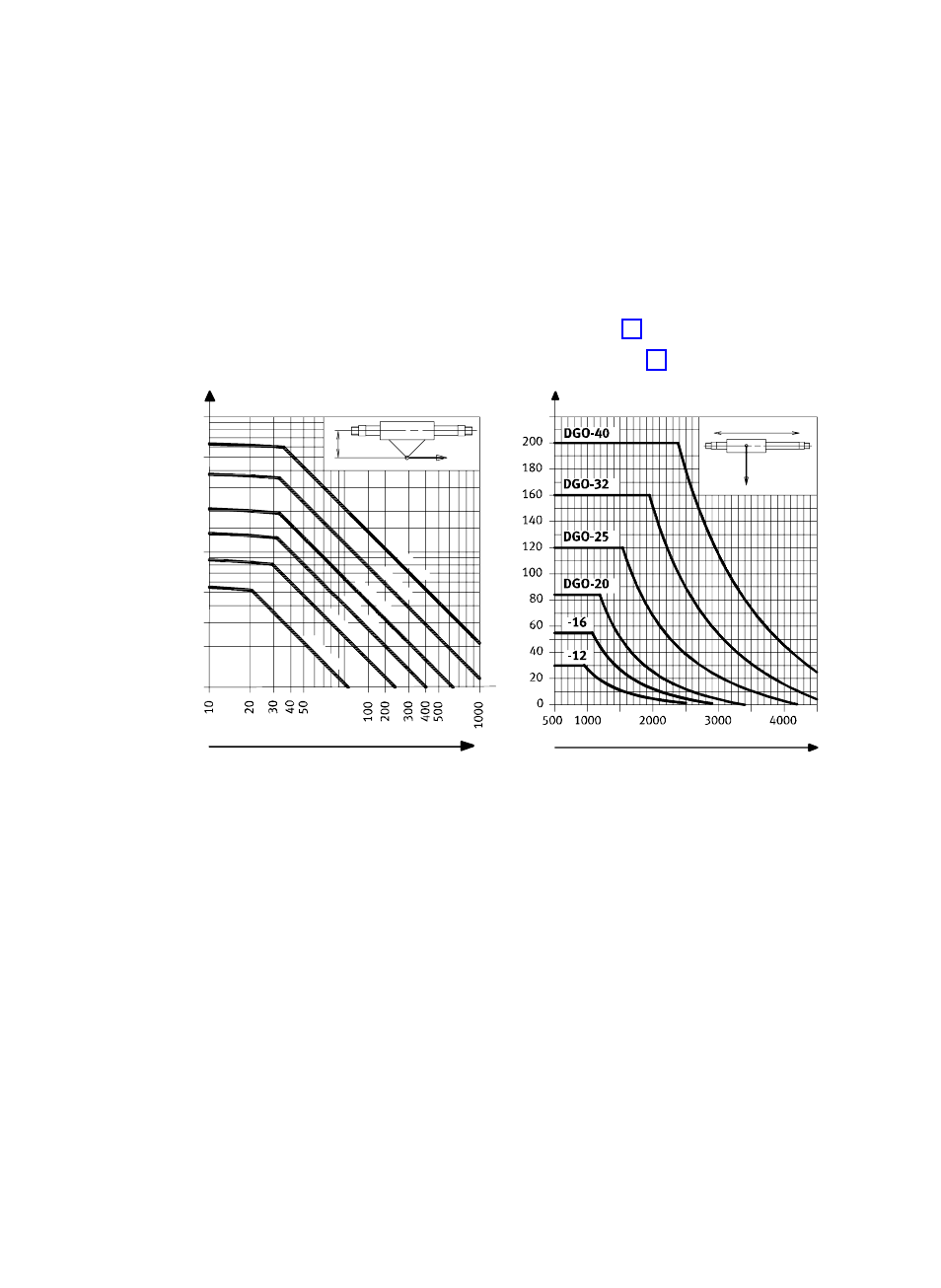

Fig. 8
