Installation
1. Identify the connectors on the Transmitter and Receiver as indicated on the product
labels.
2. Verify that the distance between the HDMI Transmitter and Receiver is within MuxLab
specifications (see Specifications table).
3. To install the Transmitter:
3a. Connect the Transmitter to the SDI video source with a BNC 75-ohm coaxial
cable.
3b. Connect one (1) lengths of Cat 5e/6 (or higher) grade UTP cables to the
RJ45 LINK connectors on the Transmitter. Use a straight-through cable only.
3c. Install the unit in a location with adequate ventilation.
4. To install the Receiver:
4a. Connect the Receiver to the SDI display equipment with a BNC 75 ohm compliant
cable.
4b. Connect the one (1) Cat 5e/6 cables to the RJ45 LINK connectors on the Receiver.
4c. Install the unit in a location with adequate ventilation. Note: The receiver
becomes hot (44 degrees Celsius at room temperature).
5. Connect a 12 VDC power supply to each unit, and then plug the power supply into
an AC power outlet. If power is present, the green Power led should be ON and the
SDI Sync led should flashed. If cable is correctly connected the RJ45 Sync led
should be ON.
6. Power the equipment and verify the image quality. If signal is valid the RJ45 Sync
LED should be ON and the SDI Sync LED should stop flashing.

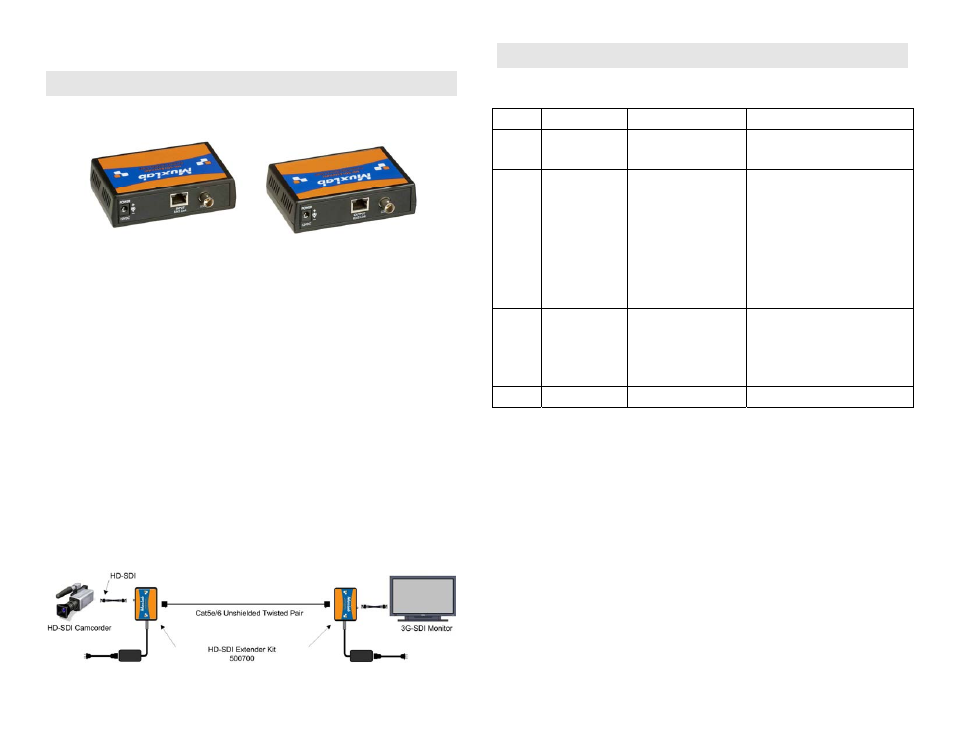

7. The following diagram shows the final configuration.
Troubleshooting
The following table describes some of the symptoms, probable causes and possible solutions
in respect to the installation of the HD-SDI Extender Kit:
LEDS Status Possible cause Action
PWR OFF No AC power or
defective power supply. Try swapping the two power
supplies.
RJ45
SYNC
OFF No functional link
between the 2 units.
Remote unit off or
defective.
UTP cable not
connected.
Bad UTP cable.
Cable too long.
Turn on remote unit.
Cable must be straight-through and
not crossed.
Cable must be Cat5e/6 or better.
Length must be 330 ft (100m) or
less.
SDI
SYNC
OFF No valid SDI signal,
unsupported format or
coax too long.
No SDI signal or
invalid signal.
Turn on SDI equipment.
Try with a good short 75 ohm coax
cable.
If you still cannot diagnose the problem, please call MuxLab Customer Technical Support at
877-689-5228 (toll-free in North America) or (+1) 514-905-0588 (International).
