Specifications

Environment

HD CCTV, HD-SDI

Device Targeted

HD-SDI (up to 1080i) CCTV equipment that need to bring power
and control using a single UTP cable.

Compatible TX Unit

500720, 500720-CL

Compatible Mounting
Hardware

500902, 500900, 500910, 500915

Signal Transmission

Signal: SDI (no analog signal)
Power: 12VDC or 24VAC 2A max
Control signal: any signal using a balanced pair, 60V 1A max

Cabling Requirement

Any 4-pair straight cable Cat5e or 6, 24 AWG or lower

Power Requirements

12VDC 90mA, coming from the same power line as source
24VAC 60mA, coming from the same power line as source
5V 130mA using the external wall mount power supply

Visual Indicators

One for power.
One for SDI signal present.

Connectors

One 75 ohm, BNC connector, female.
One 4 pin terminal block for power and signal.

RJ45 Pin Configuration

Pin 7-8 for SDI signal
Pin 1+3, 2+6 for power (1&3 in parallel, 2&6 in parallel)
Pin 4-5 for control

Maximum distance

SD: 150m (500ft) for CAT 5E UTP,
150m (500ft) for CAT 6 UTP.
HD: 30m (120ft) using Cat 5E UTP,
45m (150ft) for CAT 6 UTP.

Note: Maximum distance is function of the receiving equipment.
Dedicated Cat5E/6 cables are recommended with no patch panels.
This balun will not work in 3G.

Temperature

Operating: -25° to 60°C (-13° to 140°F)
Storage: -40° to 85°C (-40° to 185°F)

Humidity

Maximum 95% (non-condensing)

Enclosure

ABS UL94HB fire retardant plastic

Dimensions

6 x 5.5 x 2.5 cm (2.4” x 2.25” x 1.0”)

Weight

70g (2 oz.)

Warranty

2 years

Order Information

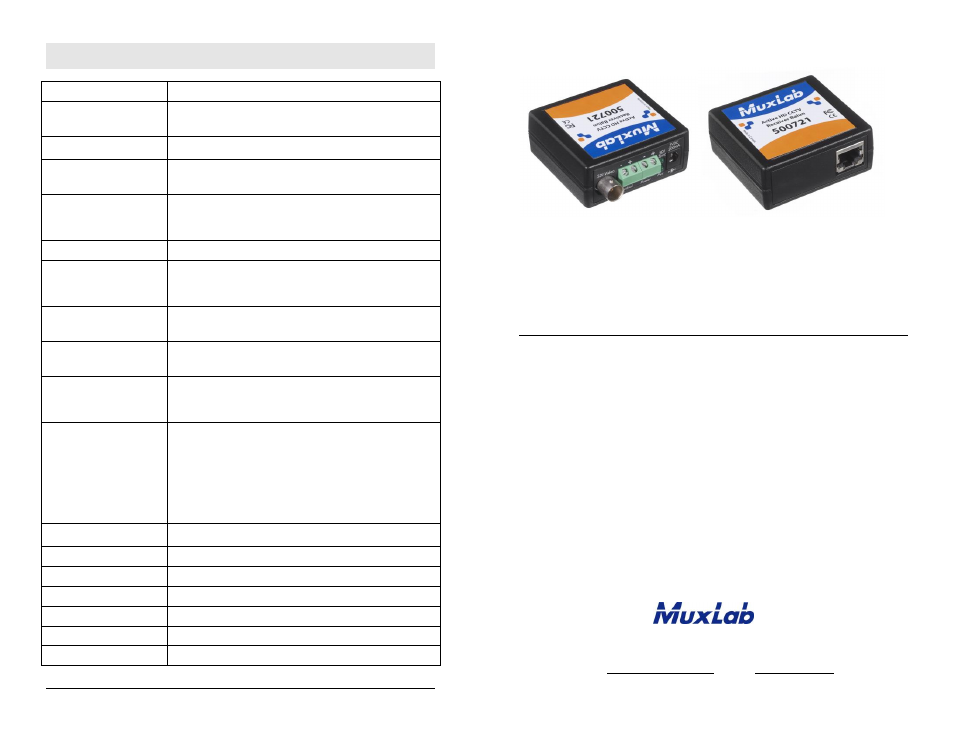

M500721 Active HD CCTV Receiver Balun


Active HD CCTV Receiver Balun

500721

Quick Installation Guide

Overview
The Active HD CCTV Receiver Balun (500721) allows one HD-SDI signal with power
and control lines to be transmit up to 150 ft. (45m) via a Cat6 cable at HD resolution
(720p, 1080i) in a point-to-point configuration. The 500721 supports the transmission
of SDI digital video signal (including embedded Audio and/or Time Code) within
facilities and between video equipment. The 500721 is installed at the receiver location
and used in conjunction with the 500720 or 500720-CL installed at the remote camera
location.

Applications
HD CCTV surveillance system
HD-SDI camcorder systems
