Specifications
Environment HD CCTV, HD-SDI
Device Targeted HD-SDI (up to 1080i) CCTV equipment that need to bring power
and control using a single UTP cable.
Compatible RX Unit 500720, 500720-CL, 500721
Signal Transmission Signal: SDI (no analog),
Power: 12VDC or 24VAC 2A max,
Control signal: any signal using a balanced pair, 1A max.
Cabling Requirement Any 4-pair straight cable Cat5e or 6, 24 AWG or lower.
Connectors and cables One 75 ohm cable with a male BNC connector.
Two pairs of wire for power and signal.
RJ45 Pin Configuration Pin 7-8 for SDI signal
Pin 1+3, 2+6 for power (1&3 in parallel, 2&6 in parallel)
Pin 4-5 for control
Maximum distance When used with 500721:
SD: 150m (500ft) for CAT 5E UTP,
150m (500ft) for CAT 6 UTP.
HD (720p, 1080i): 45m (150ft) using Cat 5E UTP,
45m (150ft) for CAT 6 UTP.
When used with another 500720-CL or 500720:
SD: 120m (400ft) for CAT 5E UTP,
150m (500ft) for CAT 6 UTP.
HD (720p, 1080i): 30m (100ft) using Cat 5E UTP,
35m (120ft) for CAT 6 UTP.
This balun will not work in 3G (1080p).
Note: Maximum distance is function of the receiving equipment.
Dedicated Cat5E/6 cables are recommended with no patch panels
Temperature Operating: -40° to 60°C (-40° to 140°F)
Storage: -40° to 85°C (-40° to 185°F)
Humidity Maximum 95% (non-condensing)
Enclosure Cast Aluminum
Dimensions 2 x 2.6 x 4.7 cm (0.8” x 1.85” x 1.05”) excluding cables.
Weight 60g (2 oz.)
Warranty Lifetime

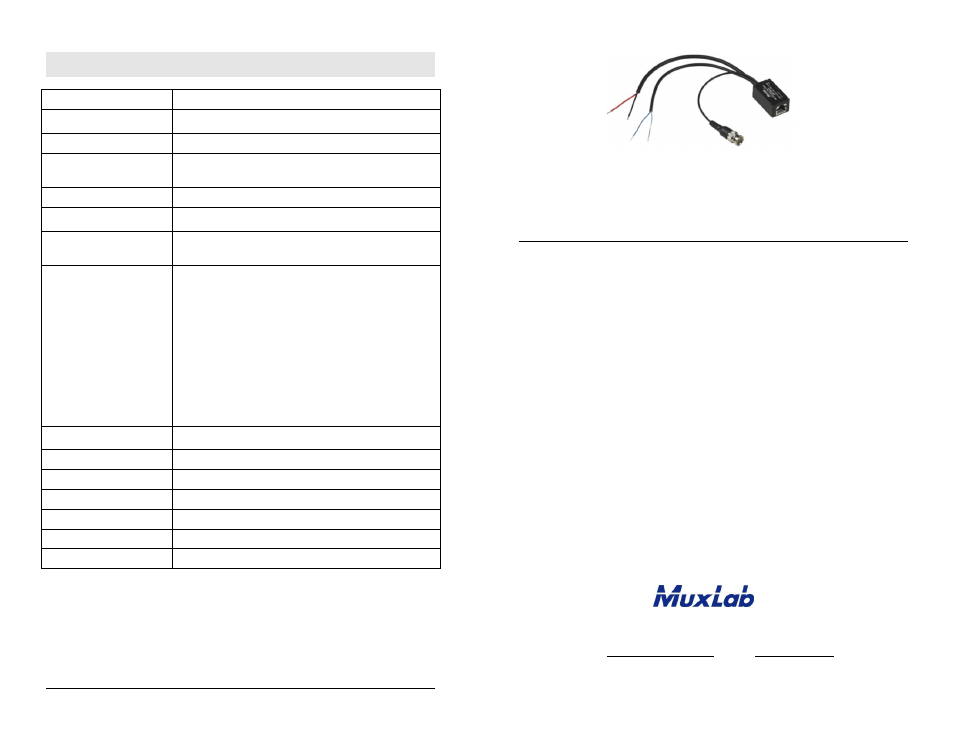

Order Information 500720-CL HD CCTV Pass-Thru Balun with Cable Leads
HD CCTV Pass-Thru Balun
500720-CL
Quick Installation Guide
Overview
The HD CCTV Pass-Thru Balun with Cable Leads (500720-CL) allows one HD CCTV
(HD-SDI) video channel to be transmitted along with remote power and PTZ control via
a Cat5E or Cat6 cable at HD resolution (720p, 1080i) in a point-to-point configuration.
The 500720-CL supports transmission of SDI digital video (including embedded Audio
and/or Time Code) within facilities and between video equipment. The product is used
in conjunction with another 500720-CL or 500720 or in conjunction with the 500721
for greater distance.
Applications
HD-CCTV surveillance system
