Rugged Ridge 6-Piece Body Armor Kit, 97-06 Jeep Wrangler (TJ) User Manual
Page 6
Step 11: Position armor onto fender Make sure that it is evenly spaced before
applying any pressure to armor. When satisfied with placement apply pressure
to all areas to properly secure armor to vehicle. Reinstall the front turn signals
with supplied longer screws.
Do not over tighten turn signal screws or lens
assembly may crack.

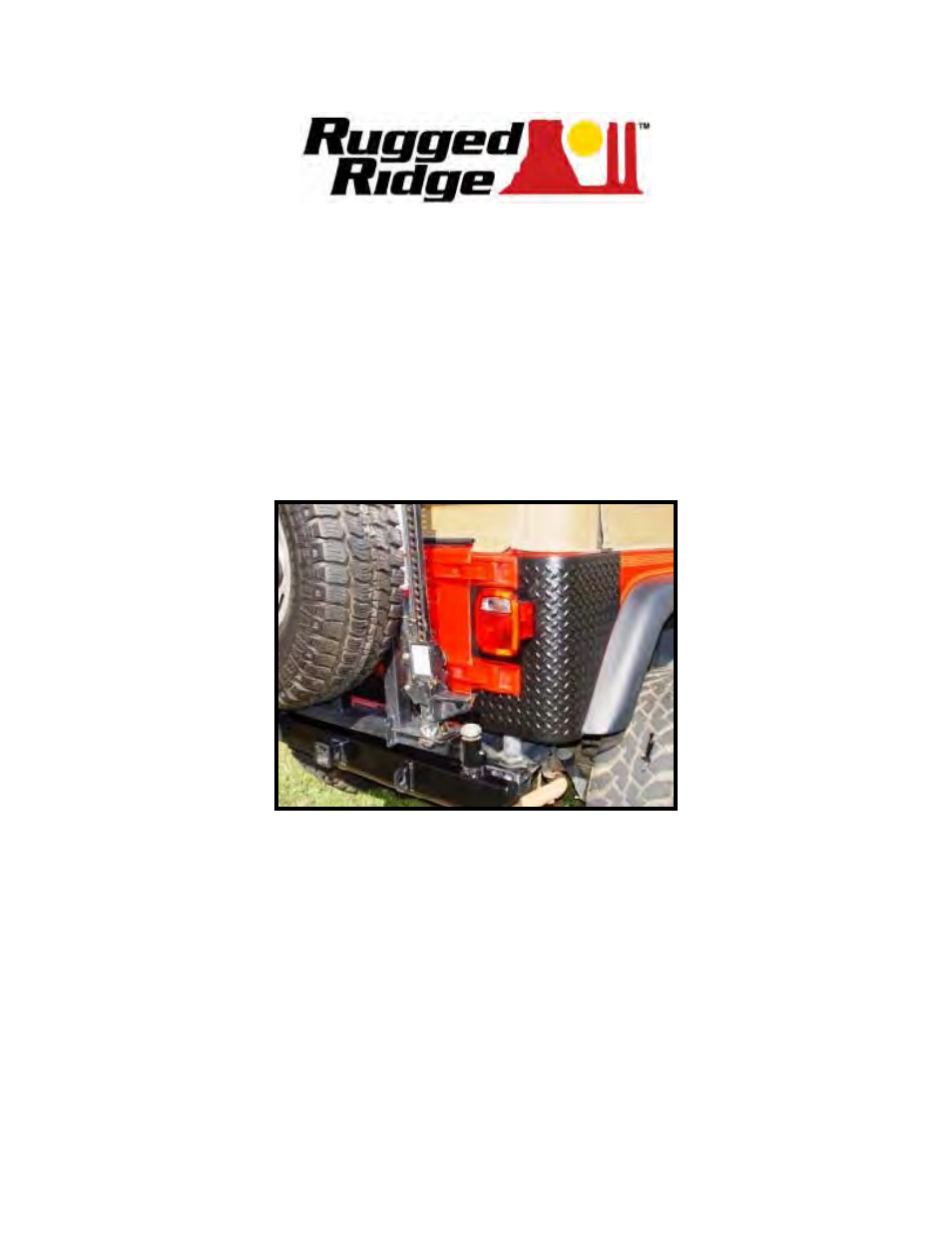

Part Number 11650.01 or 11650.02 (Rear Corner
Guards)
Step 12: Remove both left and right side rear tail light assembles. This will
require the removal of 3 bolts for each light that are assessable from the inside of
the tail light assembly and from the upper inside of the fender. The lower plastic
fender cover can be pulled back without removing. The left side license plate
holder and fuel filler neck will also be removed.
