Commissioning, Startup, Operation, and Shutdown

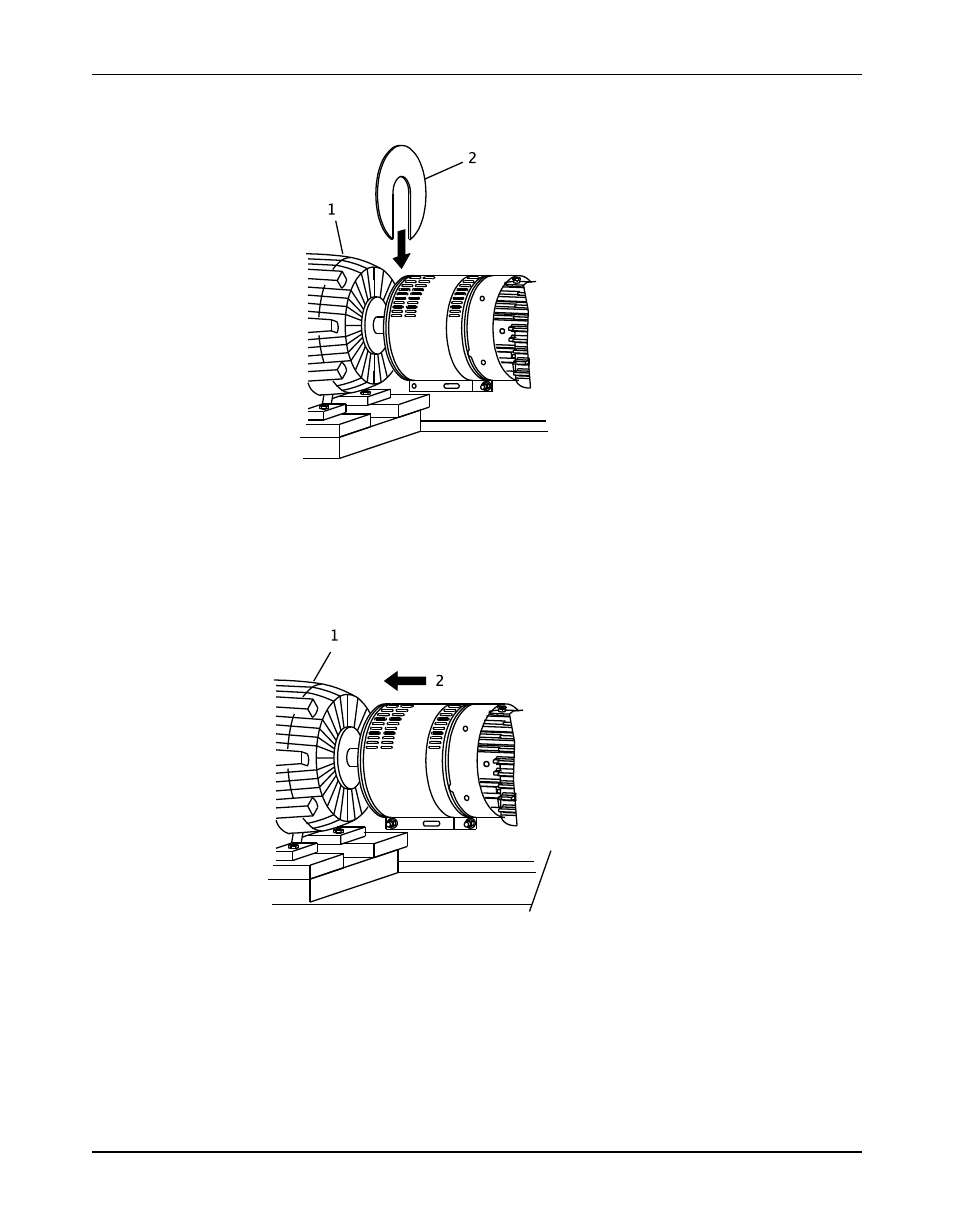

7. Place the end plate over the driver shaft and locate the end plate in the annular groove at
the rear of the coupling guard half.
1. Annular groove
2. End plate
8. Repeat steps 3 through 5 for the rear end of the coupling guard half, except that you hand
tighten the nut.
9. Slide the rear coupling guard half towards the motor so that it completely covers the shafts
and coupling.
1. Driver
2. Slide to fit
10. Repeat steps 3 through 5 for the center slots in the coupling guard.
11. Firmly tighten all nuts on the guard assembly.
Model 3640 Installation, Operation, and Maintenance Manual 37
