2.2. Cabinet Frame/Base Assembly

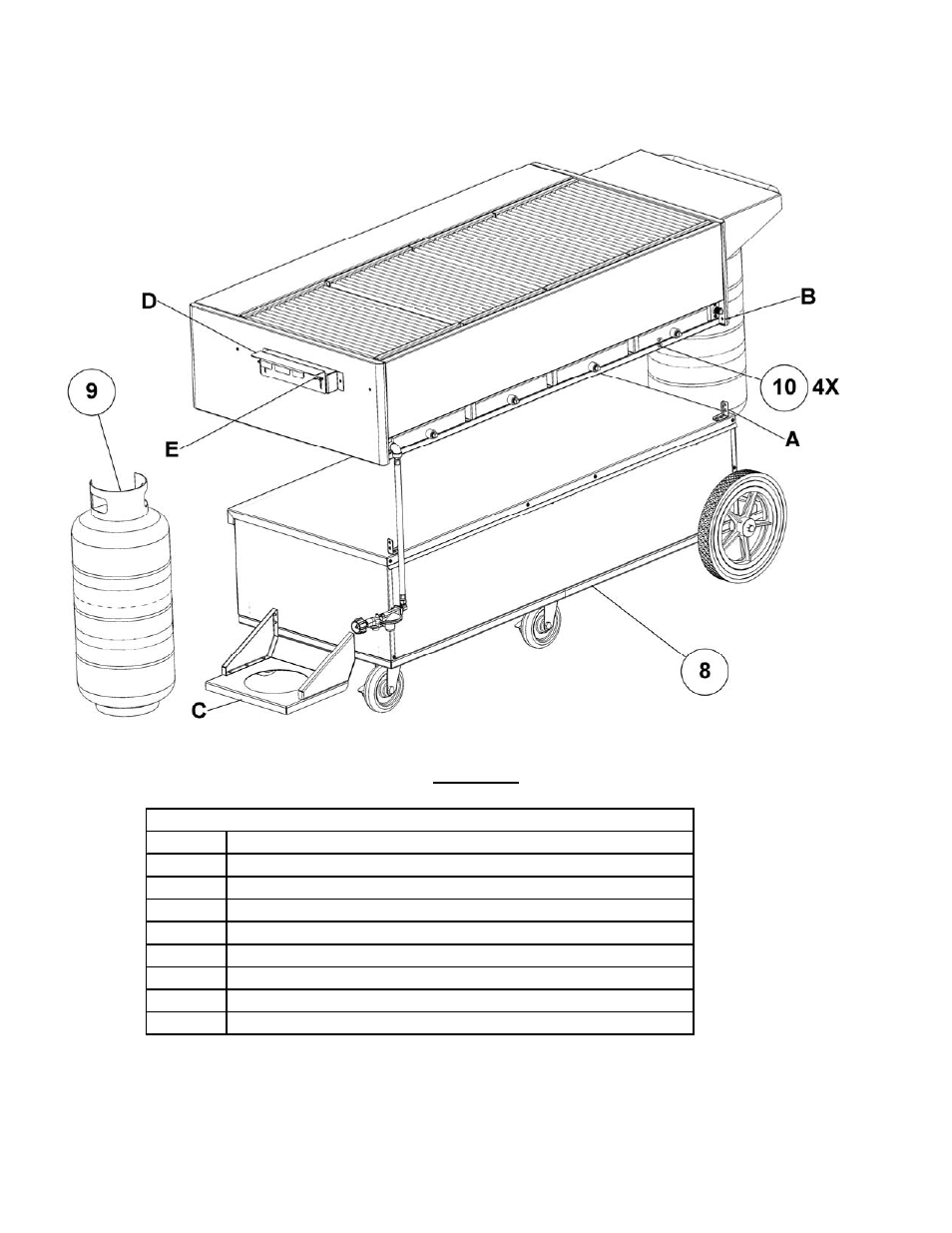

FIGURE 3
Note: Service shelf not shown in Figure 3 for clarity.
A. Slide cabinet frame assembly onto the base so that the clearance holes in the cabinet frame support bracket (A) are
aligned with ¼-20 threaded inserts (B) of the cabinet frame.
B. Secure the cabinet frame to the base using the provided ¼-20 bolts, tighten the bolts to 1-2 turns past
hand tight to make sure the assembly is secure.
ITEM #
8
9
10
A
B
C
D
E
BOTTLE, CYLINDER RETAINER BRACKET
CABINET FRAME/BASE ASSEMBLY LEGEND, FIGURE 3
WINGNUT, 1/4‐20 UNC
PROPANE CYLINDER, 40 LB. VERTICAL
BOLT, 1/4‐20 UNC SST HEX HEAD
CABINET FRAME SUPPORT BRACKET
1/4‐20 UNC THREADED INSERTS
BOTTLE, BASE SUPPORT BRACKET
DESCRIPTION
MOBILE BASE, (SHOWN WITH OPTIONAL EZROLL WHEELS)
