5. Water Tubs, (Drain Optional)
When used as intended with water, the water tubs reduce grease flare up, and make cleanup easier.
6. Pilot Runner Tube Spark Ignitor
Battery operated spark system that ignites the pilot runner tube.
7. Side Burner Spark Ignitor, (If Equipped)
Battery operated spark system that ignites both the front and rear side burners individually.
8. Stainless Steel Cooking Grate(s)
Commonly referred to as top grids, these are provided as standard parts with the appliance.
9. Chrome Plated Griddle, (Optional Equipment)
To use the griddle plate option, replace one (1) cooking grate where desired.
CAUTION:
Never try to remove a hot griddle or cooking grate, always allow the cooking surface to cool to room
temperature. Failure to do so cause result in severe personal injury, or death.
10. Front and Rear Side Burner(s), (Optional Equipment)
May not be available in certain locations on the appliance.
5. BASIC OPERATION
Fill water tubs to within
½” of top edges
(this will control grease flare-ups,
provide for ease of cleaning and keep
cooked foods moist). Re-fill tubs with
water when they evaporate to within
½”
of the bottom of the tubs. Failure to
keep water in the water tubs will lead to
grease fires and will void the warranty.
5.1. Main Burner Lighting Instructions DIAGRAM 1
Prior to lighting the unit, make sure all gas valve knobs are in the “Off” (0) position, proceed when all gas valves are
closed. If your appliance is equipped with a hood, make sure the hood is in the raised open position. It is extremely
important that the main burners are properly installed in the appliance and the main burner orifices are properly mounted
and aligned with respect to the main burners. The main burners should be secured properly on each end, and the main

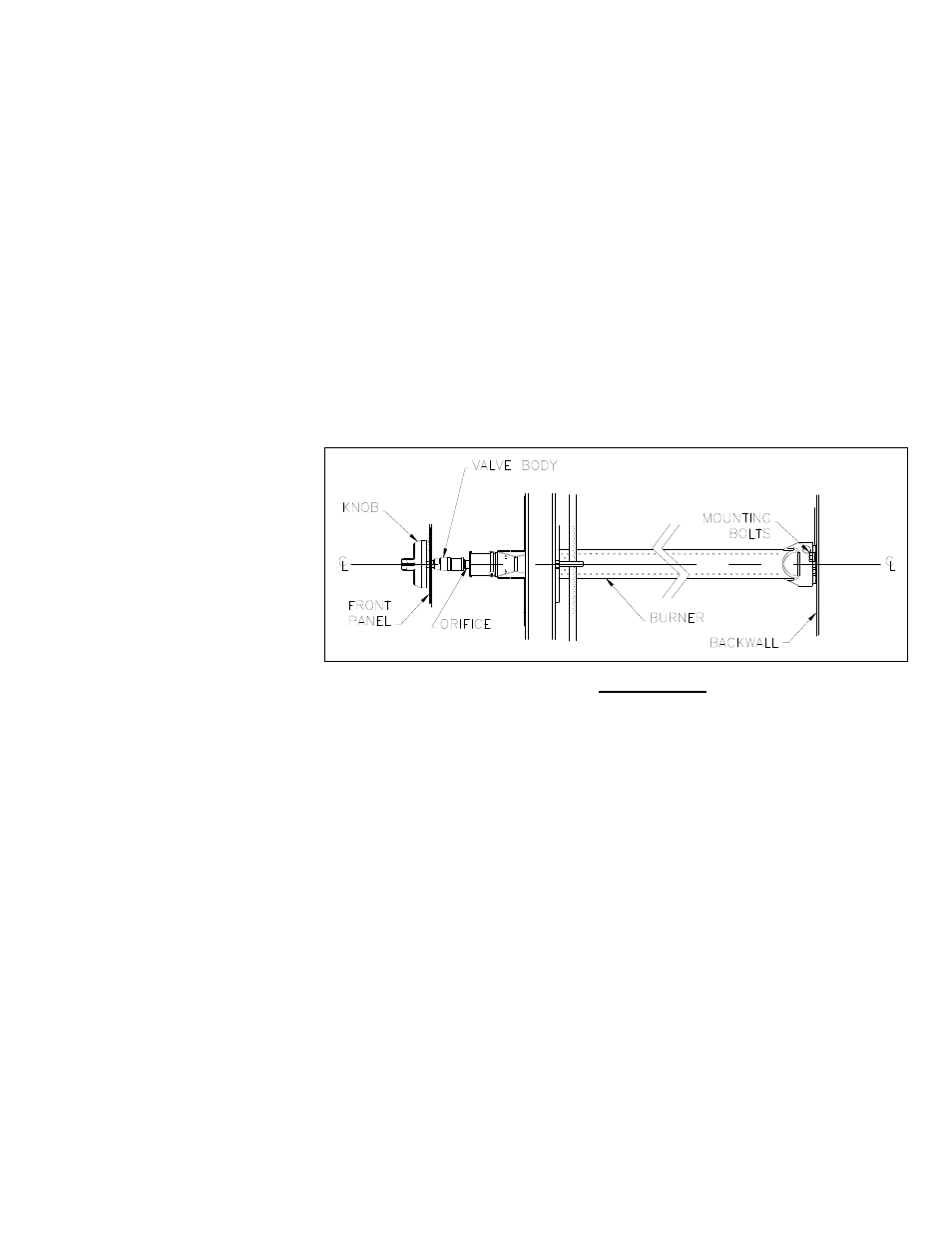

burner orifice installed into the burner correctly, see diagram 1. The orifice should be perfectly centered and pointing
straight into the burner tube. Improperly installed orifice tips or main burners may cause poor performance or an unsafe
condition. If you have any questions concerning the burner or orifice installation, contact a qualified service company, or
the MagiKitch’n factory for further assistance.
A. Open the gas supply valve on the propane cylinder (2). Turn the pilot gas valve (3) to the “On” (I) position. Depress the
runner tube spark igniter button (6) until the pilot runner tube is lit, you should hear a prominent “clicking” sound.
Note: If there is no clicking sound emitting from the spark Ignitor it may be an indication that there is no battery in
the unit, or the battery has no charge.
B. Verify that the pilot runner tube has ignited with flame by looking through the sight hole (11). This hole can also be
used to light the runner tube with a lit match or grill lighter. Check that the entire runner tube is lit. If the runner tube(s)
will not light or stay lit, shut off the gas supply and do not use the unit. Wait 5 minutes before attempting to re-light the unit.
C. Once flame is verified at the pilot runner tube, open the desired main burner valve (4) to the “On” (I) position and
verify that the burner lights prior to lighting the next burner. Each runner tube will light up to four (4) main burners.
After each burner is lit, the control knob can be changed from Hi to Low as desired, see diagram 2.
Warning
If the runner tube(s) or burners fail to light or remain lit, shut off the gas supply and discontinue use of the unit. Call a
qualified service company to correct the problem.
